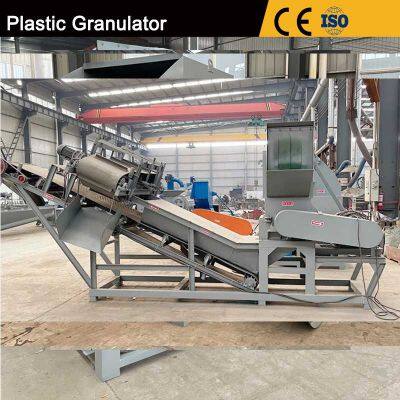

Plastic Shredder Granulator Plastic Bottle Washing Recycling Machine Recycling Plant
≥1 Set
- 0 Set / Sets per Month
- QINGDAO
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
-
Plastic Bottle Recycling Machine Recycling Machine Film Washing Line
-
Plastic Recycling Machine Plastic Recycling Plant Plastic Recycling Line
-
Bottle Recycling Machine Washing Line
-
Plastic Washing Machinery Plastic Recycling Machine
-
Plastic Pet Bottle Film Washing Recycling Line Recycling Machine
-
Plastic Bottle Recycling Machine
Product Details
| Certification | ISO, CE | Warranty | 2 year | |
| After-sales Service | engineer ready to serve | Screw | Other | |
| Automation | Automatic | Knife Type | Piece Knife Crusher | |
| capacity | 300-400KG/H | area | 15㎡ | |
| power | 52KW | loading time | 15 days | |
| Transport Package | 20GP | Specification | WL-T300 TURBO | |
| Trademark | WALLE INDUSTRY | Origin | CHINA |
Product Description
Product Description
Application Scope:
Large appliance housings
Automotive bumpers
Injection-molded products
Product Advantages:
High-strength, customizable main shaft rotors. The main shaft rotors are constructed from high-strength welded steel with a unique V-shaped design. All main shafts undergo rigorous dynamic and static balancing tests to ensure reliable machine operation. Customized main shaft designs can also be provided to meet specific material requirements.
External bearing housing. The bearing housing is mounted on the exterior of the machine body, with the spindle and housing sealed by a seal ring to prevent shredded material from entering the bearings, thereby extending bearing lifespan.
Hydraulic opening/closing mechanism. The upper and lower machine housings and screen frame are equipped with hydraulic opening/closing mechanisms, facilitating machine maintenance and the replacement of blades and screens.
Blade replacement safety device. During blade replacement, the spindle rotor is secured to facilitate blade replacement. Simultaneously, the circuit is disconnected to prevent accidental operation of the machine, ensuring personnel safety.
Product specifications:
| model | WLC600/350 | WLC600/450 | WLC800/450 | WLC800/600 | WLC1000/600 | WLC1200/600 |
| chamber(mm) | 600 | 600 | 800 | 800 | 1000 | 1200 |
| rotation diameter(mm) | 350 | 450 | 450 | 600 | 600 | 600 |
| speed(rpm) | 580 | 580 | 580 | 520 | 520 | 520 |
| blades qty(PCS） | 2x3 | 2x3 | 2x3 | 2x5/2x7 | 2x5/2x7 | 2x5/2x7 |
| fixed blades qty (PCS） | 2 | 2 | 4 | 4 | 4 | 4 |
| power(KW） | 22 | 30 | 37 | 55 | 11/15 | 5/6 |
| hydraulic (KW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | |
| screen(mm） | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
| feeder size(mm） | 450x600 | 530x600 | 530x800 | 705x800 | 800x1000 | 850x1200 |
| (L*W*H）(mm） | 1650x1370x1950 | 2000x1550x2550 | 2000x1750x3150 | 2100x1750x3200 | 2300x1950x3350 | 2300x2150x3350 |
| weight(kg） | 1800 | 2600 | 3100 | 3500 | 4500 | 5500 |
