Refrigerator Crushing Recycling Line

FOB Price

USD $18600

≥1 Set

Supply Ability 0 Set / Sets per Month
Port QINGDAO
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	ISO, CE	Warranty	2 year
After-sales Service	engineer ready to serve	Screw	Other
Automation	Automatic	Knife Type	Piece Knife Crusher
capacity	300-400KG/H	area	15㎡
power	52KW	loading time	15 days
Transport Package	20GP	Specification	WL-T300 TURBO
Trademark	WALLE INDUSTRY	Origin	CHINA

Product Description

Basic Info.

Model NO.

wL-1200

Automation

Automatic

Certification

ISO, CE

Screw

Multi-Screw

Knife Type

Flat Knife Crusher

Recycling Product

Washing Machine, Refrigerator, Computer, Television

Appliance

Home Appliance

Recycling Rate

99%

Recovery Method

Physical

Capacity

as Customer Requirement

Power Consumption

185 Kw

Area

17500*4500*5000 mm

Operators

2/Shift

Wastage

Zero Emmission

Transport Package

Standard Package

Trademark

WALLE INDUSTRY

Origin

China

Production Capacity

10set/Month

Product Description

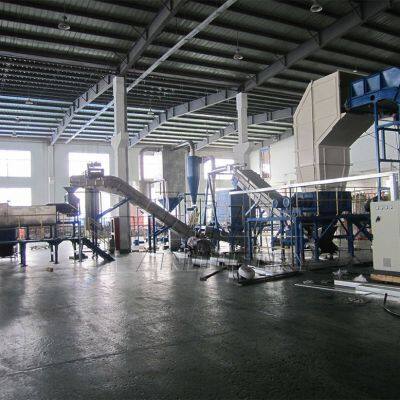

Waste Refrigerator Recycling machine is used to different kinds of the material of home applaince, such as the refrigerator, washing machine, air conditioner. through the pre- shredder, vertical hammer mill shredder, overband magnetic separator, and eddy current separator, also the air gravity separator , impulse dust collector etc.

The processing as below:
1. Dismantling maachine
The roller dismanting machine could be as the motor diriving the roller forwarding or the non motor forwarding by manual.
length of the dismnantling platform decided the capacity. to protection the environment, there is equipped with the impulse dust collector. meanwhile. the compressor drilling machine has been used to this line to get the pure oil wastage.
through the dismantling you could get the refrigerant , compressor shell, wastage oil, and other high valve material.

2. Hydraulic assist pressing machine to help fast feeding the material to the shredding system.

type	power	chamber size	reducer type	dimension size	weight
WL-1000	37kw*2	1000*788mm	ZSY355	326013002370 MM	6500 kgs
WL1200	45kw*2	1200*1188mm	ZSY355	400025002400 mm	8000 kgs
WL-1400	55kw*2	1400*1188 mm	zsy400	4900020002700mm	12000 kgs

3. Hydrualic hammer mill shredder

Hmamer mill shredder used to crush the material and sort the material from outlook. the impulse jet dust collector and cyclone has been fit. to collect the sponge.

type	working chamber mm	bale size	capacity	Main power kw
Y125	1200700600	300*300	1.5T/H	18.5
Y160	16001000700	400*400	2-3t/h	22
Y200	18001200750	450*450	3-4t/h	30
Y250	20001750800	500*500	5-6t/h	2*22kw
Y315	25002000900	600*600	6-8t/h	2*37kw
Y400	30002000950	600*600	10-12t/h	2*45kw
Y600	350025001000	600*600	15-20t/h	2*45kw

4. Eddy current separator
To sort the non ferrous metal from plastic. the efficiency is higher.

Type	pump motor	vibration motor	belt conveyor motor	capacity m3/h	dimension mm	weight
WL-800	7.5	150w*2PCS	1.1 kw	1-3	510012201900	1450 kgs
WL-1200	11	250w*2PCS	2.2 kw	3-5	570016802180	1780 kgs
WL-1500	11	250w*2PCS	2.2kw	5-7	570020402180	2130 kgs
WlL-2000	15	250w*2PCS	3kw	7-10	570026802540	2890

1. where is your factory location ?
Zhengzhou city,Henan province
2. How about the after selling service
The engineer team will be dispatched to assist installing the equipment at customer side. The trainning, operation skill will be learned free of charge.
3. Where is your agent ?
we do not have setting any agent abroad.
