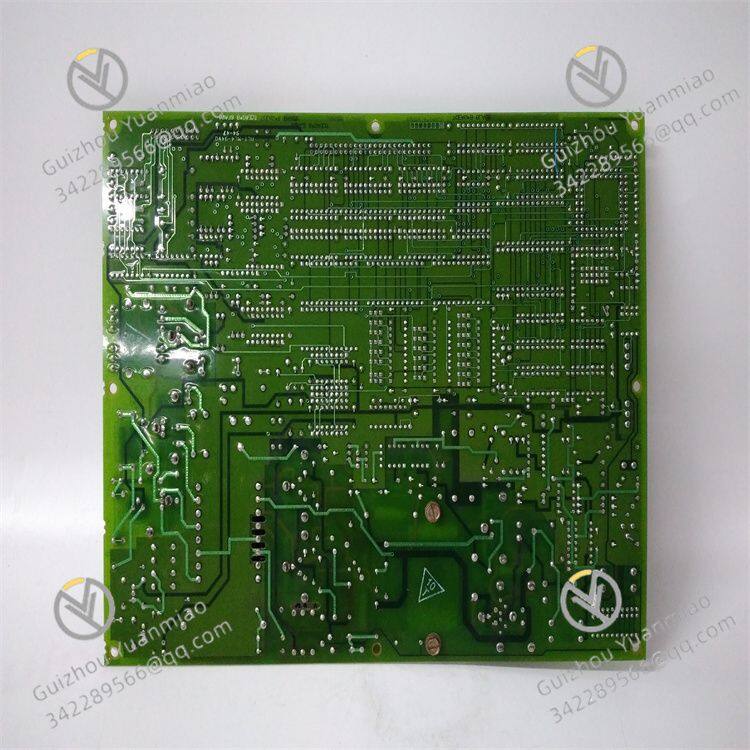

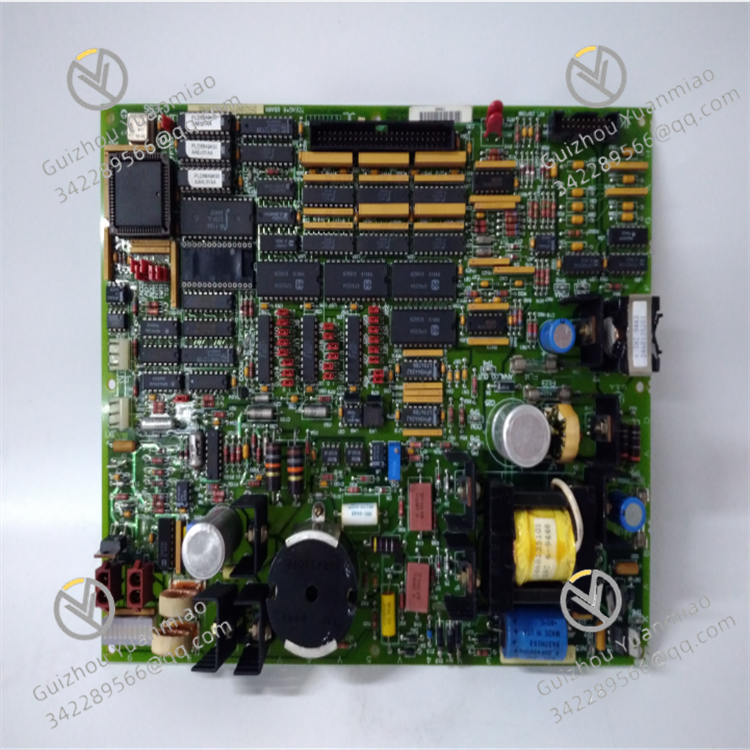

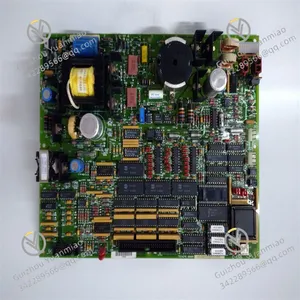

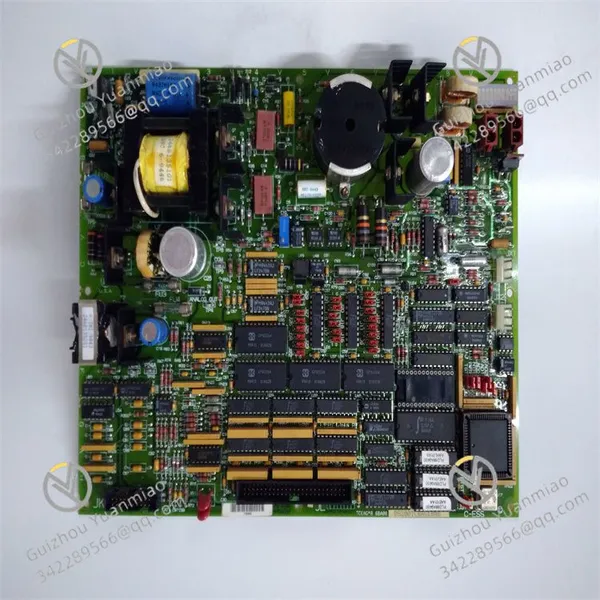

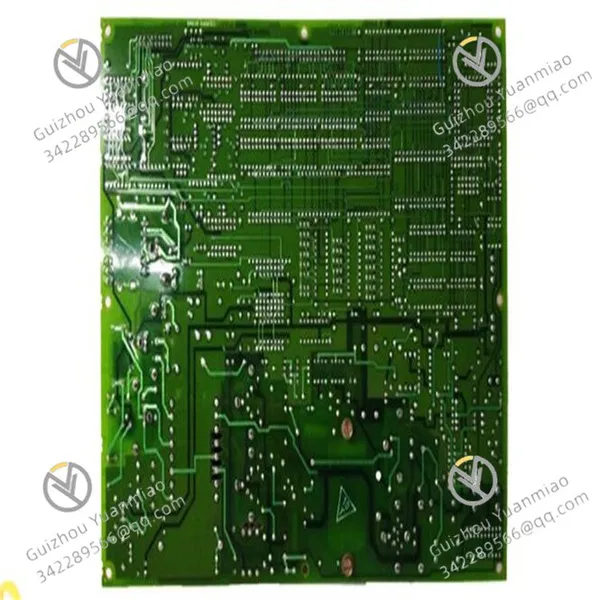

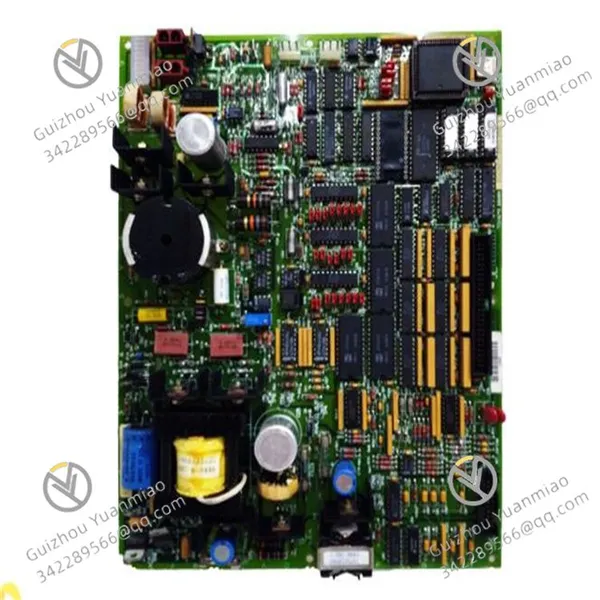

DS200TCEAG1BNE Overspeed Protection Board

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

DS200TCEAG1BNE is an emergency overspeed protection board produced by General Electric (GE), belonging to the GE Mark V series. Here are its detailed information:
Product Features:

High-performance Microprocessor: Adopts a high-performance microprocessor that can quickly respond to rotational speed changes, ensuring real-time performance and accuracy.
Programmable Function: Equipped with multiple Programmable Read-Only Memory (PROM) modules. Users can program the PROM according to actual needs to achieve customized overspeed protection functions.
Reliable Overspeed Detection: Can continuously monitor system speed and activate safety measures when the speed exceeds a predetermined threshold, such as cutting off fuel supply and initiating emergency stop procedures. It provides reliable overspeed detection and response to ensure safe operation of equipment.
Easy Installation and Integration: Features a bayonet connector design, facilitating connection with other equipment and boards. It supports various installation and integration methods, can be easily installed into existing systems, and has good compatibility with GE control systems.
High Reliability and Durability: Uses high-quality components and designs, suitable for various harsh industrial environments such as high-temperature, high-humidity, and vibrating environments, ensuring long-term stable operation.

Power Supply Voltage: 24V DC.
Power Consumption: Typically 5W, maximum 10W.
Operating Temperature: -20°C to 60°C, and some data show -40°C to 85°C.
Storage Temperature: -40°C to 85°C, and some data indicate -55°C to 90°C.
Humidity: 5% to 95% non-condensing.
Communication Interface: RS-232, and some data show support for standard protocols such as Modbus TCP/IP.
Dimensions: Approximately 160mm x 100mm x 40mm, with slight differences in data from different sources, including 100mm x 50mm x 25mm or 220mm x 160mm x 60mm.
Weight: Approximately 1.5kg or 2kg, with variations in records from different materials.
Measurement Range: 0-100%.
Measurement Accuracy: ±0.5%.
Output Signals: Analog and digital signals, capable of outputting relay signals, etc.
Protection Rating: IP65.

Functions and Applications: Mainly used to detect and handle overspeed conditions of rotating equipment such as gas turbines. When the rotational speed of the equipment exceeds the preset value, DS200TCEAG1BNE will issue an alarm and take measures to reduce the rotational speed to prevent equipment damage. It is widely used in industries such as electric power, oil and gas, shipping, and aerospace.
