Henan Walle Industry Co., Ltd: 1Yr

Zhengzhou, Henan, China; Main products: Solid waste disposal, wood chipper, WEEE recycling, Double shaft shredder

Home > Products > tire recycling > Double Shaft Shredder/Tire Shredder/Scrap Metal Shredder

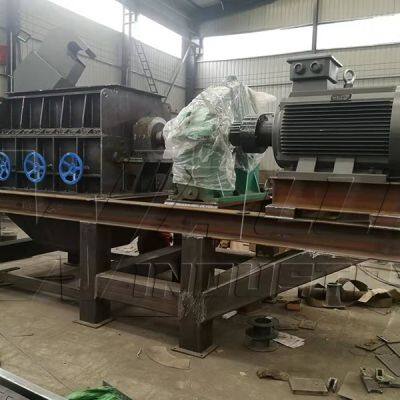

Double Shaft Shredder/Tire Shredder/Scrap Metal Shredder

FOB Price

USD $18600

≥1 Set

Supply Ability 0 Set / Sets per Month
Port QINGDAO
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Certification	ISO, CE	Warranty	2 year
After-sales Service	engineer ready to serve	Screw	Other
Automation	Automatic	Knife Type	Piece Knife Crusher
capacity	300-400KG/H	area	15㎡
power	52KW	loading time	15 days
Transport Package	20GP	Specification	WL-T300 TURBO
Trademark	WALLE INDUSTRY	Origin	CHINA

Product Description

Basic Info.

Model NO.

WL-1200

Service Life

≥15 Years

Certification

CE, ISO

Voltage

380V

Structure

Horizontal

Capacity

500-3000kg/H

Type

Double Shaft

Power

55+55

Cutter Material

H13 9sicr

Chamber Size

1200*1188

Fineness Controller

with Rotary Screen

Appliance

Tire Diam,Under 1200mm

Usage

Rough Crushing

Reducer

355 or Planetary Type

Cutter Diam

550 mm

Cutter Thickness

50mm

Outcomes

50*80 mm

Teenth

3PCS

Weight

8000 Kgs

Operator

Semi/Auto

Transport Package

Standard Package

Trademark

walle industry

Origin

China

HS Code

8479820090

Production Capacity

10set/Month

Packaging & Delivery

Package Size

550.00cm * 200.00cm * 200.00cm

Package Gross Weight

12000.000kg

Product Description

Robust durable tyre wire bundle recycling machine waste tire shredder OTR tire recycling machine

The whole tire recycling plant will be controlled by the PLC, all the materials will be process inside of machines, there is REAL ZERO

POLLUTION. 1 labor, 1 engineer can operate all the machines, no need to operate the machines, just control the PLC. the machines can protect the machines, work the machines and keep the machines work smoothly.

Double shaft tire shredder recycling machine including the under :

1. truck tire debeader
To remove the steel wire from the beader.

2. Tire shredder machine
The tyre shredder mahcine is assembled with the replaceable cutter, to save offtime . improve the efficiency of working, meanwhile,
the discharge size is controlled by the rotorary screen.

3. Tire rasper
To remove the less and thin steel wire from the rubber.

4. rubber mulch machine
to grind the rubber material from 1-9 mm.
meanwhile, there is fit with the Nylon collection device and dust purify system.

5. swing vibration table

To sort the different size material. meanwhile, there is set with the ton bag collector.

The whole system is equipped with the filter bag dust collection system to control the dust.

1. Full automatic just operate the PLC controller of cabinet.
2. there is no dust pollution during processing.
3. integrated type to save the space
4. energy saving 1/3 than traditonal type.
5. detachable cutter, modular working chamber, fast the rapid of maintain.

Type	power	Cutter Qty PCS	reducer	chamber mm	feeding port	overall size mm	weight T	capacity (T/h)
WL-800	15kw*2	30	400	600*388	1000*766	18208001930	2.1	0.5-0.8
WL-1000	22kw*2	20	500	640*588	1170*990	326013002370	3.5	1-1.5
WL-1200	37kw*2	30	355	1200*788	1600*1200	470020002700	8	2.5-3
WL-1500	55kw*2	30	400	1500*1188	1900*1450	500022002900	18	8-10.
WL-1800	75KW*2	36	400	1800*1188	2300*1450	530021503000	20	12-15.
WL-2000	90kw*2	24	450	2000*1188	2300*1500	540021503000	25	20-25.
WL-2200	110kw*2	28	240	2200*1578	3100*2500	620027003500	33	26-30
WL-2400	132kw*2	24	240	2400*1678	3200*2600	730028003800	38	30-35.
WL-2800	185kw*2	28	260	2800*2000	3700*3000	780028003800	45	35-40
