Description:
Mold Cavity |
1+1 Cav. |
Mold Steel |
S136 |
Mold Standard |
HASCO |
Surface Finishing |
Mirror Polishing |
Gate |
Yudo Hot Nozzle* 3 Points |
Mold Life |
One Million shots |
Mold Dimension & Weight |
700*830*750 mm, 2200kgs |
Injection Machine Tonnage |
380T |
Part Material |
ABS |

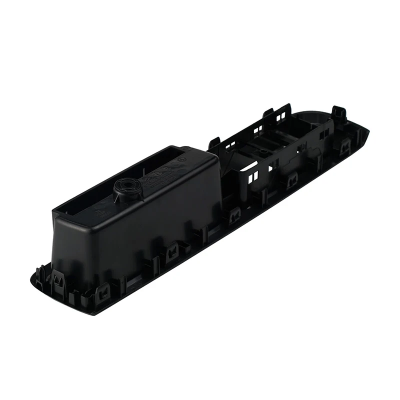

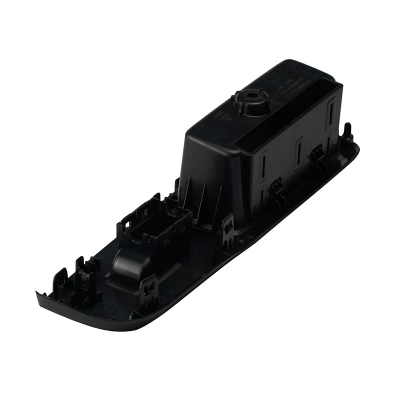

Plastic Auto Door Switch Panel Injection Mold Design-Multiple ribs and boss
This car door panel switch mold boasts a intricate design featuring numerous ribs and bosses, which inherently complicates the mold structure. However, leveraging our extensive experience in crafting sophisticated injection molds, we adeptly navigate this complexity to optimize the mold design. Our proficiency ensures that we can perfect the design to facilitate the most efficient mold manufacturing process. The result is a meticulously engineered mold that upholds the highest standards of precision and functionality, underscoring our commitment to excellence in mold-making for complex product geometries.

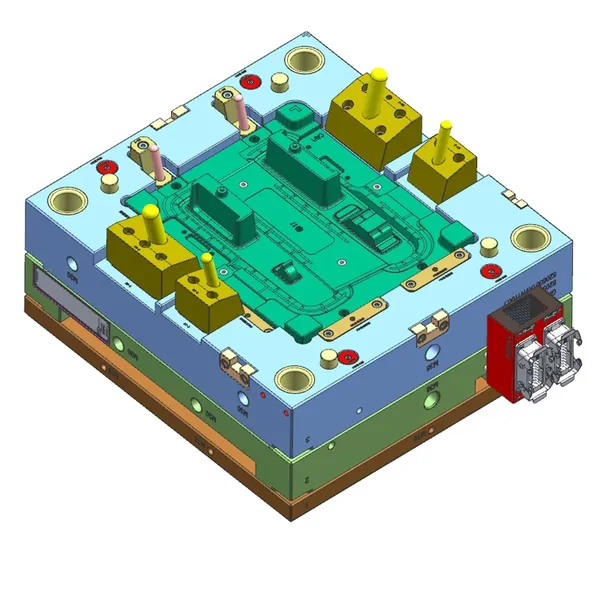

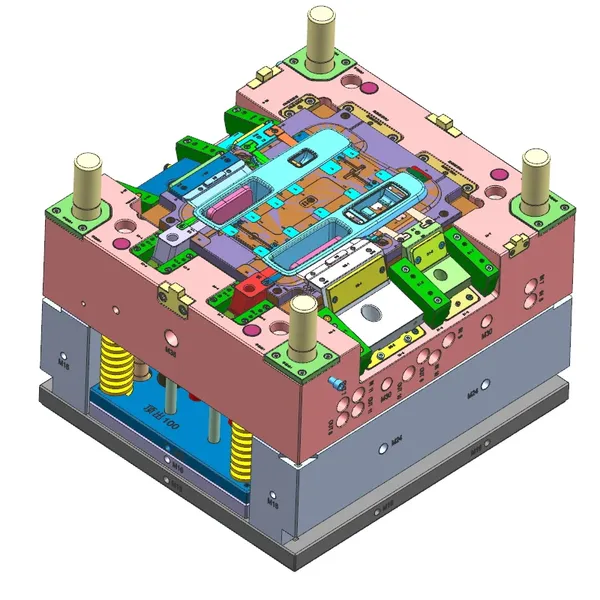

Complicated mold structure and exquisite craftsmanship
This sophisticated automotive door panel switch panel mold, constructed from S136 steel and heat-treated to a hardness of 48-52HRC, showcases our technical mastery. The mold's design is complex, with many angled lifters and oblique ejector pins, ensuring stability and reliability during injection molding and smooth ejection. The adoption of a 3-point YUDO hot nozzle to cold runner system optimizes material flow balance, leading to consistent production and high quality. With an extended lifespan and capability for automated production, this mold exemplifies our commitment to precision engineering and innovative solutions that meet the rigorous demands of the automotive industry.
Mirror polishing surface
This car door panel switch panel mold is meticulously crafted with a mirror polishing technique, SPI-A1 grade, ensuring a high-gloss finish on the product surface. The superior quality is maintained by ensuring that under reflective conditions, there are no shrinkage marks visible, which could detract from the overall appearance. The high standards of quality control demand a flawless, mirror-like reflection that not only enhances the visual appeal but also underscores the precision and care taken in the manufacturing process. The absence of shrinkage marks is a testament to the meticulous attention to detail and the rigorous quality assurance measures in place, making this product a mark of excellence in the automotive industry.
