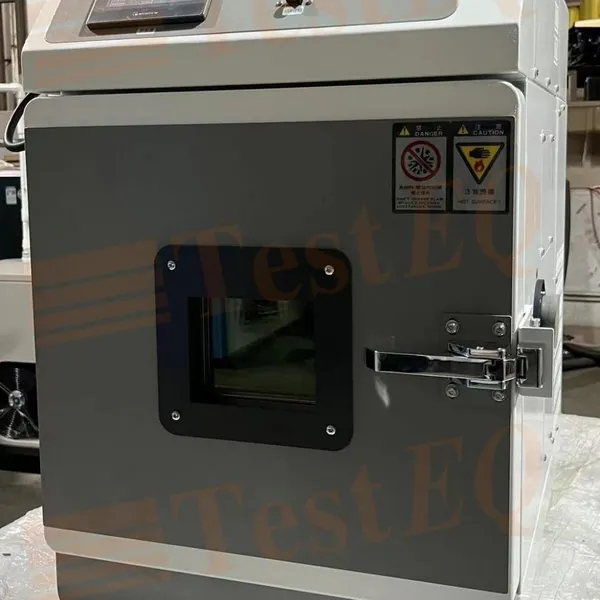

Desktop Temperature and Humidity Test Chamber

Box structure

The box is precisely manufactured by a CNC machine, presenting a beautiful and elegant design. It also features a non-reversing handle for easy operation. The inner liner of the box is made of imported high-grade stainless steel (SUS304) mirror plate, while the outer liner is made of A3 steel plate coated with plastic, which enhances the appearance texture and cleanliness. The water replenishment tank is placed at the lower right part of the control box and has an automatic water shortage protection function, making it more convenient for the operator to replenish water. The large observation window is equipped with a lighting lamp to keep the box interior bright. It also uses a heat-emitting embedded tempered glass to allow for clear observation of the inside of the box at any time. The humidification system pipeline is separated from the control circuit board, which can prevent faults caused by leakage in the humidification pipeline and enhance safety. The waterway system and pipeline circuit system are convenient for maintenance and repair. The box body is insulated with ultra-fine glass fiber insulation cotton, which can prevent unnecessary energy loss. On the left side of the box, there is a test hole with a diameter of 50mm, which can be used for connecting external test power cables or signal cables.If you need more models about our test equipment, please reference our ：chamber-testing（point）com

Benchtop environmental test chambers Capacity: 22.5 to 64L

Temperature Range：-65℃ to +150℃

Temperature Fluctuation：≤ ±0.5℃

  Temperature Deviation：≤ ± 2.0℃

Humidity Range： 20% to 98%R.H

Humidity Deviation：± 3.0% RH(>75%RH)

Noise test：≤ 68dB
