Home > Packaging & Printing > Packing Machinery > Gluing Machine > Automatic Two Components Epoxy Glue Potting Machine Withauto Mixing, Degassing , Stirring and Dispensing System

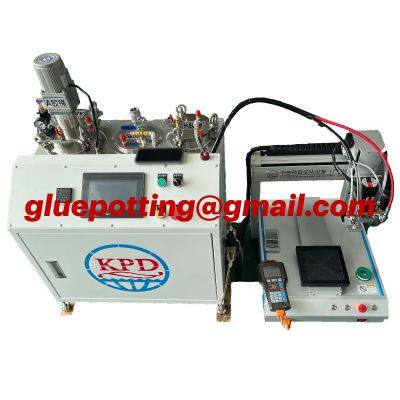

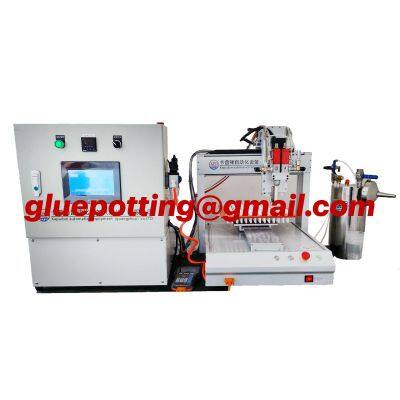

Automatic Two Components Epoxy Glue Potting Machine Withauto Mixing, Degassing , Stirring and Dispensing System
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
After-sales Service:
whatsapp+86 134 2516 4065
Glue Type:
Other, two component PU silicone epoxy
Transport Package:
whatsapp+86 134 2516 4065
Payment & Shipping
Payment Methods:
Port of Shipment:
Whatsapp 0086 134 2516 4065
Delivery Detail:
7 days
Related Products
-
2K Meter Mix Dispensing Machine 2K Resin Potting Machine 2k Glue Dosing Machine 2k Dispenser 2k Pouring MachineNegotiableMOQ: 1 Piece -
AB Polyurethane Potting Machine 2K DOS Mixing Machine ab Glue Dot Dispenser MachineNegotiableMOQ: 1 Piece
-
Automatic Glue Dispensing Robot Arm Resin Glue Gun Dispenser AB Glue Dispenser Machine for Epoxy Silicone ResinNegotiableMOQ: 1 Piece
-
3 Axis Automatic Liquid Glue Application Machine Glue Potting Machine Mixer Machine Dispenser For Emc FiltersNegotiableMOQ: 1 Piece
-
Silicone Epoxy Resin Glue Dispensing Mixing Potting Filling Machine Label Badge Making LED PCB Dynamic Mixing MachineNegotiableMOQ: 1 Piece
After-sales Service
whatsapp+86 134 2516 4065
Glue Type
Other, two component PU silicone epoxy
Transport Package
whatsapp+86 134 2516 4065
Specification
whatsapp+86 134 2516 4065
Trademark
whatsapp+86 134 2516 4065
Origin
whatsapp+86 134 2516 4065
Product Description
two-component resin automatic metering/mixing/dispensing machine. This system is using servo motors, high-precision metering valves and PLC control mode and this is specially designed for low and medium viscosity resins. (such as epoxies, urethanes, silicones and acrylics) Our system is suitable for potting of abrasive and high-viscosity materials in PCB, Electric parts, Motors, EV motors, LED and others applications. We specialize in providing solutions for high viscosity materials supplying.
Specification
Strong versatility / Multiple configuration / High production capacity / High precision
* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
* Auto feeding :take use of vacuum pressure to feed materials into A&B tank separately.
* Tank Stirring :A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
* Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
* Vacuum : A &B tank vacuum for degas the bubble inside material .
* Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
* Auto cleaning: after using the machine to provide the machine mixing pipe cured inside, use this function can easily rush the mixing pipe dirty mixed AB resin out
System Introduction：
1. Working Mode: controlled by PLC module and MCGS touch screen.
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle ：
2.High precision valve: high speed, glue off clean, no glue drawing, no dropping.
3. Core metering pump specially design for different material from low to high viscosities.
4. Mix glue A & B more evenly; no more or no less for agent B.
Working principle ：
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.
Tank system technology：
1. Stainless panel vacuum pressure tank which can bear negative pressure of inner tank .
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
2. Tank with motor stirrer that prevent the glue from sediment and keep the potting material in constant temperature.
3 Tank with top/ high /low liquid sensors that ensure alarm warning when liquid higher or lower the setting level .
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization
4 Tank with vacuum degas (degas time can be set through touch screen), so the material can be re-feeding through vacuum negative pressure .
5 Tank with pressure releasing ball valve ; the bottom of tank reserved back-flow connector and river closure ball valve.
6 Tank with heater which can preheat materials to assure good flowability .
7 Tank with artificial feeding mouth that can be added glue appropriately by hand .
8 Tank with silica-dryer which can prevent material especially PU from crystallization
Self-Cleaning：
Turn the cleaning ball valve to the liquid position;
1. The cleaningswitch points to "air" and uses compressed air to discharge most of the mixturein the mixing tube;
2. The cleaningswitch points to "liquid". If there is a dynamic mixing motor, turn on the dynamic mixing motor before changing the clean switch;
3. After cleaning, the cleaning switch points to "air" and usescompressed air to clear the cleaning liquid in the mixed tube;
4. The cleaning switch points to the middle positiononce finished.
1. The cleaningswitch points to "air" and uses compressed air to discharge most of the mixturein the mixing tube;
2. The cleaningswitch points to "liquid". If there is a dynamic mixing motor, turn on the dynamic mixing motor before changing the clean switch;
3. After cleaning, the cleaning switch points to "air" and usescompressed air to clear the cleaning liquid in the mixed tube;
4. The cleaning switch points to the middle positiononce finished.
Our Pump-Gear Pump
A gear pump is a type of positive displacement (PD) pump. It moves a fluid by repeatedly enclosing a fixed volume using interlocking cogs or gears, transferring it mechanically using a cyclic pumping action. It delivers a smooth pulse-free flow proportional to the rotational speed of its gears.
Our pump- Screw pump
A screw pump is a type of positive displacement pump that uses screws to move fluid. These pumps are known for their ability to handle viscous fluids and maintain flow rates even when the fluid's viscosity changes. Screw pumps typically use two or more screws that intermesh or have opposing threads
Our mixing valve
1 Dynamic mixing with stirring detecting function that ensure glue mixing evenly . 2 Stainless design of the glue touch surface to capture more higher material compatibility . 3 Glue valve with flow-back prevent function that can prevent glue from dropping when stop gluing . 4 Sealing parts of rod shaft adopt imported parts to keep more higher durability . 5 The self-cleaning function make machine cleaning more easier that you needn’t dis-assembly the parts to wash . Cleaning time and cleaning times could be set in the touch screen.
Other Sucessful cases ：
1. Potting &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil,reverse sensor,circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace ...
2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid
filling ....
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....
Our machine solutions suitable for all kinds of epoxies , pu ,epoxies fluids for different application , anyindustials products
that needs to apply fluids can use our machine to get good performance .
2. Dispensing&Dosing: LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid
filling ....
3. Bonding&doming: LCD screen ,LOCA bonding，ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....
Our machine solutions suitable for all kinds of epoxies , pu ,epoxies fluids for different application , anyindustials products
that needs to apply fluids can use our machine to get good performance .
Company Profile
The two-component Mixing and Dispensing System accurately meters, mixes and dispenses two-component materials like potting compounds, encapsulants, casting materials and adhesives. The two components are precisely metered using gear pump technology, programmable from a simple control panel. The mix ratio, dispensing rate and dispensed quantity can be set-up quite accurately, providing consistent, error-free metering, mixing and dispensing. The control panel is menu-driven and password protected.
Our machine is designed with a unique modular approach, for simple configuration and maintenance. Each machine is built to match your material and process, with appropriate material reservoir sizes and dispensing hose lengths. Reservoir options include agitation, heating and drying (the latter for moisture sensitive materials like polyurethanes).
Material is fed from the two integrated gravity-fed reservoirs through the gear pumps where it is accurately metered, through flexible hoses to a dispensing head. Industry standard static mixing nozzles/ dynamic mixing are used for homogeneous mixing. The mixture is free of air bubbles.
This metering, mixing and dispensing system is configured for standalone operation, triggered by a fingertip switch or foot pedal.
It can also be configured to work with automation for consistently dispensed amounts and accurate placement.
The Metering, Mixing and Dispensing System is able to process a number of materials including silicones, polyurethanes andepoxies.
Our machine is designed with a unique modular approach, for simple configuration and maintenance. Each machine is built to match your material and process, with appropriate material reservoir sizes and dispensing hose lengths. Reservoir options include agitation, heating and drying (the latter for moisture sensitive materials like polyurethanes).
Material is fed from the two integrated gravity-fed reservoirs through the gear pumps where it is accurately metered, through flexible hoses to a dispensing head. Industry standard static mixing nozzles/ dynamic mixing are used for homogeneous mixing. The mixture is free of air bubbles.
This metering, mixing and dispensing system is configured for standalone operation, triggered by a fingertip switch or foot pedal.
It can also be configured to work with automation for consistently dispensed amounts and accurate placement.
The Metering, Mixing and Dispensing System is able to process a number of materials including silicones, polyurethanes andepoxies.
