Home > Electrical & Electronics > Electrical Control System > 3BSE008510R1 DO810 Digital Output Module

3BSE008510R1 DO810 Digital Output Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

3BSE008510R1 DO810 Digital Output Module thumbnail-1

3BSE008510R1 DO810 Digital Output Module thumbnail-2

3BSE008510R1 DO810 Digital Output Module thumbnail-3

3BSE008510R1 DO810 Digital Output Module photo-1

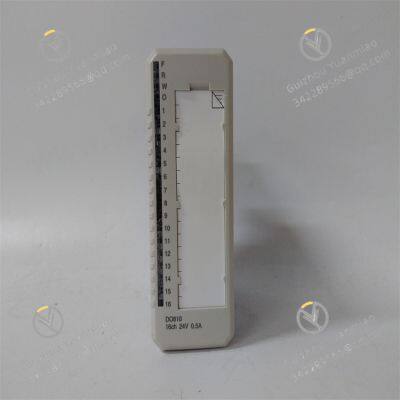

3BSE008510R1 DO810 Digital Output Module photo-2

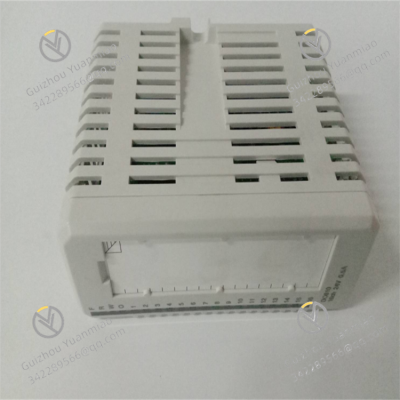

3BSE008510R1 DO810 Digital Output Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

3BSE008510R1 DO810 is a digital output module in ABB's AC 800M series, primarily used in industrial automation control systems to output discrete control signals to external actuators (such as relays, solenoid valves, contactors, etc.). The following is detailed information compiled based on public data:

Product Overview

The DO810 (model 3BSE008510R1) is a key I/O module of the ABB AC 800M PLC system. Designed for industrial environments, it provides highly reliable digital signal output functionality, serving as a critical interface between the control system and on-site executive equipment. It is widely used in process control, manufacturing automation, and other fields.

Technical Parameters

Parameter	Details
Number of Output Channels	16 independent digital output channels
Output Type	Transistor output (suitable for DC loads)
Rated Output Voltage	24V DC (typical value, compatible with industrial standard DC power supplies)
Max Output Current per Channel	0.5A (resistive load); 0.3A (inductive load, external freewheeling diode protection required)
Total Max Output Current	4A (current limit when all channels are operating simultaneously)
Isolation Method	Channel group isolation (8 channels per group, electrical isolation from backplane and other groups, isolation voltage 2.5kV rms)
Response Time	Output turn-on delay ≤1ms, turn-off delay ≤1ms
Operating Temperature Range	0°C to +55°C (operation); -40°C to +70°C (storage)
Protection Rating	IP20 (suitable for installation inside control cabinets)
Dimensions (W×H×D)	100mm × 160mm × 80mm (compatible with standard rail mounting dimensions of the AC 800M series)
Weight	Approximately 0.3kg
Certification Standards	Compliant with CE, UL, CSA, and other industrial safety certifications

Functional Features

High-Reliability Design

Uses industrial-grade components and supports channel group isolation, effectively resisting electromagnetic interference (EMI) and common-mode interference to ensure stable operation in harsh environments.
Equipped with overcurrent protection. When the current of a single channel exceeds the limit, the module will automatically limit the output to avoid damage.

Flexible Configuration and Diagnostics

Supports channel configuration (such as output logic, fault alarm thresholds, etc.) via ABB Control Builder M software.
Built-in diagnostic functions can real-time monitor channel status (such as short circuits, overloads) and feed fault information back to the controller through the backplane bus, facilitating quick troubleshooting.

Easy Integration and Expansion

Directly installed on the I/O rack or DIN rail of the AC 800M system, communicating with the controller through the system backplane without additional wiring.
Can be combined with other I/O modules in the AC 800M series (such as DI810 digital input modules, AI810 analog input modules, etc.) to form a complete control system, meeting diverse I/O requirements.
