Introduction:
In the realm of stainless steel alloys, S32205 stainless steel stands out as a highly versatile and durable material. With its exceptional combination of chemical composition, mechanical properties, and wide-ranging applications, it has become a popular choice in various industries. In this article, we will delve into the details of S32205 stainless steel, exploring its chemical composition, mechanical properties, applications, production standards, and the expertise of ZHONGZHENG a reputable manufacturer with over 20 years of experience.
Chemical Composition: S32205 stainless steel, also known as Duplex 2205, belongs to the duplex stainless steel family, renowned for its superior corrosion resistance and high strength. The chemical composition of S32205 typically includes:
Chromium (Cr): 22-23%
Nickel (Ni): 4.5-6.5%
Molybdenum (Mo): 3-3.5%
Nitrogen (N): 0.14-0.2%
Manganese (Mn): 2% max
Silicon (Si): 1% max
Phosphorus (P): 0.03% max
Sulfur (S): 0.02% max
The presence of these elements imparts exceptional corrosion resistance and mechanical properties to S32205 stainless steel.
2. Mechanical Properties: S32205 stainless steel exhibits remarkable mechanical properties that contribute to its widespread usage. Some key mechanical properties include:Tensile Strength: S32205 offers a minimum tensile strength of 620 MPa (90 ksi).
Yield Strength: It provides a minimum yield strength of 450 MPa (65 ksi).
Elongation: S32205 demonstrates a minimum elongation of 25% in 50 mm.
Hardness: Typically, S32205 has a maximum hardness of 31 HRC.
These mechanical properties make S32205 stainless steel suitable for demanding applications where high strength and corrosion resistance are critical.
3. Applications: S32205 stainless steel finds application in various industries, thanks to its exceptional properties. Some prominent applications include:Chemical Processing: Its resistance to chloride-induced stress corrosion cracking makes it ideal for vessels, tanks, and piping systems used in chemical processing industries.
Oil and Gas: S32205 is widely used in offshore platforms, pipelines, and oil refineries due to its resistance to sulfide stress corrosion cracking and high strength.
Desalination Plants: The alloy's excellent resistance to pitting and crevice corrosion makes it suitable for desalination plants, where it comes into contact with seawater.
Pulp and Paper: S32205 is employed in digesters, bleach washers, and other equipment within the pulp and paper industry due to its resistance to sulfuric acid and chlorine-containing chemical.
4. Production Standards: S32205 stainless steel plates adhere to several production standards to ensure quality and compatibility. Some common standards followed are:
ASTM A240/A240M: This standard specifies the requirements for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications.
ASME SA240/SA240M: It covers the requirements for chromium and chromium-nickel stainless steel plate, sheet, and strip for pressure vessels and general applications under ASME Boiler and Pressure Vessel Code.
EN 10088-2: This European standard provides the technical delivery conditions for stainless steel flat products for general purposes.
Manufacturers like ZHONGZHENG ensure compliance with these production standards to deliver reliable and high-quality S32205 stainless steel plates.
5. ZHONGZHENG: Over 20 Years of Experience: When it comes to sourcing S32205 stainless steel plates, partnering with an experienced manufacturer is crucial. ZYTC is a renowned stainless steel plate manufacturer with over 20 years of experience in the field. Their expertise and commitment to quality make them a trusted supplier for various industries. ZHONGZHENG employs state-of-the-art manufacturing techniques and rigorous quality control measures to ensure that their S32205 stainless steel plates meet the highest standards.Conclusion: S32205 stainless steel plate, with its optimal chemical composition, impressive mechanical properties, and wide range of applications, has become a go-to choice for many industries. Its corrosion resistance, high strength, and durability make it suitable for critical environments. As a reputable manufacturer,ZHONGZHENGbrings over 20 years of expertise to the table, ensuring top-quality S32205 stainless steel plates for diverse industrial needs.
A: ZHONGZHENG is a professional manufacturer of metals and alloy productions and has its own warehouse with more than 30,000 tons capacity. We are working hard to open up the international market. At the same time, we will encounter a variety of purchase orders, In order to meet customer requirements and improve services, we will also distribute some kinds of metal products, of course, our strict procurement management and quality management departments can guarantee excellent quality of all products.
Q: What certificate does ZHONGZHENG have?
A: ZHONGZHENG acquired the ISO 14001 environmental management system certificate, 0HSAS18001 occupational health and safety management system certificate, and ISO 9001 quality management system certificate.
Q: What's your purchasing system?
A: Our procurement system adopts the 5R principle to ensure the "right quality" from the "right supplier" with the "right quantity" of materials at the "right time" with the "right price" to maintain normal production and sales activities. At the same time, we strive to reduce production and marketing costs to achieve our procurement and supply goals: close relationships with suppliers, ensure and maintain supply, reduce procurement costs, and ensure procurement quality.
Q: Who are your cooperate partners?
A: ZHONGZHENG has a very good relationship with world-known factories, such as Baosteel, TISCO, ZPSS, JISCO, ATl, SMC, HAYNES, VDM, ArcelorMittal, etc.
Q: What are your company's payment methods?
A: 30% T/T deposit, 70% T/T balance payment before shipment. More payment methods depend on your choices.
Q: Can you accept small orders?
A: If we have the exact materials in stock, we can deliver even 1 piece. If we don't have the goods in stock, the MOQ is normally 1 ton.
Q: Do you guarantee the safe and reliable delivery of products?

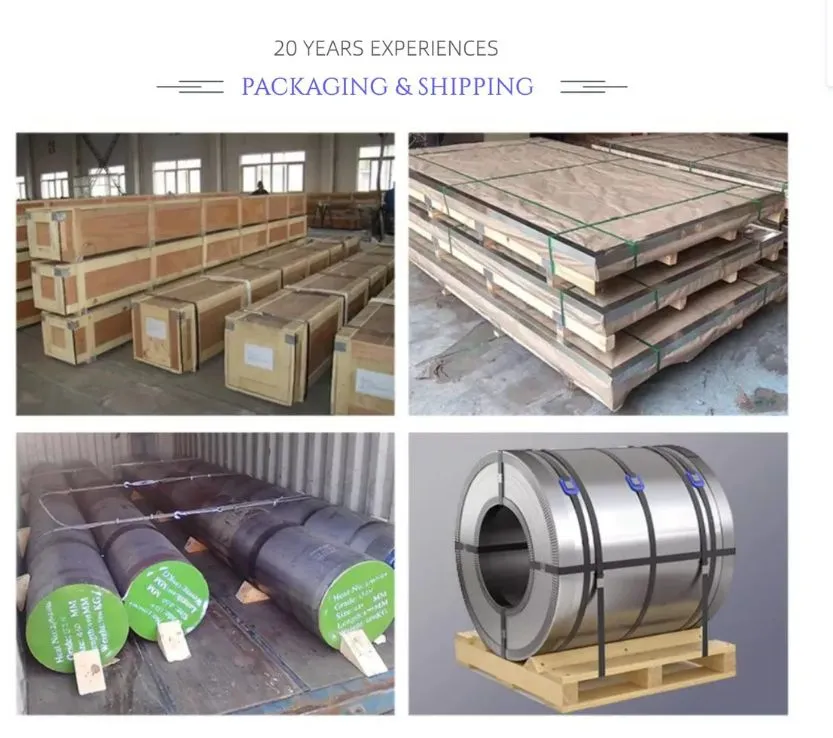

A: Yes, we always use high-quality packaging for shipping. We usually pack the products with a soft material such as polyethylene foam and then pack them in wooden cases to ensure the safety of the product in the process of transportation.
Q: Does ZHONGZHENG provide processing services?

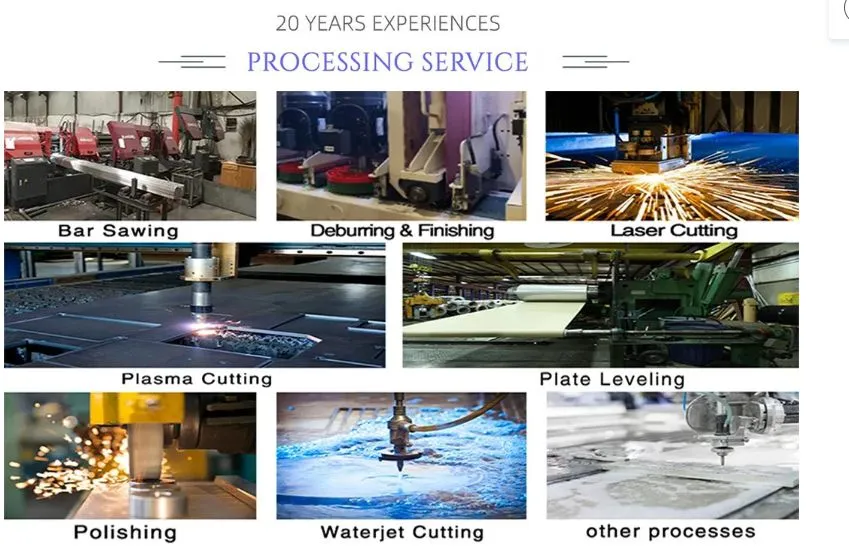

A: Yes, we also provide processing services to the outside world, and providing professional services is one of our goals. Such as bending, water cutting, laser cutting, digging holes, welded, slit coil, and other processing according to the drawings.
Q: How to guarantee the quality?

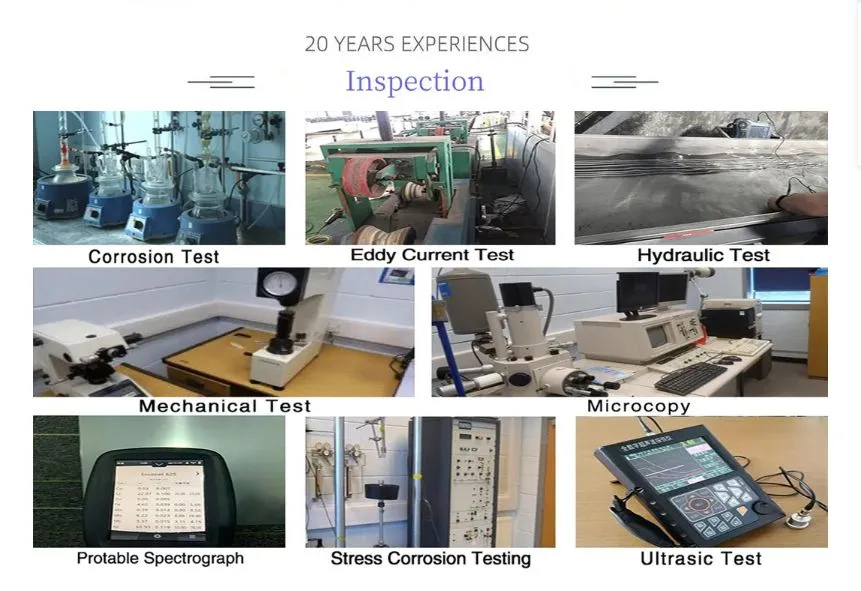

A: Each production procedure will be subject to testing and evaluation. from the very choice of raw materials to the package for shipment. Only the products surviving all the tests are delivered for export.
Q: What if there is a quality problem?
A: We also keep a piece of the sample before shipping. After comparing the buyer's test result, and it turns out to be our problem, we will return the money back and pay for your lost or delivery of qualified materials again.
Q: Can you provide samples?
A: As a professional company, we know that the quality of products is valued by each customer, especially for international trade, we understand the customer's worries, so we can provide samples to customers, and we can ensure the consistency of the quality of samples and batch product products. The sample is free, but the buyer should pay the freight fee. And the freight fee will be returned in the future order.
Q: How about the delivery time?
A: Stock products can be shipped within 3 days. Customized product delivery time is normally 25 working days, but it is also influenced by the specific requirements or the order quantity. Partial shipment is allowed.
