High-Quality Main Shaft Pipe Crusher and Shredder Unit


Home > Industrial Shredder > Single Shaft Shredder

 微信截图_20250628200043微信截图_20250628200227微信截图_20250628200213微信截图_20250628200203微信截图_20250628200156

  • Single Shaft Shredder

  • Single Shaft Shredder

  • Single Shaft Shredder

  •  Single Shaft Shredder

  • Single Shaft Shredder

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

  •

  • Single Shaft Shredder

Single Shaft Shredder
The SR series single shaft shredder is popular size reduction machine used for materials that contain minimal amounts of metal, such as plastic, paper, wood, waste wires and cables. The screen mesh size is determined by material nature and subsequent processing requirements. The shredded particles can then be reused or further processed. An intelligent electric control provides a high degree of machine safety.

Application::Plastic,plastic lump,PET，PC，ABS
Plastic,plastic lump,PET，PC，ABS
Plastic film,PP，PE，
MSW,RDF
Metal,copper,steel,iron,aluminium
Wire and cables
Wood
Glass fiber
Electronic Scrap
Solid waste,Medical Waste
Get the latest quote
Desciption


Single shaft shredders reduce bulky materials into small, consistent particles. The material size is reduced using a pusher system and shingle shaft rotary blades. The particle size is determined by the screen mesh hole size, ranging from 40 to 100mm.

Features:

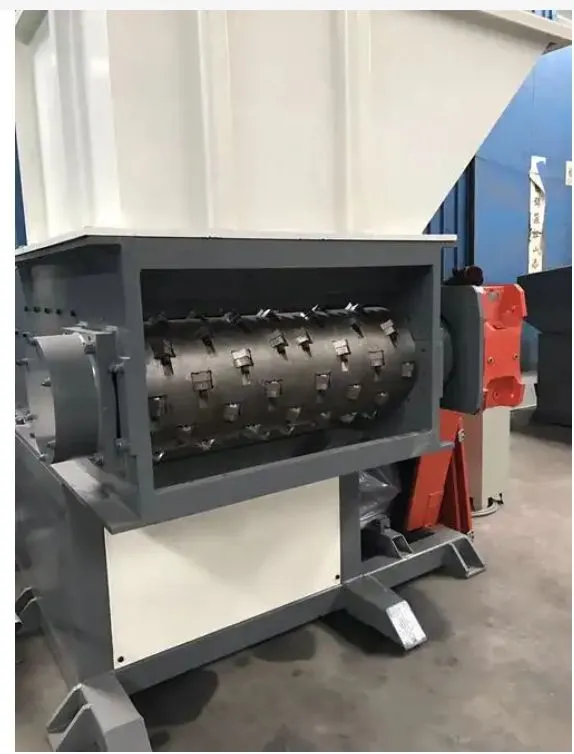

Rotor
“V” arrangement rotor with double side edge cutters prevent material build up. The rotating blades are made of CrMoV high alloy wear resistant steel, with different configurations and compositions available. The cutter blades feature a long service life allowing for multiple reuse before needing to be replaced.
Adjustable fixed blade
Adjustable fixed blade: the spacing between fixed blades is adjustable to create a broader shredding range. Surface overlaying wear-resistant material is used as the fixed blade, allowing the shredder to handle harder or higher abrasion materials as well as provide long term, stable operation.

  • Pusher system:

    Pusher system: reinforced baseplate can reduce the impact caused by material entering the cutting chamber. A dust collection device is equipped at the bottom of the pusher system to guarantee the long-term stable performance of internal components.



Screen unit:

Screen unit: a wide range of screens with a variety of configurations and mesh sizes are replaceable based on customer’s production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance.



Drive train:

Drive train: intelligent hydraulic control. When shredding breakable materials, the oil cylinder will run at the fastest speed; when shredding difficult materials, the pushing speed will slow down to prevent rotor overloading. Every hydraulic system is equipped with a cooling system to increase the durability and stability in long-time operation.




         Working Steps

Hydraulic system makes pushing device run and motorspass power into rotor by belt and gearbox. Rotor upperand bottom stator blades will work as cutting motion.
Materials are fed into the hopper and pushed by pushingchamber between rotor blades, upper and bottom statorblades.After being shred,fed materials will becomegranules.
Step1:
Ready condition.		Step2:
Hydraulic system starts and has materials pushed into rotor.		Step3:
Materialiscutintosmallergranuleswhichfallthroughscreenmesh.




         Application Range:


Textile
Before Shredding		Plastic lumps
Before Shredding		Paper
Before Shredding		Film
Before Shredding		Glass fiber
Before Shredding		Municipal solid waste
Before Shredding

Textile
After Shredding
Plastic lumps
After Shredding		Paper
After Shredding		Film
After Shredding		Glass fiber
After Shredding		Municipal solid waste
After Shredding




     Parameters:



ModelSR600SR750SR900SR1400SR1600SR2100
Main shaft speed(rpm)737373737373
Ram travel(mm)50082082082010001000
Rotor diameter(mm)Φ220Φ400Φ400Φ400Φ480Φ480
Number of rotor blades(pcs)2344528094122
Number of fixed blades(pcs)466101216
Discharge height(mm)500610610610950950
Screen holes diameter(mm)404040404040
Motor power(kw)18.5374575~902x55~2x752x75~2x90
Hydraulic power(kw)1.52.22.25.57.57.5
Cutting chamber dimensions(mm)540x600830x708830x840830x13021000x15331000x1995
Overall dimensions(LxWxH)(mm)1800x1350x17002810x2000x21152810x2100x21152810x2890x21153475x4100x27003475x4900x2700
Weight(kg)Approx 1600Approx 4460Approx 4560Approx 6200Approx 10800Approx 13000



  Case


Bulk bag filling station


Liquid filling machine


Stretch hood machine


Pallet wrapper machine


Bag weighing filling machine


Bulk bag discharger machine


Palletizer


Crushing equipment


web:


email: shiyan-110@163.com


whatsapp: 0086 135 0624 5149


we can manufacture according to your requirement.  so welcome your enquiry.
