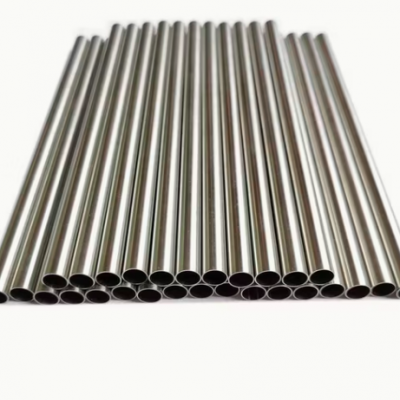

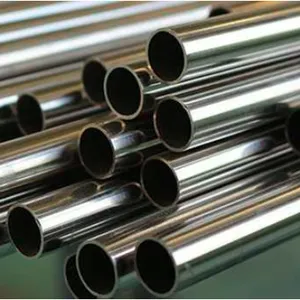

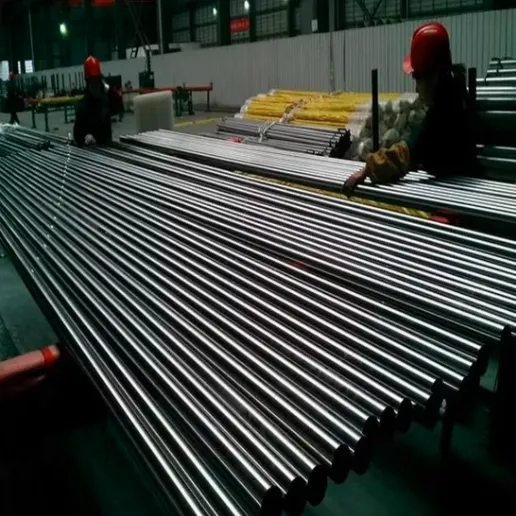

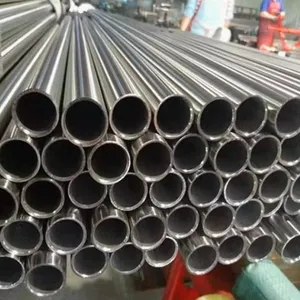

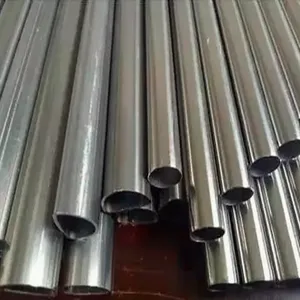

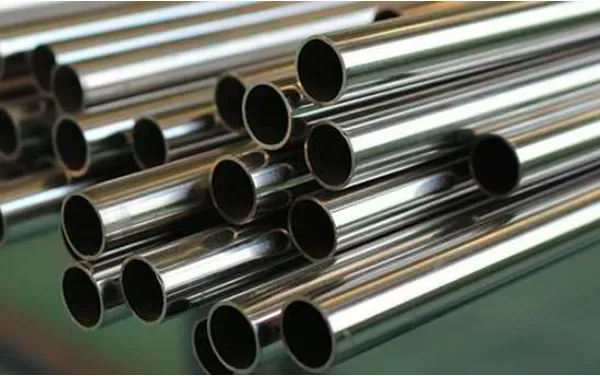

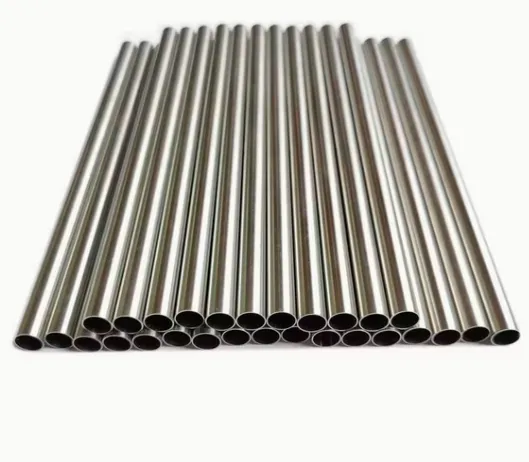

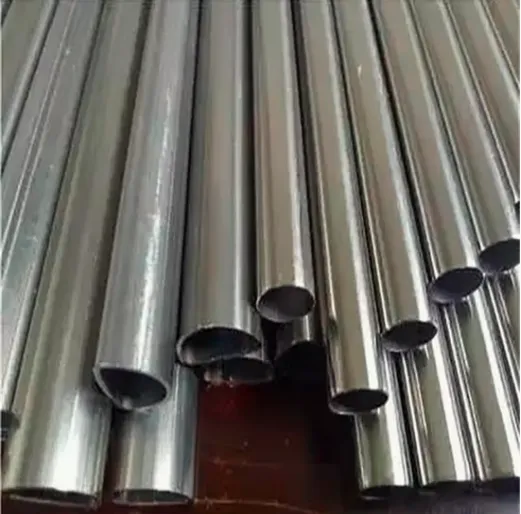

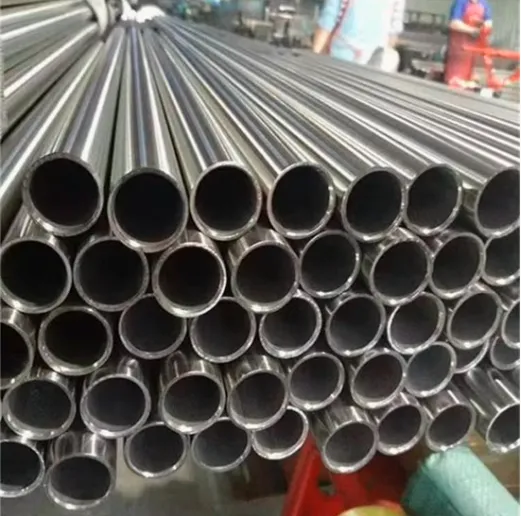

Titanium Alloy Titanium Tube ASTM B338 Ti Pd Seamless Tube

FOB Price

Negotiable / Ton

100000 Tons(Min. Order)

Port NINGBO
Payment TermsT/T
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	TC4 Titanium Alloy	Shape	Tube
Color	Silver	Surface Treatment	Other, Machined/Sand Blasting
Transport Package	Seaworthy Packing/Wooden Box or at Client′s Requir	Specification	Customized
Origin	CHINA

Product Description

316L TP304 BA clean pipe

Basic Info.

Model NO.

Titanium pipe

Quality Inspection

Ut, Chemical Composition, Physical Properties/SGS

Heat Treatment

Quenched, Tempered, Annealed

Surface Require

Machined/Sand Blasting

Processing Service

Welding, Cutting

Type

Pure Titanium and Titanium Alloy

Application

Industrial, Medical

Technique

Forged

Grade

Ta1 Ta2 Ta3 Tc4 Ta10 Ta9 Ta8 Tc1 Tc11

Transport Package

Seaworthy Packing/Wooden Box or at Client′s Requir

Specification

Customized

Origin

China

Production Capacity

1500tons/Year

Product Description

Pure Titanium And Titanium Alloy Sheet, Strip, Bar, Tube, Extrusion
We offers a complete range of titanium and titanium alloy mill products in sheet, strip, plate, billet, bar, rod, extrusions and tubulars. We also offer metal processing services including hot-forming (e.g super plastic forming), extrusion,seamless pipe production, water jet and saw cutting, and machining.

Product Name	Titanium
Titanium Bars/ Rods/Ingots	Ф3mm~Ф1020mm,the maximum weight is up to 12t
Titanium Slab	(80~400)mm×(~1500)mm×(~2600)mm
Titanium Forgings	Weight per piece≤2000kg
Titanium Hot-rolled plates	(4~100)mm×(800~2600)mm×(2000~12000)mm
Titanium Cold-rolled plates	(0.01~4.0)mm×(800~1560)mm×( ~6000) mm
Titanium Strips	(0.01~2.0)mm×(800~1560)mm×L
Titanium Tubes / Pipes	Ф(3~114)mm×( 0.2~5)mm × (~15000)mm
Standards	GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт
Titanium Grade	GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 BT6 BT5-1 3B BT6c TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4

Chemical Composition

Titanium	Composition Requirements, weight percent
Grade	C	O	N	H	Fe	Al	V	Pd	Ni	Mo
1	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	-	-	-
2	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	-	-
3	≤0.08	≤0.35	≤0.05	≤0.015	≤0.30	-	-	-	-	-
4	≤0.08	≤0.40	≤0.05	≤0.015	≤0.50	-	-	-	-	-
5	≤0.08	≤0.20	≤0.05	≤0.015	≤0.40	5.5~6.75	3.5~4.5	-	-	-
7	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.12~0.25	-	-
9	≤0.08	≤0.15	≤0.03	≤0.015	≤0.25	2.5~3.5	2.0~3.0	-	-	-
11	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.12~0.25	-	-
12	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	-	0.6~0.9	0.2~0.4
16	≤0.08	≤0.25	≤0.03	≤0.015	≤0.30	-	-	0.04~0.08	-	-
17	≤0.08	≤0.18	≤0.03	≤0.015	≤0.20	-	-	0.04~0.08	-	-
23	≤0.08	≤0.13	≤0.03	≤0.0125	≤0.25	5.5-6.5	3.5~4.5	-	-	-

Tensile Requirements

Titanium	Tensile Strength	Yield Strength	Elongation	Bend Test(Radius of Mandrel)
Grade	ksi [MPa]	0.2% offset, ksi [MPa]	in 2", %	t<1.8 mm	1.8 mm≤t<4.75 mm
1	≤35 [240]	20~45 [138~310]	24	1.5T	2T
2	≤50 [345]	40~65 [275~450]	20	2T	2.5T
3	≤65 [450]	55~80 [380~550]	18	2T	2.5T
4	≤80 [550]	70~95 [483~655]	15	2.5T	3T
5	≤130 [895]	≤120 [828]	10	4.5T	5T
7	≤50 [345]	40~65 [275~450]	20	2T	2.5T
9	≤90 [620]	≤70 [483]	15	2.5T	3T
11	≤35 [240]	20~45 [138~310]	24	1.5T	2T
12	≤70 [483]	≤50 [345]	18	2T	2.5T
16	≤50 [345]	40~65 [275~450]	20	2T	2.5T
17	≤ 35[240]	20~45 [138~310]	24	1.5T	2T
23	≤120 [828]	≤110 [759]	10	4.5T	5T

Category	Material	Dimension(mm)	Specification
Ti & Alloy ingots & bars	CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, etc.	Standard Or Customized	GB/T 2965, ASTM B348
Ti & Alloy castings			GB/T 6614, ASTM B367
Ti & Alloy forgings			GB/T 25137, ASTM B381
Ti & Alloy plates			GB/T 3621, ASTM B265
Ti & Alloy strips & foils			GB/T 3622, ASTM B265
Cold rolled Ti & Alloy strip coils			GB/T 26723, ASTM B265
Ti & Alloy wires			GB/T 3623, ASTM B863
Ti & Alloy seamless tubes			GB/T 3624, ASTM B861
Ti & Alloy welded tubes			GB/T 26057, ASTM B862
PM Ti & Alloy components			GB/T 6887, ASTM B817

Q1. Where is your factory ?

A1: Our company's processing center is located in China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.We can provide a wide range of personalized services according to the customers' needs.
Q2. What are your company's main products ?

A2: Our main products are stainless steel plate,aluminum ,copper etc.
Q3. How do you control quality ?

A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?

A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other companies.
Q5. How many coutries you already exported ?

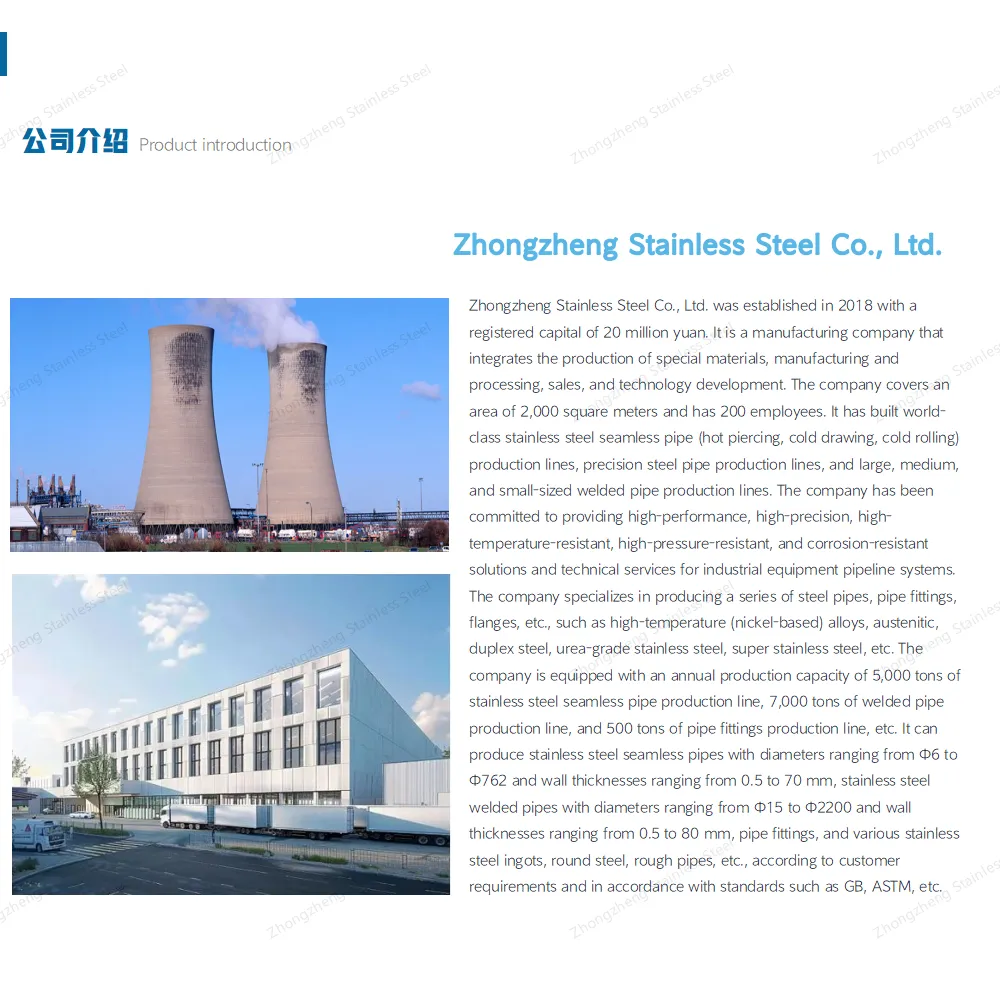

Company Profile
