Intelligent 7.2V 8.4V 9.6V NIMH Battery Charger for 2-10S Airsoft Battery RC Car Battery with Standard Tamiya and Mini Tamiya Connector

Intelligent 7.2V 8.4V 9.6V NIMH Battery Charger for 2-10S Airsoft Battery RC Car Battery with Standard Tamiya and Mini Tamiya Connector

Specifications

• Input voltage: 100-240VAC, 50/60Hz, 0.2A

• Output voltage: DC 2.4-12V (2S-10S )

• Charge current: DC 800mA (2S-6S ); DC 500mA (7S-10S)

• Charging mode: Pulse Constant Current

• Charging time: 10 Hours( may vary based on the battery capacity)

• Weight: 70g/0.16lb

• Operation temperature: -10-40℃

• Storage temperature: -20-85℃

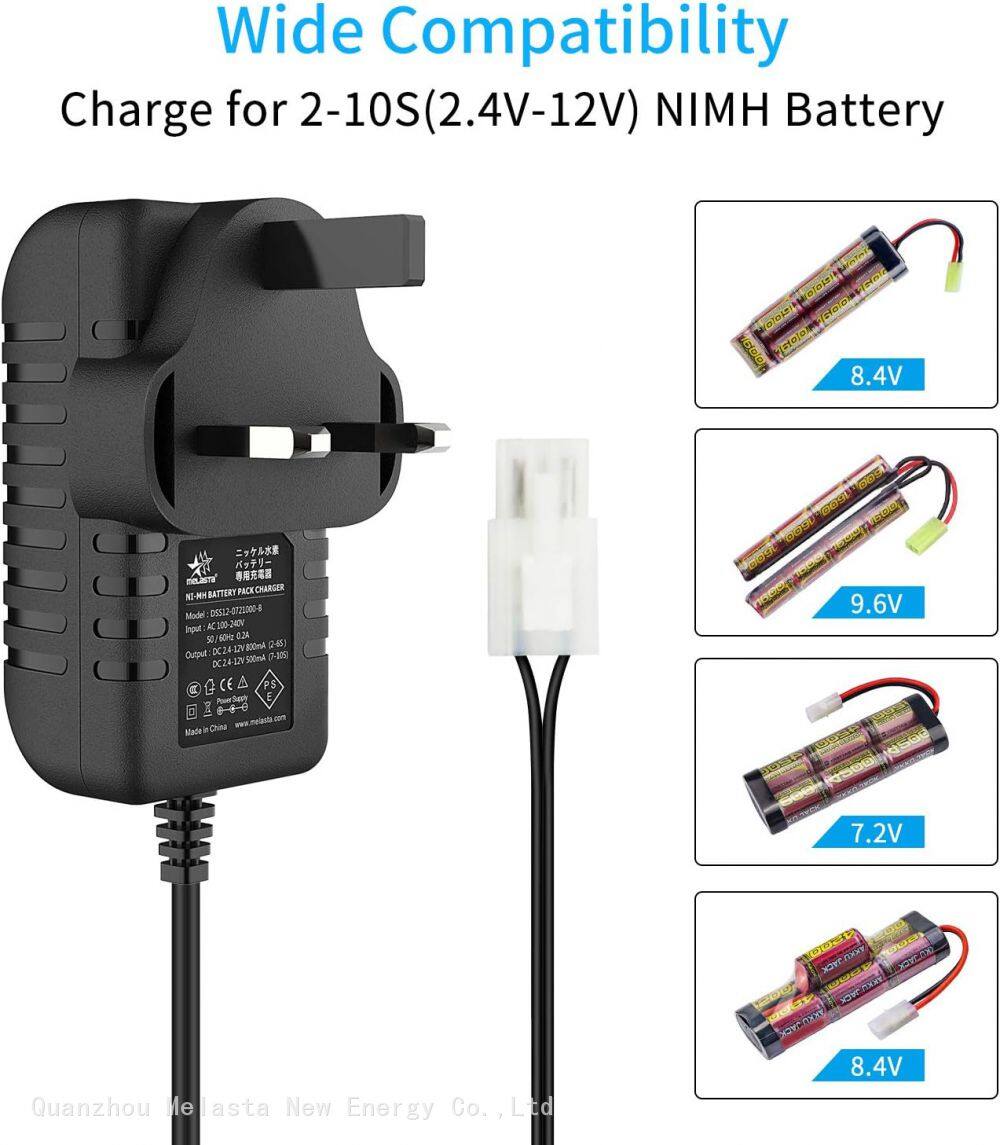

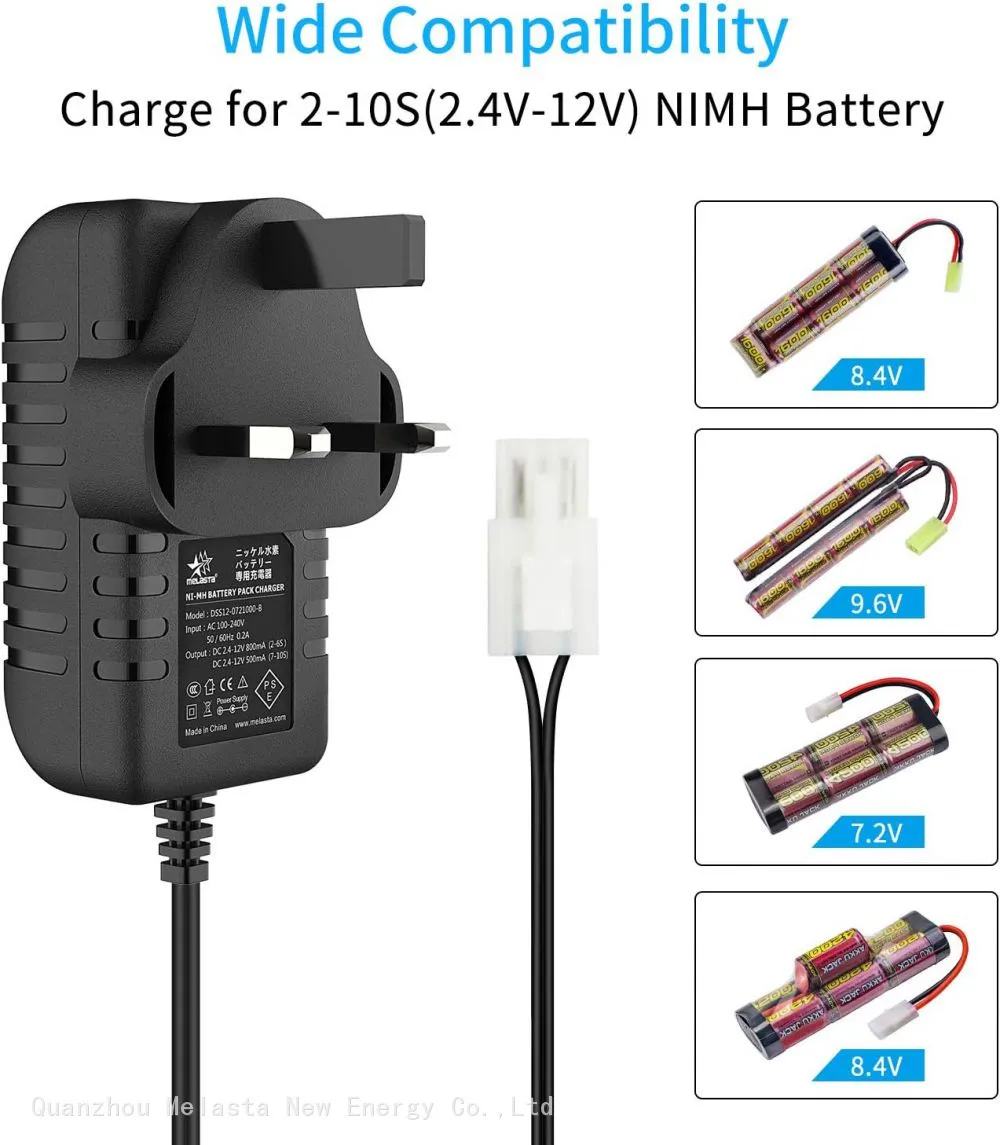

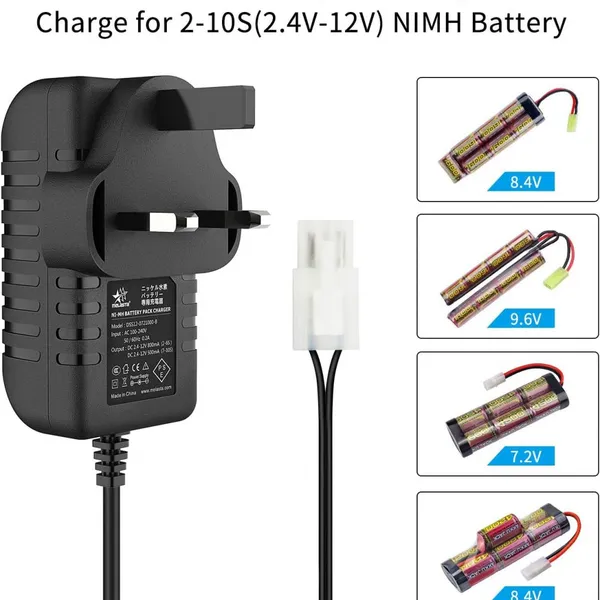

• Applications: 2S-10S Ni-MH Battery Packs(2.4v 3.6v 4.8v 6v 7.2v 8.4v 9.6v 10.8v 12v)

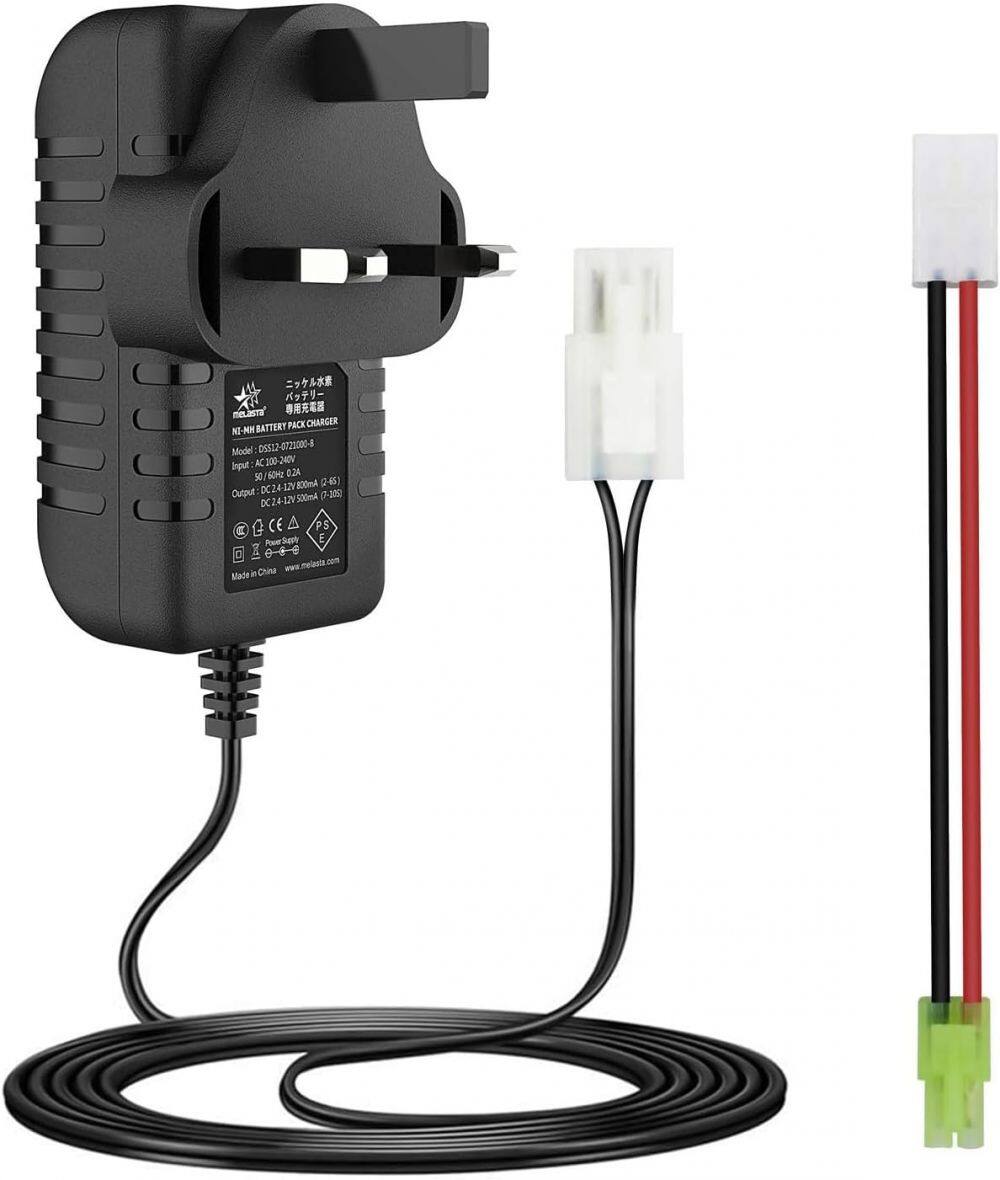

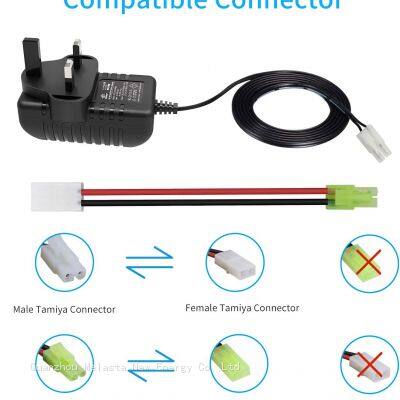

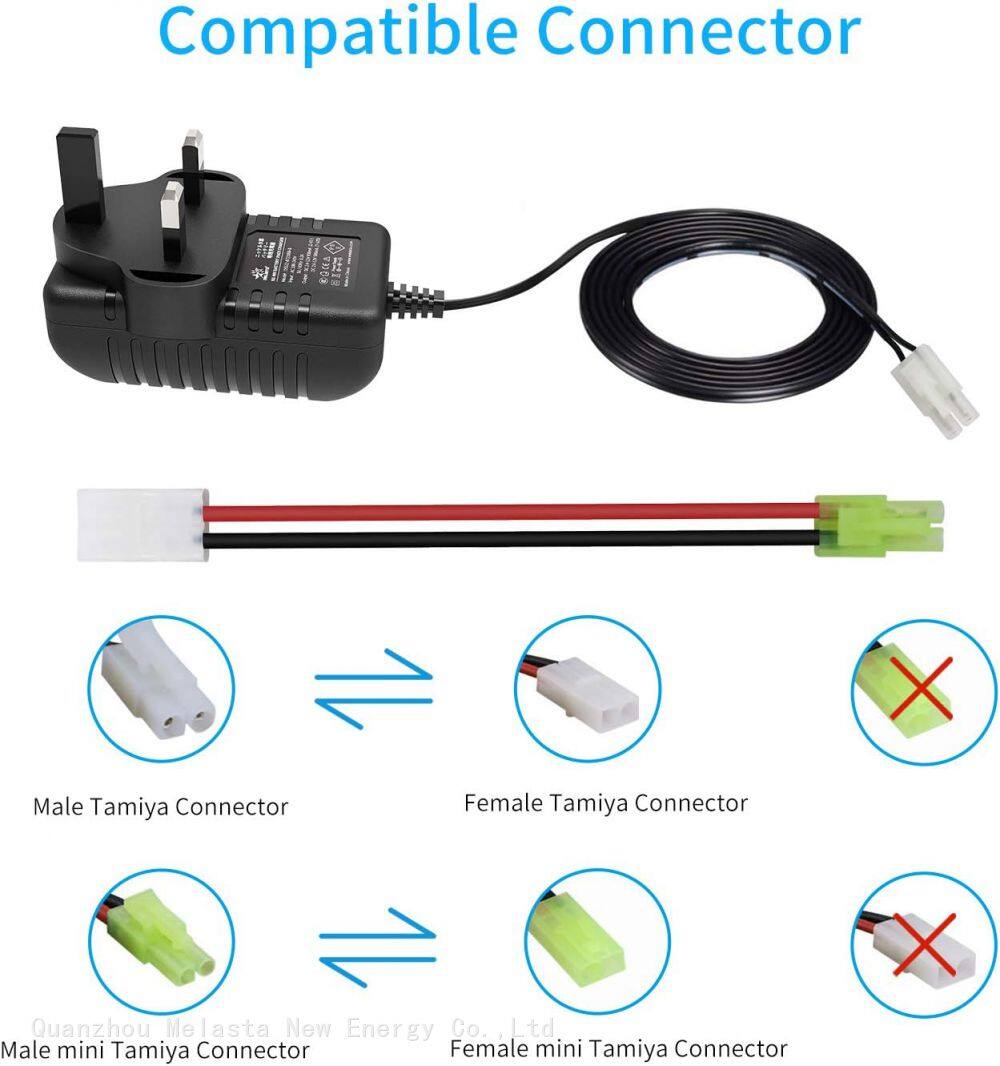

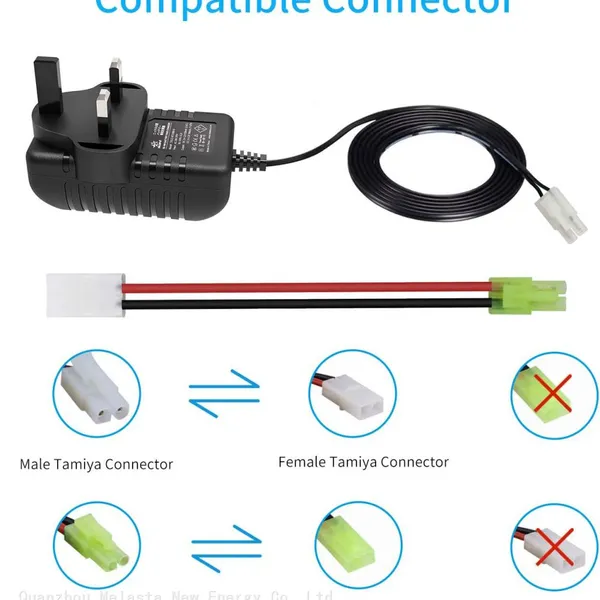

• Connector: male tamiya connector and male mini tamiya connector

Main Features:

1. Intelligent control with MCU during batteries charging.

2. Integration of the switching power supply and charging technology, improve the charging efficiency greatly.

3. Automatically identify the number of batteries and charging without any adjustment for 2-10Pcs Ni-MH battery packs.

4. Accurately detect the battery voltage and charging current, intelligently control the whole process of charging, and ensure the battery can be fully charged.

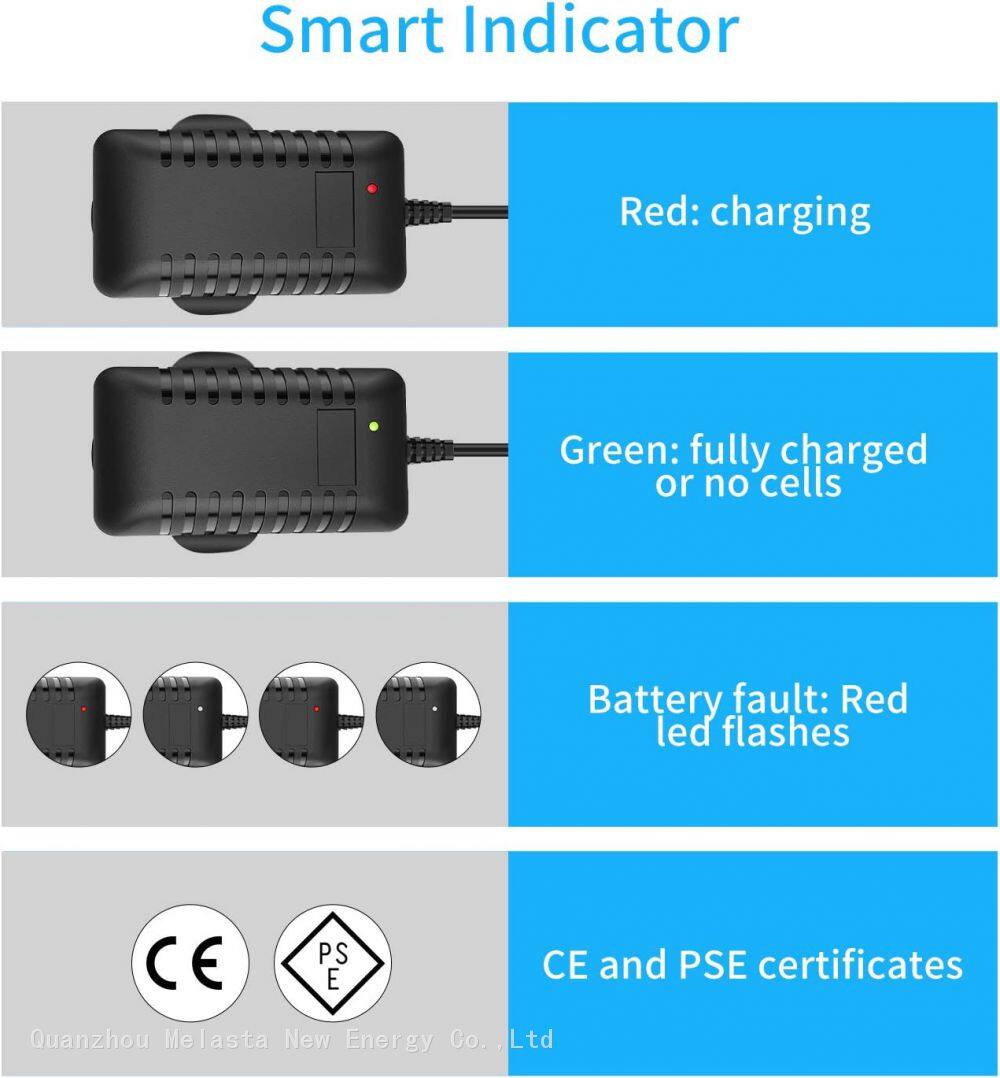

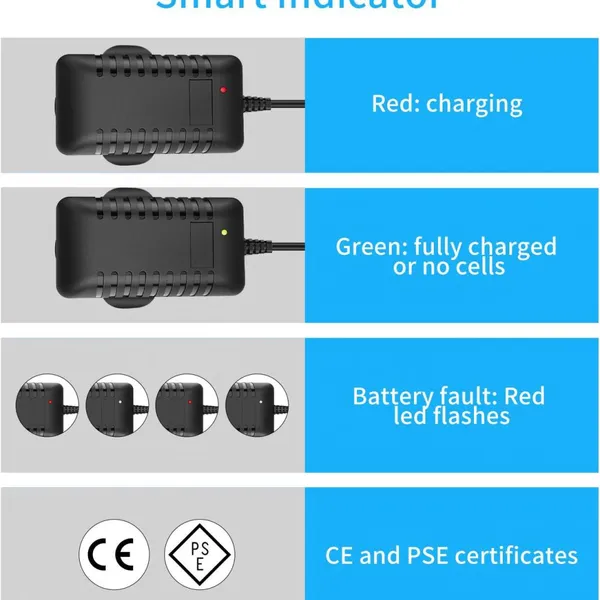

5. Smart LED shows the status of charging.

6. pulse current model which can improve the battery lifetime and performance

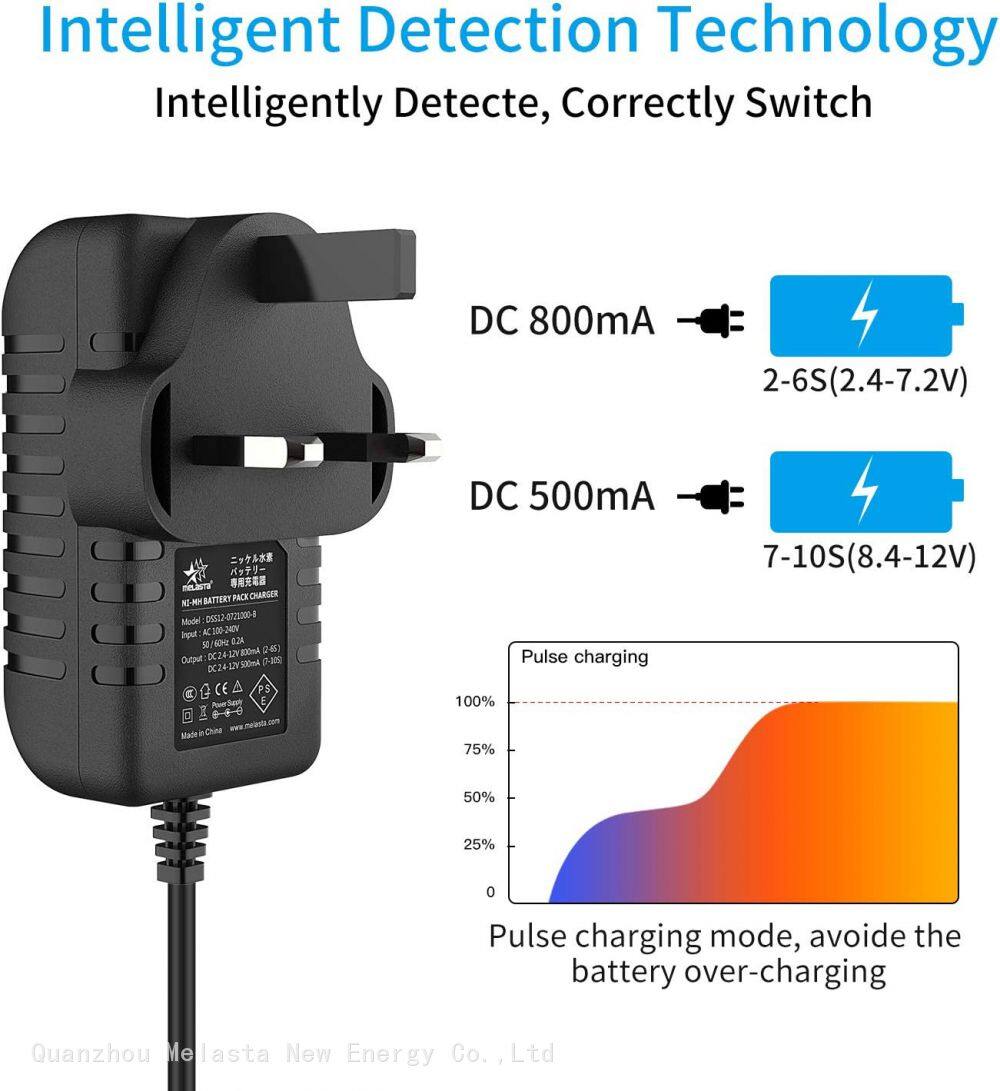

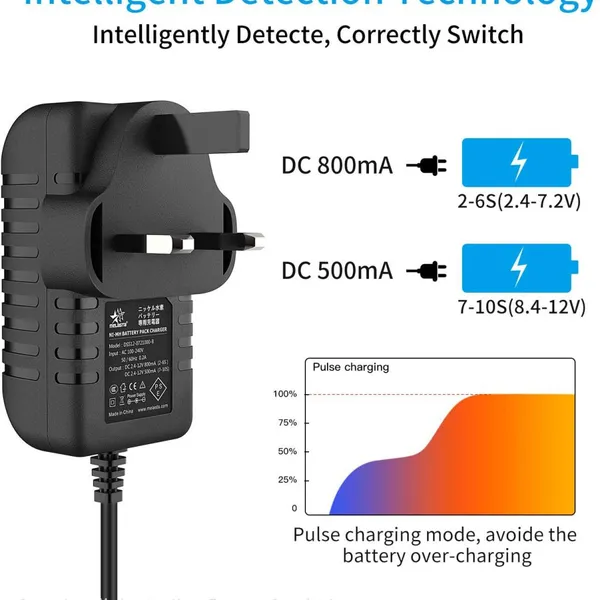

Advance of Pulse Current Model:

1. the battery can be 100% fully charged, other faster chargers only charge into 85% capacity, which can improve the battery performance.

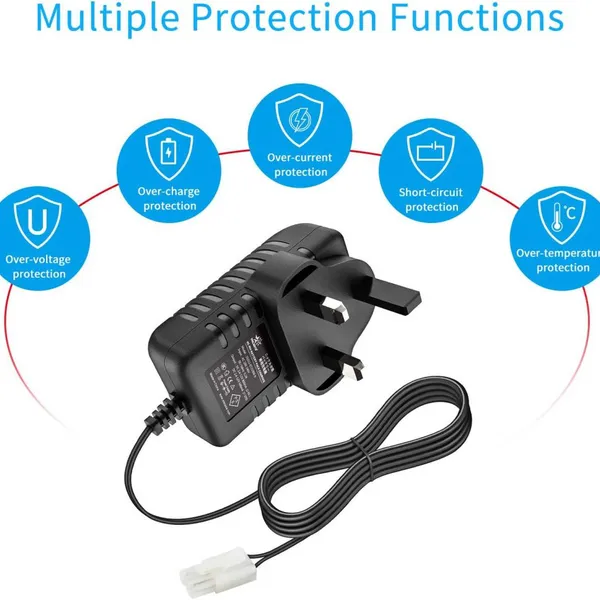

2. it can avoid the over-heating and over-current, which can extend the battery lifetime.

3. High security: pulse current output 2-6S==800mA, 7-10S==500mA, pulse slow charge, which will be safe
