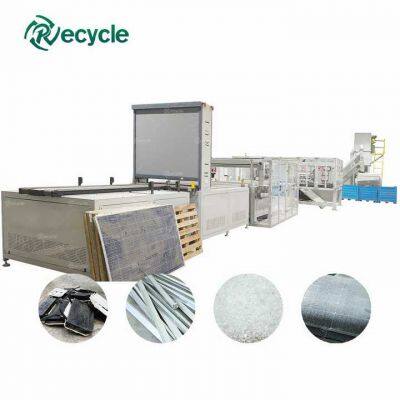

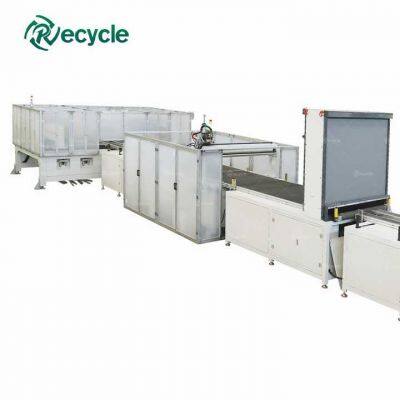

Automatic Solar Panels Glass Stripper Solar Panels PV Panel Glass Removing Machine

Automatic Solar Panels Glass Stripper Solar Panels PV Panel Glass Removing Machine photo-1
Automatic Solar Panels Glass Stripper Solar Panels PV Panel Glass Removing Machine photo-2
Automatic Solar Panels Glass Stripper Solar Panels PV Panel Glass Removing Machine photo-3
Automatic Solar Panels Glass Stripper Solar Panels PV Panel Glass Removing Machine photo-4
Automatic Solar Panels Glass Stripper Solar Panels PV Panel Glass Removing Machine photo-5
US$ 73000 - 75000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other
Automation:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Type Other
Automation Automatic
Hot Sale Solar Panel Glass Removing Machinery Pv Panel Glass Dismantling Device Glass Remove System
TECHNICAL PARAMETERS
Glass Removal Rate
Power
Size
Capacity
Weight
85-95%
30.5KW
9200*5200*4200mm
60-70Pieces/Hour
7.02Ton
Single Machine for Recycling Solar Panels
Glass Separating & Collection Unit1) Main functions: It can adapt to photovoltaic panels with a width of 800mm-1300mm, with flat surface and no curling edges. The adhesive strips above 2.5mm can be manually removed. The photovoltaic panels are transported in the center. The width of photovoltaic panels of different sizes can be adjusted (when used with 3D scanning). , the broken glass is collected by a special conveyor belt. There is a three-layer vibrating screen at the end of the conveyor belt to classify the broken glass. The end of the equipment is equipped with an automatic cutting device, which can directly cut the photovoltaic panels into strips for subsequent processing. It is equipped with 36 bags of dust removal. The dust raised during work can be coordinated with the entire line to achieve automatic operation. 2) Glass removal rate is 85~95%. 3) Power 30.5KW. 4) Equipment output, 60-70 pieces/hour. 5) Number of blades: 108 for glass milling cutter. 6) Equipment size: 9200mm*5200mm*4200mm, weight 7.02 tons (6.07+0.55+0.4).


Product Tags: Automatic Solar Panels Glass Stripper , Solar Panels PV Panel Glass Removing Machine
