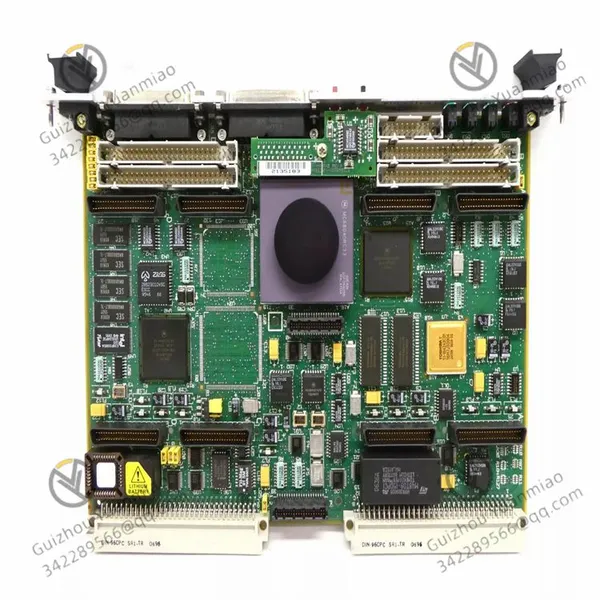

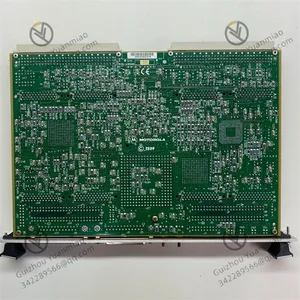

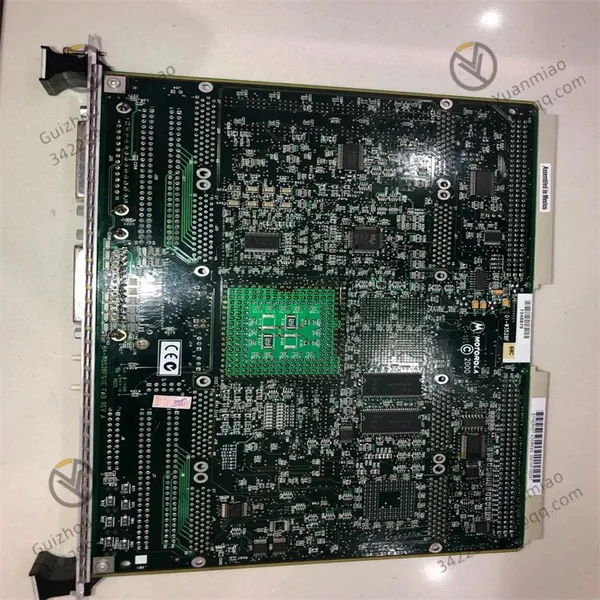

MOTOROLA MVME1603-042 Industrial Computer Module

Standard capacity of RAM (e.g., 256MB or higher) for running operating systems and applications.

Built-in Flash memory (e.g., 128MB) for storing system firmware and user programs, supporting data retention during power outages.
Interfaces and Communication:

Bus Interface: Supports VME bus (VersaModule Eurocard) for high-speed data interaction with other modules, suitable for multi-module integrated systems.

Serial Communication: Typically equipped with multiple RS-232/RS-485 interfaces for connecting sensors, instruments, or other peripherals.

Network Interface: May integrate an Ethernet interface (10/100Mbps), supporting industrial network protocols (e.g., TCP/IP) for remote monitoring and data transmission.

Other Interfaces: May include USB interfaces, GPIO (General Purpose Input/Output) interfaces, etc., to meet diverse peripheral connection needs.
Storage Expansion: Supports expansion via SD cards or other storage media for data recording or program upgrades.
Power Supply and Power Consumption: Adapts to industrial-grade power input (e.g., DC 24V); power consumption depends on actual load, usually with a low-power design for long-term operation.

Uses industrial-grade components, supporting a wide temperature working environment (e.g., -40°C to +70°C), adapting to harsh industrial environments (high temperature, vibration, dust, etc.).

Features EMC (Electromagnetic Compatibility) design to reduce electromagnetic interference and ensure stable data transmission.
Expandability and Compatibility:

Seamlessly integrates with other functional modules (e.g., analog input/output, digital control, communication modules) via VME bus to build complex industrial control systems.

Supports multiple industrial protocols for easy docking with PLC, SCADA systems, or host computers.
Maintenance and Diagnosis:

Front panel with status indicator lights (LEDs) to display module operating status (power, communication, fault, etc.) in real time, facilitating quick problem troubleshooting.

Supports remote diagnosis and firmware upgrades, reducing downtime for maintenance.

Used in CNC machine tools and robot control systems to achieve high-precision motion control and logical operations.

As the main controller in production line automation, coordinating equipment at each station, processing real-time data, and executing control strategies.
Energy and Power Systems:

Applied in substation automation and power dispatching systems to collect grid parameters (voltage, current, frequency, etc.) for real-time analysis and control.

In new energy fields (e.g., wind power, photovoltaics), monitors the operating status of power generation equipment to optimize energy management.
Rail Transit and Aerospace:

As the core module of the Train Control System (TCMS), processes control commands such as traction and braking to ensure driving safety.

In aerospace ground test equipment, used for data collection and real-time simulation.
Process Control and Manufacturing:

In process industries such as chemical and metallurgy, serves as a node in the Distributed Control System (DCS) to participate in real-time adjustment of process parameters.

In automobile manufacturing production lines, controls process links such as welding and painting to ensure production precision and efficiency.
