Resistance Spot Weld Analyzer
US$ 99000
≥1 Sets
- T/T
You May Like
Product Description
RSWA F2

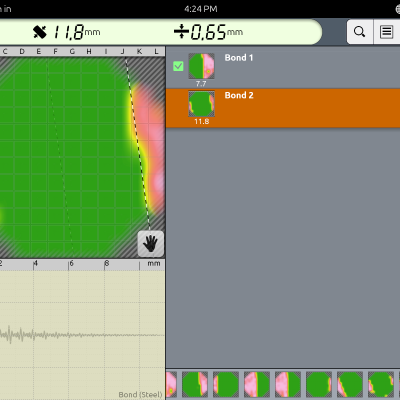

RSWA is an ultrasonic device designed for quality control and NDE of resistance spot welds. RSWA is as a portable and simple-in-operation device capable of producing images of spot weld’s internal structures. In addition to live on-screen image, this device performs estimation of the nugget diameter and compares it with predefined minimum nugget requirements.
Using the unique technology of multi-channel ultrasonic matrix transducer, RSWA collects data from the surface and from the internal structures of the nugget. Special algorithms use this data to reconstruct the image of the spot weld and estimate the average diameter of the nugget area in real time.
Using the unique technology of multi-channel ultrasonic matrix transducer, RSWA collects data from the surface and from the internal structures of the nugget. Special algorithms use this data to reconstruct the image of the spot weld and estimate the average diameter of the nugget area in real time.
Features
Single-frame and continuous data acquisition modes
Automatic and manual nugget size estimation
Automatic detection of scanning depth inside the metal
Two levels of user interface complexity depending on operator skills
Built-in reporting system and file storage
ApplicationMetal stacks: 2T and 3T; 0.6 – 2.4 mm plate thicknesses
Types of materials: mild steel, high strength steel, dual phase ultra high strength steel
Coatings: bare, zinc coating (galvanized, galvaneal), e-coating, paint
