US$ 410 2 - 9 Pieces
US$ 370 ≥10 Pieces
Key Specifications
Get Latest Price
Type:
Vane Pump
Weight:
33kg
Delivery time:
1-2 Days
Contact Supplier Request Quote Chat Now
Foshan Yisheng Machinery Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Vane Pump
Weight 33kg
Delivery time 1-2 Days
Is it brand new? Yes
Manufacturer Guangdong Yihe Hydraulic Technology Co.,
Trademark YIHE
Origin China

黄兆媚

Guangdong Yihe Hydraulic Technology Co., Ltd.

We are Guangdong Yihe Hydraulic Technology Co., Ltd., located in Foshan City, Guangdong Province, China. We have a R&D team of 5-10 engineers and designers. The factory has more than 100 skilled employees, and the production base has advanced manufacturing equipment and testing equipment, such as CNC lathes, machining centers, CNC milling machines, special CNC grinders, double-head grinders, fully automatic 3D measuring instruments, etc.


Our main products include hydraulic variable vane pumps, double-head pumps, HVP high-pressure variable vane pumps, PV2R1 and PV2R2 series, V and VQ series, T6 and T7 series, SQP series and VQ series quantitative vane pumps and hydraulic application motors.


Our products are widely used in industrial machinery, CNC lathes, shoemaking machinery, woodworking machinery, plastic machinery, construction machinery, and various hydraulic system machinery. We can also provide customized products and services according to your specific requirements, and sincerely look forward to cooperating with your company.

首图

Advantage：
1. The maximum working pressure of T6 series single vane pump is optional from 190bar to 320bar.
2. Maximum displacement is optional from 40ml/rev to 269ml/rev
3. Pump weight from 7.0Kg to 66Kg
4. This series of vane pumps are mainly used in industrial and mobile machinery
5. It has the advantages of complete high, medium and low voltage, low noise, long service life, easy maintenance and high efficiency.

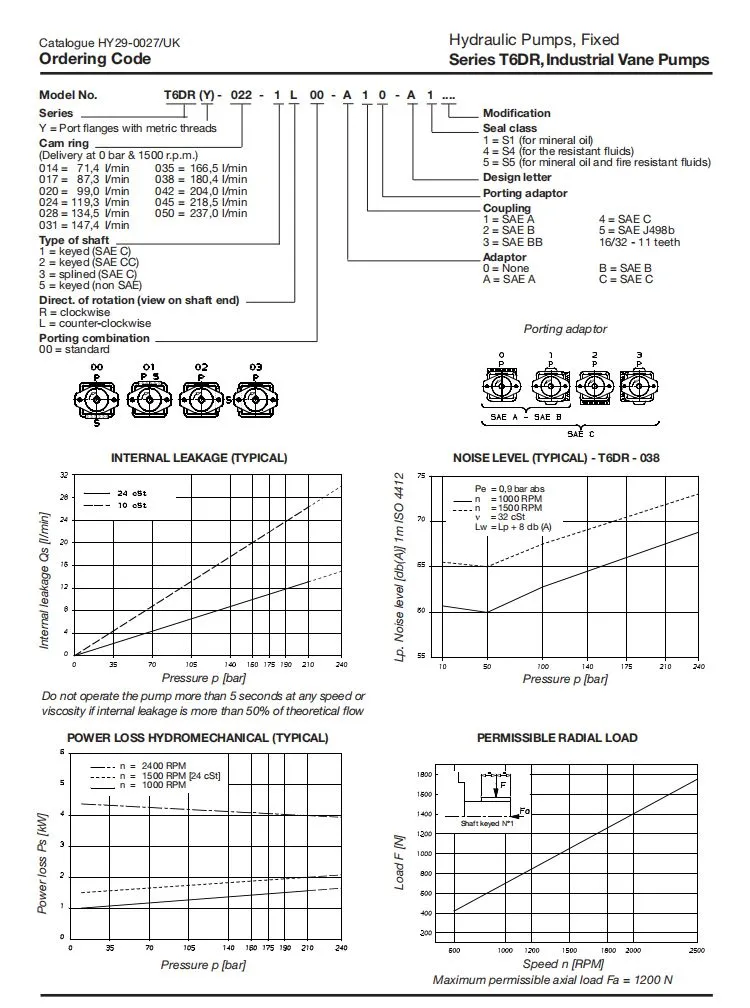

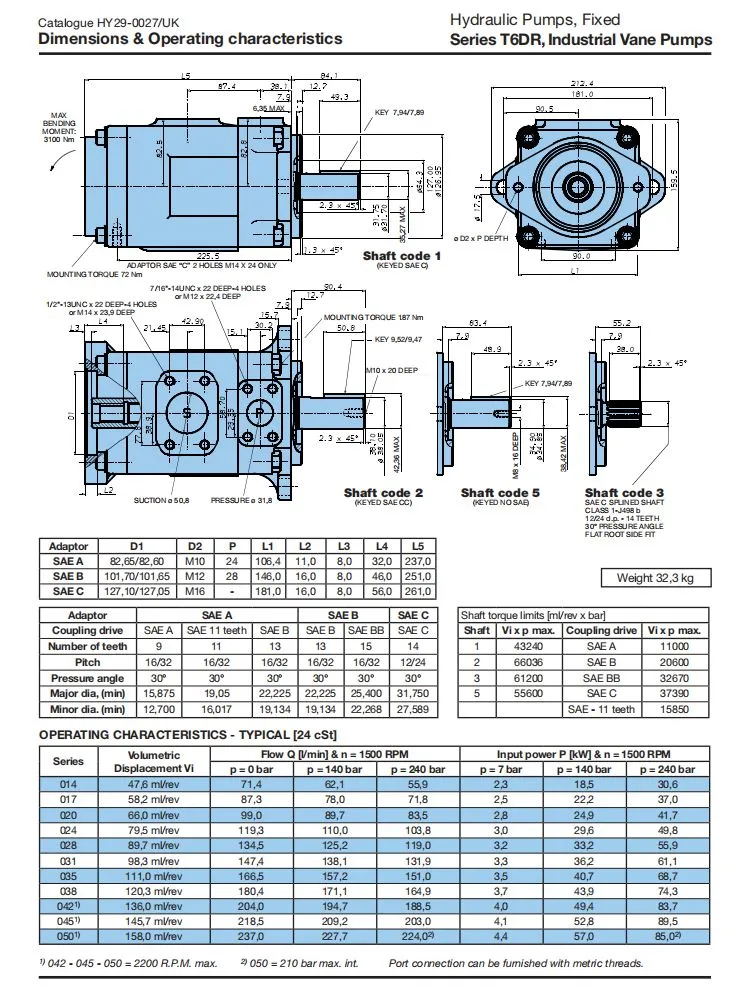

细节产品对比参数_01参数_02

Product Tags: with Tail Drive Vane Hydraulic Pump , T6DR-031-3R02-B20-A1 , T6DR-042-3R02-B20-A1
