WTB-CUP series computerized cupping testing machine
- Qingdao, tianjin, shanghai
- T/T L/C PayPal D/P Western Union Other
- 20 days
You May Like
-
GBW-60 computerized cupping tester
-
cupping testing machine cupping tester paint cupping tester
-
metal cupping testing machine ISO 1520 cupping tester sheet metal cupping tester
-
coating cupping testing machine lacquer cupping tester paint film cupping tester
-
Erichsen cupping testing machine manual cupping tester automatic cupping tester
-
paint coating adhesion test metal sheet deformation test coating flexibility test
Product Details
Type | Other, cupping testing machine | Weight | 100-500Kg | |
Power Source | AC380V | Accuracy Grade | 1 | |
Maxcapacity | <1000KN | Load Way | Electronic Load | |
Oil Cylinder Position | Under | Control | Computer Control | |
Loading Method | Static Load | Display | Digital | |
test methods | GB/T 4156 , ISO 20482 | Origin | China |
Product Description

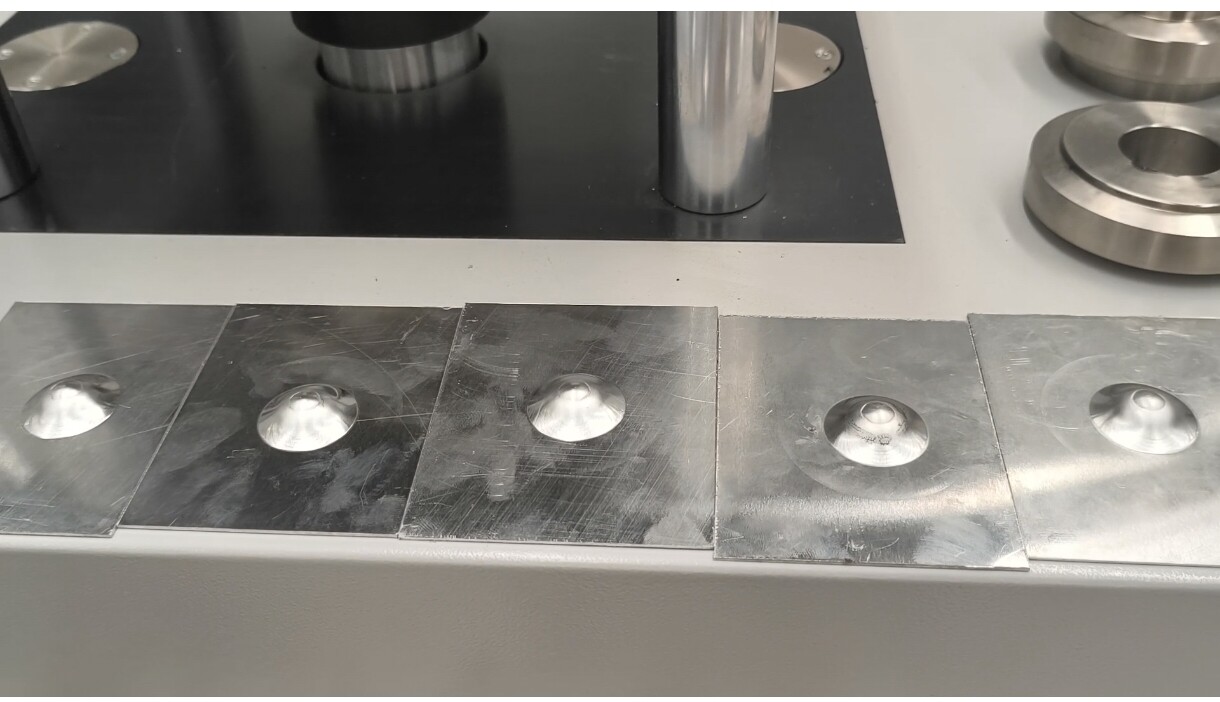

cupping testing
1. introductions
The WTB-CUP series computerized cupping testing machine is a special designed machine for ductility test of metal sheets and strip materials. It meets with test method of GB4156 and ISO 20482 metallic materials— sheet and strip—Erichsen cupping test.
The WTB-CUP series computerized cupping testing machine adopts composite cylinder with hydraulic clamping and hydraulic stamping. It has functions of auto stop when crack occurs, easy and convenient to observe cracks; peak value record functions to record max. force and deformation depth; easy and convenient to change, install and uninstall test specimen and punch.
The cupping machine adopts electronic control mechanical loading, spoke load cell to measure force and high precise encoder to measure cupping value. Accuracy of cupping value can be 0.01mm and test force accuracy can be 1N. The whole test is controlled by computer software and the software can auto analyze test parameters.
2. specifications
No. | Item | Spec. |
1 | Test specimen thickness | 0.5-2mm, can choose 2-3mm |
2 | Test specimen width | 90-100mm, can choose 55-90mm,30-55mm |
3 | Stroke of punch | 40mm |
4 | Clamp piston stroke | 40mm |
5 | Punch force | 60kN max. |
6 | Mac. Clamp force | 10kN |
7 | Resolution of cupping value | 0.01mm |
8 | Test speed | 2-100mm/min |
9 | Test mould for specimen with width 90-100mm | Diameter of the spherical end of the punch: φ20±0.05mm bore diameter of the blank holder: φ33±0.1mm bore diameter of the die: φ27±0.05mm, φ40±0.05mm |
10 | Test mould for specimen with width 55-90mm | Diameter of the spherical end of the punch: φ15±0.02mm bore diameter of the blank holder: φ18±0.1mm bore diameter of the die: φ21±0.02mm |
11 | Test mould for specimen with width 30-55mm | Diameter of the spherical end of the punch: φ8±0.02mm bore diameter of the blank holder:φ10±0.1mm bore diameter of the die:φ11±0.02mm |
12 | Hydraulic oil | N46# hydraulic oil (prepared by client) |
13 | Outside dimension | 700x560x1500mm |
14 | Voltage | AC220V/ AC380V |
15 | Weight | About 480kg |
