Metal Titanium Plate and Sheet Titanium Alloy Supplier

Metal Titanium Plate and Sheet Titanium Alloy Supplier thumbnail-1
Metal Titanium Plate and Sheet Titanium Alloy Supplier thumbnail-2
Metal Titanium Plate and Sheet Titanium Alloy Supplier thumbnail-3
Metal Titanium Plate and Sheet Titanium Alloy Supplier thumbnail-4
Metal Titanium Plate and Sheet Titanium Alloy Supplier thumbnail-5
Metal Titanium Plate and Sheet Titanium Alloy Supplier photo-1
Metal Titanium Plate and Sheet Titanium Alloy Supplier photo-2
Metal Titanium Plate and Sheet Titanium Alloy Supplier photo-3
Metal Titanium Plate and Sheet Titanium Alloy Supplier photo-4
Metal Titanium Plate and Sheet Titanium Alloy Supplier photo-5
Negotiable MOQ: 100000 Tons (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Titanium Sheets
Shape:
Other, Plate
Color:
Silver
Contact Supplier Request Quote Chat Now
Zhongzheng Stainless Steel Co., Ltd.
Gold Verified Supplier
2Yrs
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Titanium Sheets
Shape Other, Plate
Color Silver
Transport Package Wooden Box
Specification 0.3-100mm
Origin CHINA

Basic Info.

Model NO.
0.3-100mm
Hot Rolled Thickness
4.1-100
Width
Max3000mm
Length
Customed
Type
Titanium Sheets
Application
Industrial, Medical
Technique
Cold Rolled
Grade
GR2
Transport Package
Wooden Box
Specification
4.1-100
Trademark
Ruiyang
Origin
China
Production Capacity
5000tons/Year
Product Description
Titanium Sheet & Plate Available from 0.3mm to 100mm thick cold roll and hot roll

AVAILABLE SIZES:
Sheet is 0.3mm to 4.1mm thick, up to 1500mm width cold roll
Plate is 4.1 mm to 100mm thick, up to 3000mm width hot roll

PROCESSING
Hot rolling and cold rolling

PROCESSING STANDARD:
ASME SB/B265, AMS 4911, AMS 4919, AMS 4914, ASTM F67, ASTM F136, ASTM F1341, ISO 5832-2, MIL-T-9046

EXAMPLE APPLICATIONS:
Fire wall, driver protection, valve covers, bell housings, driveshaft tunnels, brake backing plates, heat shields, rocker shaft stands, jewelry etc

STANDARD CHEMICAL COMPOSITION (weight %, max or range) MECHANICAL PROPERTIES (min)
ASTM B265 UNS
No		 N C H Fe O Al V Pd Mo Ni Tensile Yield El. Red.
Mpa Mpa % %
GR 1 R50250 0.03 0.08 0.015 0.2 0.18




240 138 24 30
GR 2 R50400 0.03 0.08 0.015 0.3 0.25




345 275 20 30
GR 3 R50550 0.05 0.08 0.015 0.3 0.35




450 380 18 30
GR 4 R50700 0.05 0.08 0.015 0.5 0.4




550 483 15 25
GR 5 R56400 0.05 0.08 0.015 0.4 0.2 5.5-6.75 3.5-4.5


895 828 10 25
GR 7 R52400 0.03 0.08 0.015 0.3 0.25

0.12-0.25

345 275 20 30
GR 9 R56320 0.03 0.08 0.015 0.25 0.15 2.5-3.5  2.0-3.0


620 483 15 25
GR 12 R53400 0.03 0.08 0.015 0.3 0.25


0.2-0.4 0.6-0.9 483 345 18 25
GR 23 R56401 0.03 0.08 0.0125 0.25 0.13 5.5-6.5 3.5-4.5


828 759 10 15

TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE UNS NO. WIRE BAR SHEET PLATE TUBE PIPE FITTING FORGING FASTENER
Ti Grade 1  R50250 √ √ √ √ √ √ X √ √
Ti Grade 2 R50400 √ √ √ √ √ √ √ √ √
Ti Grade 3 R50550 √ √ √ √ X X X √ √
Ti Grade 4 R50700 √ √ √ √ X X X √ √
Ti Grade 5 (6Al 4V) R56400 √ √ √ √ X X X √ √
Ti Grade 7 (0.2Pd) R52400 √ √ √ √ √ √ √ √ √
Ti Grade 9 (3Al 2.5V) R56320 √ √ √ √ √ X X √ √
Ti Grade 11 R52250 √ √ √ √ √ √ X √ √
Ti Grade 12 (0.3Mo 0.8Ni) R53400 √ √ √ √ √ √ √ √ √
Ti Grade 17 R52252 X √ √ √ √ √ X √ √
Ti Grade 23 (6Al 4V Eli) R56401 √ √ √ √ X X X √ √
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.

Metal Titanium Plate and Sheet Titanium Alloy SupplierTitanium and Alloy Products
Product name Specifications
Titanium Rod & Bar & Ingots  Ф3mm~Ф1020mm,the maximum weight is up to 12t
Titanium Slab (80~400)mm×(~1500)mm×(~2600)mm
Titanium Forgings Weight per piece≤2000kg
Titanium Hot-rolled plates (4~100)mm×(800~2600)mm×(2000~12000)mm
Titanium Cold-rolled Sheet (0.01~4.0)mm×(800~1560)mm×( ~6000) mm
Titanium Foil / Strips (0.01~2.0)mm×(800~1560)mm×L
Titanium Tubes / Pipes Ф(3~114)mm×( 0.2~5)mm × (~15000)mm
Standards GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт
Titanium Grade

  • GR1,GR2,GR3,GR5,GR7,GR12

  • BT1-00,BT1-0,BT1-2

  • TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4
Titanium Production Process
Metal Titanium Plate and Sheet Titanium Alloy Supplier
Titanium Production Equipment

Metal Titanium Plate and Sheet Titanium Alloy SupplierWelcome to conact

 us for titanium inquiry

Pure titanium is a silver-white metal with many excellent properties. The density of titanium is 4.54g/cm3, which is 43% lighter than steel and slightly heavier than the prestigious light metal magnesium. The mechanical strength is about the same as that of steel, twice that of aluminum and five times that of magnesium. Titanium is resistant to high temperatures, with a melting point of 1942K, which is nearly 1000K higher than gold and nearly 500K higher than steel.

Standard of titanium wire
GB/T, GJB, AWS, ASTM, AMS, JIS
Grade of titanium wire
American label number: GR1, GR2, GR3, GR5, GR7, GR12, Ti6AL4V ELI, Ti6AL7Nb, Ti13Nb13Zr, Ti1533
Russian label number: BT1-00, BT1-0, BT1-2, etc.
Domestic brands: TAO, TA1, TA2, TA3, TA4, TA5, TA6, TA7, TA9, TA10, TB2, TC1, TC2, TC3, TC4, TC4ELI, TC11,
Surface of the titanium wire
Pickled surface Bright surface
Application of Titanium wire
Military, medical, sporting goods, glasses, earrings, headgear, electroplating hangers, welding wire and other industries.
State of titaniu Plate

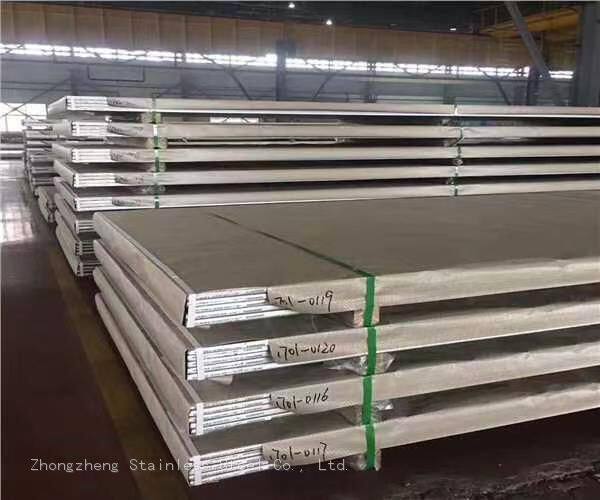

Annealed state (M) Hot processed state (R) Cold processed state (Y) (annealed, ultrasonic flaw detection) Solid solution state(ST)钢板9

Company Profile

Over the years, we have worked hard to promote and realize the modernization of alloy sales, and actively cultivated and enhanced the ability of employees' independent innovation. All-round renovation and upgrade of the original business site, facilities and equipment, and modern computer management. Hope to establish long-term partnerships and win market reputation.

We are increasing thescale of trade and customers through out the world. With our good reputation we have won the trust of our customers. It's helps the modernisation of our country and promote the economic and technical exchanges with the rest of the world. We also look forward to enhance the friendship with other countries and make positive impact.

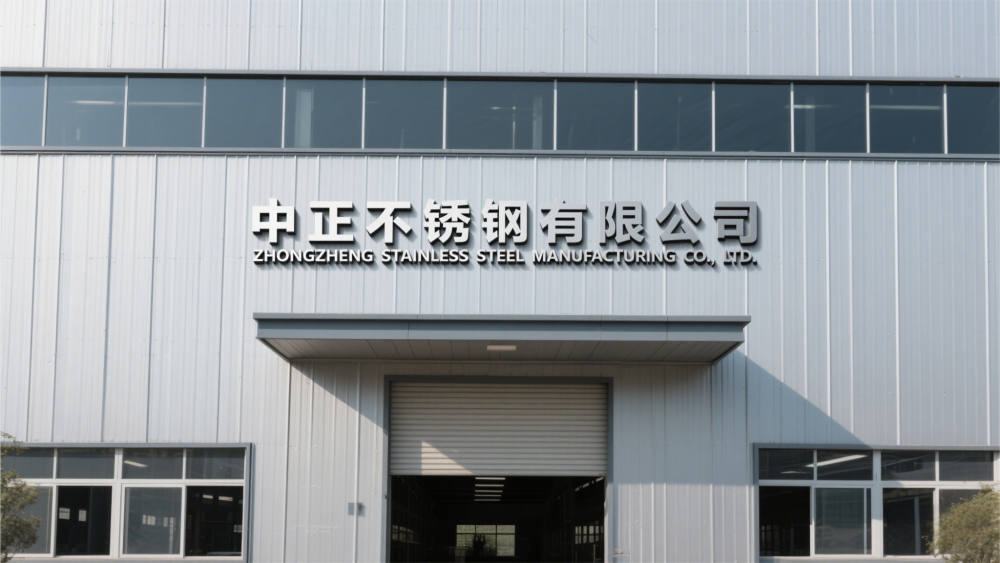

We warmly hope that you and us together, hand in hand, create a glorious future.厂房3

FAQ

How can I contact with your company?
telephone.

What is your working time?

Monday-Friday : 8:30AM-17:00PM (Beijing time, GMT+08.00)

We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls e-mail us during our holiday if u have any questions.





What is your payment terms?

T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal



What is the lead time?

Usually sample lead time is 15 days after payment has been confirmed.
