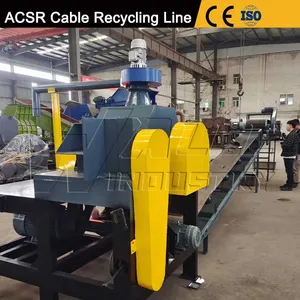

Scrap ACSR Wire Crushing And Sorting Machine Recycling Machine

Aluminum Stranded Wire Cutting Machine
The Aluminum Stranded Wire Cutting Machine is a specialized industrial equipment designed for precise and efficient cutting of aluminum stranded wires or cables into specified lengths. The dust catcher will keep the environment friendly, meanwhile, the magnetic separator will sort the Al from steel chips. after cutting the final products could under 30 mm.

Key Features:

1. High Precision Cutting

• Equipped with motor-driven systems and programmable logic controllers (PLCs) to ensure accurate length control .

• Suitable for cutting multi-strand aluminum wires with diameters ranging from 10mm to 50mm.

2. Automated Operation

• Integrated touch-screen HMI (Human-Machine Interface) for easy parameter setting and real-time monitoring.

• Automatic feeding, measuring, and cutting processes minimize manual intervention.

3. Durable Construction

• Heavy-duty steel frame with hardened alloy blades for long-lasting performance.

• Anti-vibration design ensures stability during high-speed operations.

4. Safety & Efficiency

• Emergency stop function and protective guards comply with CE safety standards.

• Capable of processing up to 200 cuts per minite, significantly improving production efficiency.

Applications:

• Preparation of scrap aluminum conductors for power lines, transformers, and substations.

• Custom-length cutting for recycling overhead transmission lines or grounding systems.

Technical Specifications:

• Power Supply: 380V/50Hz (3-phase)

• Cutting Length Range: 0.5m - 20m

• Motor Power: 11kW

• Blade Material: Tungsten Carbide

• Weight: Approx. 1200kg

Advantages:

• Reduces material waste through optimized cutting algorithms.

• Low maintenance requirements with self-lubricating components.

• Compatible with various scrap stranded wire configurations (e.g., ACSR, AAC, AAAC,AACSR).
