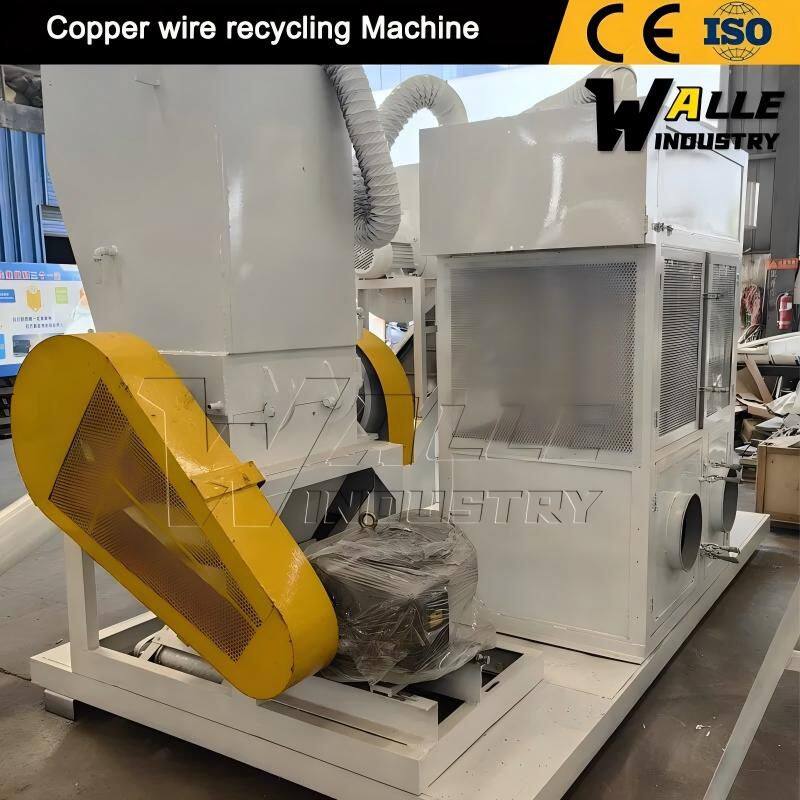

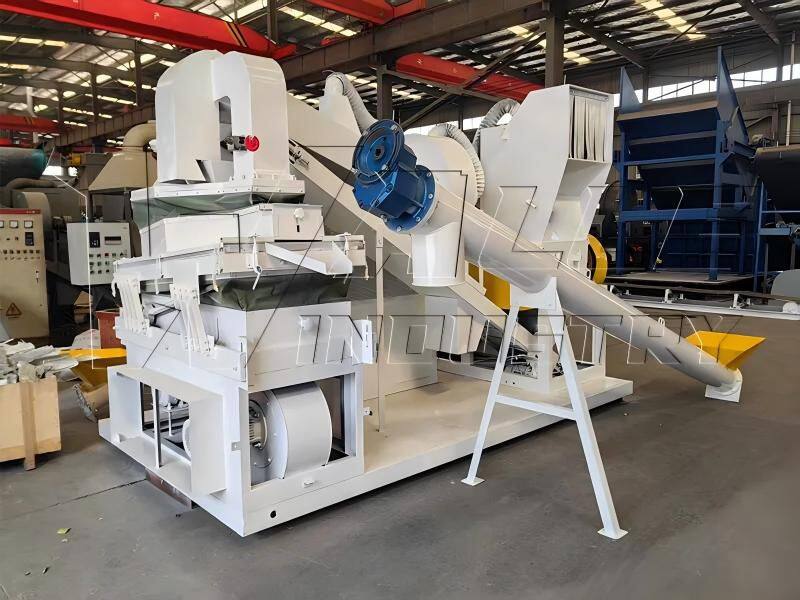

Scrap Cable Copper Granulator Aluminium Wire Granulator Machine for Copper Separation

 The more detail and high capacity of the machines assemble, pls connect us for more .1.Dry method recycling rate is up to 98%.                                                                                                                                                                    2.Full autaomtic 1 operator,the whole system controlled by the PLC                                                                                                                                  3. integrated type , cut off the power and improve the capacity.                                                                                                                                          4. The separating parts take the gravity separator combined with the electrostatic separator machine.                                                                              5. There is equipped with the jet filter bag dust removal                                                                                                                                                      6. The cutter of wire chopping machine takes the steel alloy D2 or  SKD-11 keeps the long operation and uptime.
7. It works to  the coarse wires.like the car wire, and other kind of tiny wire.

A Copper Wire Granulator, also known as a Copper wire recycling machine, is a specialized recycling system designed to efficiently separate copper from plastic/rubber insulation in waste cables and wires. It plays a vital role in the e-waste recycling and metal recovery industries, transforming scrap materials into reusable resources with high economic and environmental value.

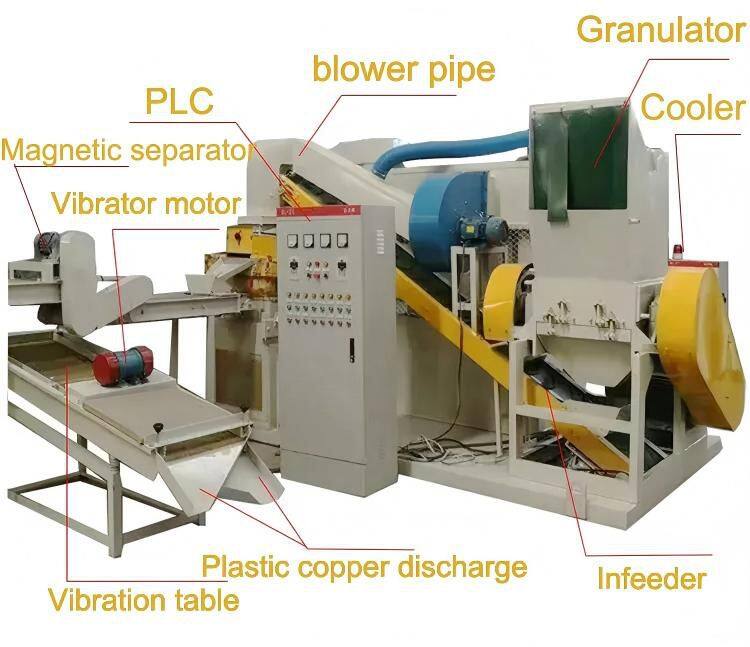

Cable Shredder

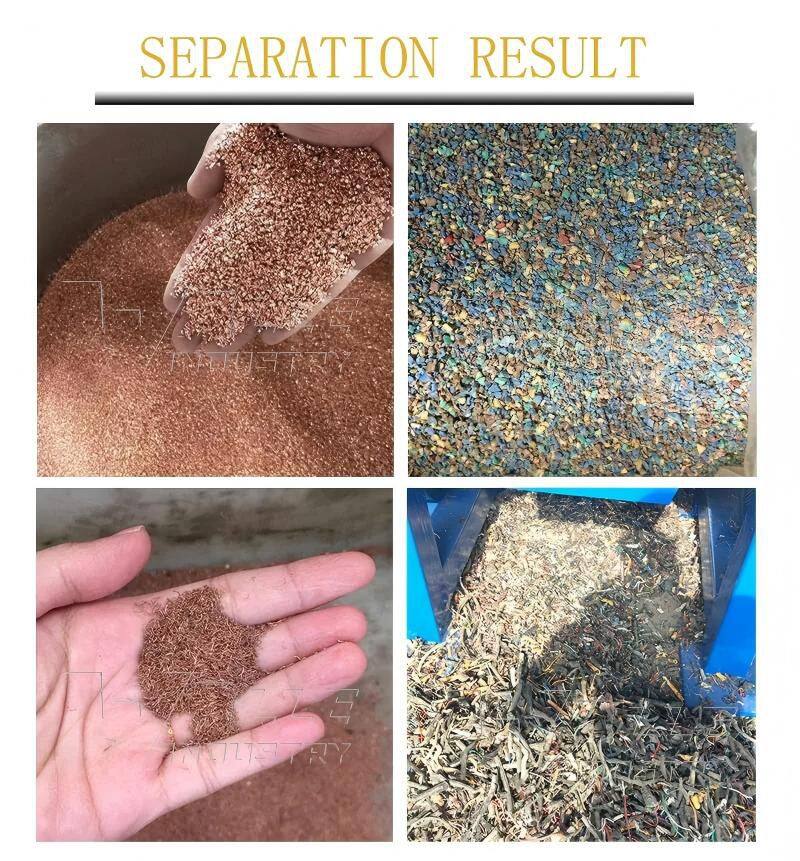

Function: Cuts scrap wires into small granules (copper particles mixed with plastics, called "copper rice").

Vibration table
filter oversize particle to secondary grinding.

Separating stage
1. Air gravity separator :Utilizes density differences (copper: 8.9 g/cm³ vs. plastic: 1.0-1.4 g/cm³) to separate lighter plastics via airflow.
2. Electrostatic separator:
Principle: Separates fine copper powder and plastics using conductivity differences in a high-voltage electrostatic field.
Application: Ideal for complex mixtures (e.g., thin copper wires with PVC residues
3. Straight table: to sort the pink coper from yellow

DUST PURIFICATION
The Impulse filter dust collector or bag type to control the dust flying.
