1. Introduction and application of testing machine

l  Adopting   precise auto control and data acquisition system to realize fully   digital adjustment to data acquisition and control process. It can test   max. bearing tensile, compression, tensile strength, deformation,   elongation and other technical specifications;

l  After   test, the above parameters can be calculated automatically through  main  controller according to the test parameters, which are set before  test  and meantime display the corresponding test results. All test  parameters  can be saved and inquired after test, also can be connected  with  printer to print test reports.

2. Main functions of testing machine:

l  with function of automatic return to original position, intelligently, efficiently, quickly;

l  with limit protection function of any working position and overvoltage, over current protection functions, reliable, safe;

l  With strong test data, which can save, inquire and retrieve test data anytime.

l  with   many control modes of constant speed control to force, stress,   deformation, strain, stroke, load, elongation, displacement and low   cycle and user self-programming control;

l  Switch   among many test curves: stress-strain curve, load-time curve,   deformation-time curve, load-displacement curve. Partial enlargement,   overlap and comparison.

3. Introductions of test method

Definition

Crushing   strength: the applied maximum compressive load at which an iron ore   pellet is broken completely, and which is expressed as the mean value of   all measurements of test sample.

Taking of sample

The   test sample (test pieces) for determining the crushing strength shall   by obtained at random, for example by the use of a random selection   plate, on about 1kg of the sample for physical testing. The test sample shall be oven dried at 105±5℃ and cooled to room temperature before testing.

Number of test pieces (iron ore pellets)

Sixty or more test pieces, or as agreed upon between the interested parties, shall be tested for each sample.

Test procedure

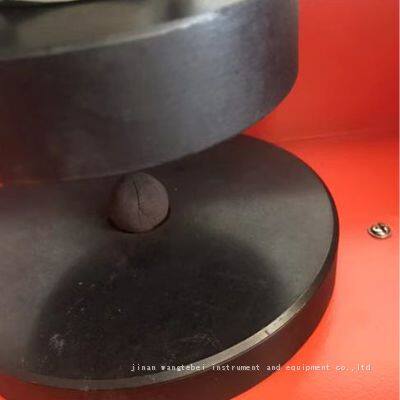

Place   a test piece (single pellet) at the approximate centre of the   surface-hardened portion of the lower platen. Apply the load at a   constant rate between 10 and 20mm/min throughout the test period.

Record the maximum load, at which the test piece undergoes complete breakage, to at least one decimal place, in decanewtons.

Note:   complete breakage is ensured by continuing to apply the load until the   platen gap has closed to 50% of the average test piece size.

Clean the platens thoroughly before the next test piece(single pellet) is tested.

Repeat the procedure on the remaining test pieces.

4. Main technical specifications of testing machine:
