Skilled Scrap Copper Wire Granulator Device Used Power Cable Separation Equipment for Shredding and Breaking

Skilled Scrap Copper Wire Granulator Device Used Power Cable Separation Equipment for Shredding and Breaking photo-1
Skilled Scrap Copper Wire Granulator Device Used Power Cable Separation Equipment for Shredding and Breaking photo-2
Skilled Scrap Copper Wire Granulator Device Used Power Cable Separation Equipment for Shredding and Breaking photo-3
Skilled Scrap Copper Wire Granulator Device Used Power Cable Separation Equipment for Shredding and Breaking photo-4
Skilled Scrap Copper Wire Granulator Device Used Power Cable Separation Equipment for Shredding and Breaking photo-5
US$ 18600 ≥1 Set
Key Specifications
Get Latest Price
Material:
Alloy Steel
Certification:
CE, ISO
Drive:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
15 days
Material Alloy Steel
Certification CE, ISO
Drive Electric
Usage Metal
capacity 300-400KG/H
area 15㎡
power 52KW
loading time 15 days
Transport Package 20GP
Specification WL-T300 TURBO
Trademark WALLE INDUSTRY
Origin CHINA
Basic Info.
Model NO.
WL-600
Automation
Automatic
Certification
ISO, CE
Screw
Multi-Screw
Knife Type
Flat Knife Crusher
Recycling Product
PCB, Copper Cable Wire
Capacity
200-300 Kg/H
Recycle Rate
99%
Power
45kw
Opearator
1
Weight
2800 Kgs
Transport Package
Wood Box
Specification
5800*2150*3000 mm
Trademark
walle industry
Origin
China
HS Code
8479820090
Production Capacity
10set/Month
Product Description

Product Description


TypepowerWorking capacitytipsweight
RK508.69 kw50-60 kg/hcopper purity 99%. cutter material SKD-11 or D2. cutter four sides use1000 KGS
RK40028 kw70-100 kg/h1900 kgs
RK60042 kw200-300 kg/h3200 KGS
RK80068 kw500-600 kg/h6500 kgs
RK1000128 kw800-1000 kg/h12500 kgs
RK1500232 kw1200-2000 kg/h23000 kgs
The more detail and high capacity of the machines assemble, pls connect us for more .

Our Advantages

1.Dry method recycling rate is up to 98%.                                                                                                                                                                    2.Full autaomtic 1 operator,the whole system controlled by the PLC                                                                                                                                  3. integrated type , cut off the power and improve the capacity.                                                                                                                                          4. The separating parts take the gravity separator combined with the electrostatic separator machine.                                                                              5. There is equipped with the jet filter bag dust removal                                                                                                                                                      6. The cutter of wire chopping machine takes the steel alloy D2 or  SKD-11 keeps the long operation and uptime.
7. It works to  the coarse wires.like the car wire, and other kind of tiny wire.

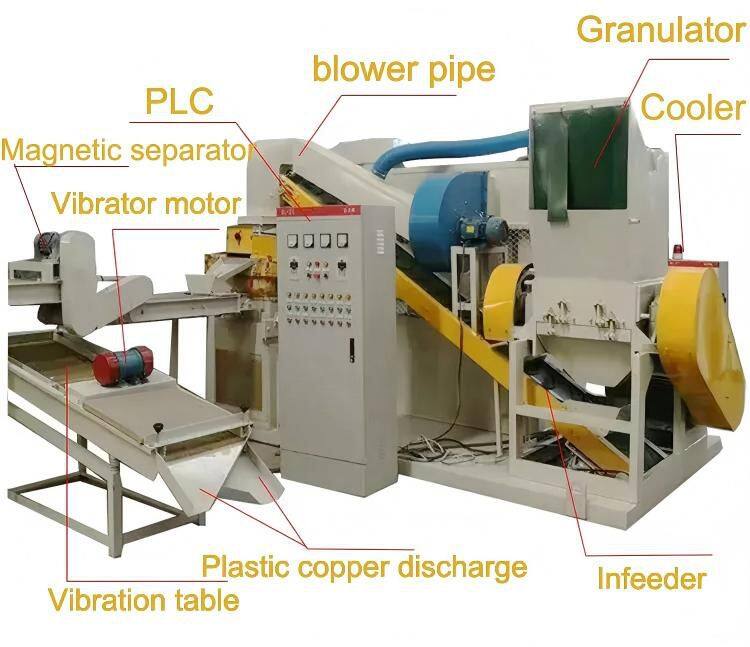

Copper Wire Granulator, also known as a Copper wire recycling machine, is a specialized recycling system designed to efficiently separate copper from plastic/rubber insulation in waste cables and wires. It plays a vital role in the e-waste recycling and metal recovery industries, transforming scrap materials into reusable resources with high economic and environmental value.

Cable Shredder
Function

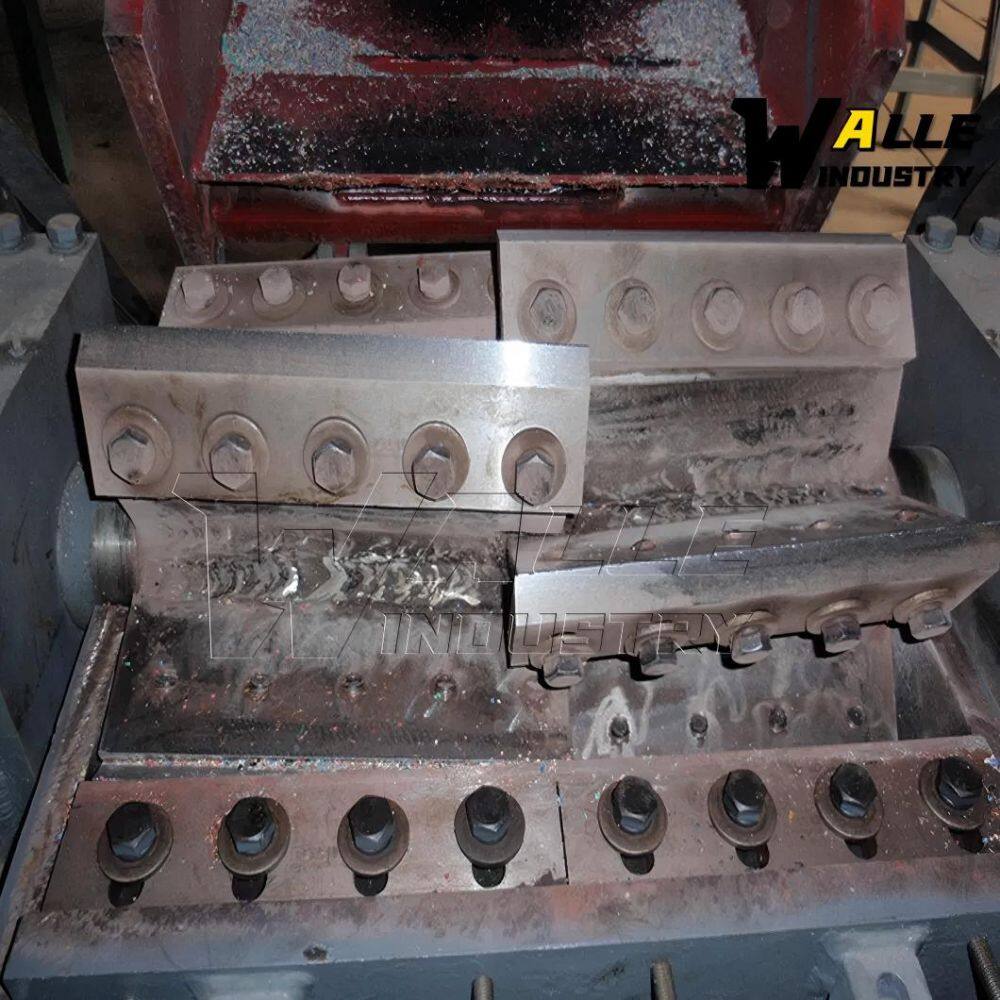

: Cuts scrap wires into small granules (copper particles mixed with plastics, called "copper rice").

Vibration table
filter oversize particle to secondary grinding.

Separating stage
1. Air gravity separator :Utilizes density differences (copper: 8.9 g/cm³ vs. plastic: 1.0-1.4 g/cm³) to separate lighter plastics via airflow.
2. Electrostatic separator:
Principle:
 Separates fine copper powder and plastics using conductivity differences in a high-voltage electrostatic field.
Application: Ideal for complex mixtures (e.g., thin copper wires with PVC residues
3. Straight table: to sort the pink coper from yellow

DUST PURIFICATION
The Impulse filter dust collector or bag type to control the dust flying.

Detailed Photos

1Scrap-Copper-Cable-Wire-Recycling-Equipment-Waste-Copper-Wire-Recycling-Machine (4)(1)Scrap-Copper-Cable-Wire-Recycling-Equipment-Waste-Copper-Wire-Recycling-Machine (3)(1)Scrap-Copper-Cable-Wire-Recycling-Equipment-Waste-Copper-Wire-Recycling-Machine(1)Scrap-Copper-Cable-Wire-Recycling-Equipment-Waste-Copper-Wire-Recycling-Machine (1)(1)
