[scope of application ]：
Scope of application: used for liquid permeability test of thin nonwoven fabrics for sanitary use, such as womens sanitary napkins, diapers and other covering materials.
[meet a criterion ]：
FZ/T60017 "Test method for liquid permeability of thin nonwoven fabrics for sanitary use"
GB/T24218.8 "Liquid Penetration Time Determination"
GB/T24218.13 "Determination of multiple penetration time of liquids"
GB/T24218.14 "Determination of moisture return of covering materials" and other standards.
[Instrument Features]:
1, the main parts are made of stainless steel, durable;
2. Inductive electrode material is acid and alkali resistant;
3. The instrument automatically records the time, and the test results are displayed automatically, which is simple and practical;

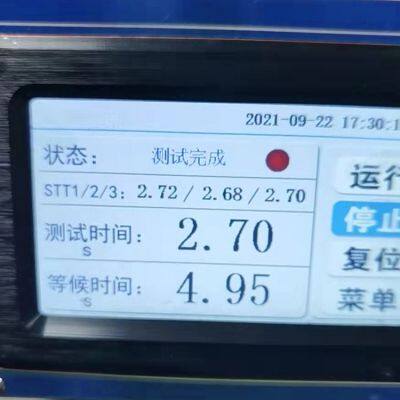

4, color touch screen display and control, Chinese and English interface, menu mode;
5. Test report to view the test results.
[technical parameter] ：
1. Volumetric tube capacity: 50ml;
2. Control the liquid flow rate: 25ml flows in (3.5±0.25) s;
3. Distance between funnel tip and sample: adjustable;
4, substrate material: plexiglass;
5, penetration plate size: 100mm x 100mm x 25mm;
6, sample size: 125mm x 125mm;
7, timer: 0~9999.99s, accuracy: 0.01s;
8. Total weight of penetration plate: 500g;
9, power supply: AC220V±10% 50HZ;
10. Power: 50W;
11. Weight: 5kg
12, volume: 240 x 400 x 320mm;
