ABB UDD406A 3BHE041465P201 Processor Module

ABB UDD406A 3BHE041465P201 Processor Module thumbnail-1
ABB UDD406A 3BHE041465P201 Processor Module thumbnail-2

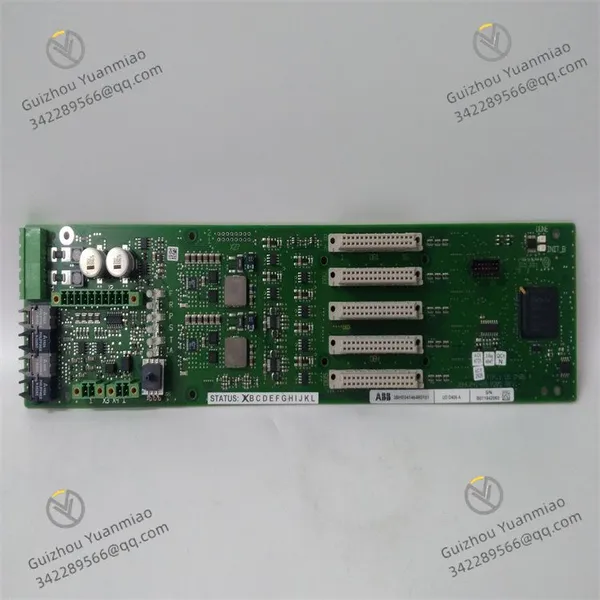

ABB UDD406A 3BHE041465P201 Processor Module photo-1

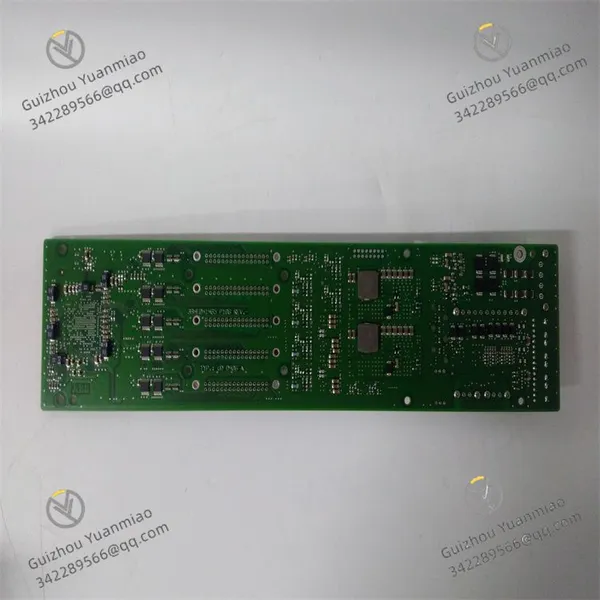

ABB UDD406A 3BHE041465P201 Processor Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Phase:
Other, Global universal model
Brand:
ABB
Cooling Method:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Phase Other, Global universal model
Brand ABB
Cooling Method Other, Global universal model
Frequency Characteristics Other, Global universal model
Winding Type Other, Global universal model
Shape of Core Other, Global universal model
Core Other, Global universal model
Power Supply DC 24V (±20%)
Dimensions 10cm×15cm×8cm
Operating temperature -25℃~+60℃
ABB UDD406A 3BHE041465P201Functional FeaturesHigh-performance Drive and Control Core
As a key module in industrial automation, UDD406A integrates a high-speed processor and dedicated drive chips, supporting real-time control of multi-axis servo systems. It is suitable for high-precision motion control scenarios (e.g., robotic joint drives, CNC machine tool spindle adjustment). The built-in Digital Signal Processing (DSP) unit enables microsecond-level command response, meeting the precise control requirements for high-speed dynamic loads.
Multi-protocol Compatibility and Communication Expansion
Supports industrial Ethernet protocols (e.g., EtherCAT, Powerlink) and traditional fieldbuses (Modbus, CANopen), enabling seamless docking with PLC and DCS systems. For example, connecting multiple servo motors via EtherCAT achieves sub-millisecond synchronous control to ensure coordination of multi-axis movements.
Intelligent Diagnosis and Protection Mechanism
Equipped with hardware watchdog, overcurrent/overvoltage/overheat protection circuits, and software-level fault tracing algorithms (e.g., real-time current waveform analysis), it quickly locates drive system anomalies. It also supports remote monitoring interfaces for real-time early warning of equipment health status.
Modular Design and Flexible Adaptation
Compatible with control systems like ABB AC800M and PLCnext, it supports hot-swappable power module expansion (e.g., adapting to servo motors of different power ratings). Parameters can be configured with one click via ABB Studio programming software, shortening system debugging cycles.
Technical Specifications
Parameter Category Specification Details
Communication Interfaces 2× Ethernet ports (10/100/1000Mbps, supporting EtherCAT/Powerlink), 2× RS485, 1× CANopen
Protocol Support Modbus RTU/TCP, CANopen, EtherCAT, Powerlink, OPC UA
Drive Capability Maximum output current: 6A (continuous)/12A (peak), suitable for 200-400V AC servo motors
Control Algorithms Supports vector control (FOC), direct torque control (DTC), and position/speed/torque three-closed-loop control
Storage and Processing 512MB RAM + 1GB Flash, ARM Cortex-A53 processor, real-time operating system (e.g., VxWorks)
Power Supply DC 24V (±20%) or AC 200-240V, power consumption ≤40W
Mechanical Dimensions Approximately 10cm×15cm×8cm (DIN rail mounting, supporting vertical/horizontal installation)
Environmental Adaptability Operating temperature: -25℃~+60℃, protection class IP20, vibration resistance (5-200Hz, 5g), dust/oil resistance

UDD406A 3BHE041465P201 (3)

UDD406A 3BHE041465P201 (1)

Application FieldsHigh-end Manufacturing and Robotics

  • In automotive welding robot systems, connecting 6-axis servo drives via EtherCAT achieves motion control with repeat positioning accuracy of ±0.02mm.

  • In electronic device assembly lines, it collaborates with vision systems to complete precise part grabbing and placement, meeting micron-level positioning requirements.

CNC Machine Tools and Precision Machining
As a spindle drive module, it supports dynamic torque compensation during high-speed cutting (maximum speed 10,000rpm). Combined with PLC G-code parsing, it enables smooth control of complex surface machining.
New Energy and Special Equipment

  • In wind turbine pitch systems, it collects wind speed, pitch angle, and other signals, communicates with the main control PLC via Profinet, and achieves adaptive adjustment of pitch angles.

  • In shield machine drive systems, it supports multi-motor synchronous control, adapting to high-load fluctuation scenarios in underground construction.

Logistics and Automated Production Lines

  • Lift/transverse drive control for intelligent warehouse stacker cranes, linkage with conveyor line PLC via CANopen to achieve efficient cargo access scheduling.

  • Multi-axis synchronous control for packaging machinery (e.g., coordination of sealing and cutting actions) to improve production line capacity.

Differentiated Advantages over Similar ProductsHigh Power Density Integration

  • 30% higher drive power in the same volume, suitable for compact equipment (e.g., collaborative robots, small machining centers), reducing control cabinet space occupation.

Adaptive Control Algorithms

  • Built-in load inertia recognition and feedforward compensation algorithms adapt to different working conditions without manual debugging (e.g., speed fluctuation ≤0.5% during workpiece load changes), reducing debugging difficulty.

Wide-temperature and Anti-interference Design

  • -25℃ low-temperature startup capability and industrial-grade EMC protection (compliant with IEC 61800-3 standard), suitable for outdoor equipment in cold northern regions and metallurgical scenarios with strong electromagnetic interference.

Edge Computing and Cloud Connectivity

  • Supports ABB Ability™ platform interfaces, enabling real-time upload of drive system data (e.g., motor temperature, energy consumption) to the cloud for predictive maintenance (e.g., early warning of bearing wear).
