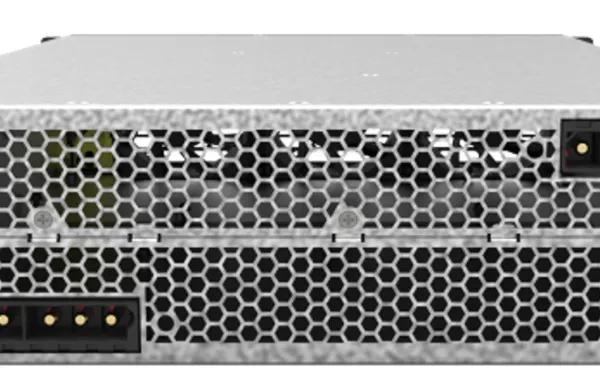

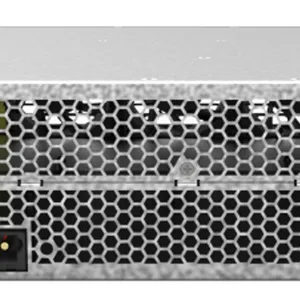

Help CenterSIC-40kw Power Module for EV Chargers EV Charging Stations and Battery Swapping Stations
Related Products
-
SIC-50kw Power Module for EV Chargers EV Charging Stations and Battery Swapping StationsUS$ 800 - 850MOQ: 50 Units -
10kw Power Module for EV Chargers EV Charging Stations and Battery Swapping StationsUS$ 365 - 480MOQ: 20 Pieces
-
40kw Power Module for EV Chargers EV Charging Stations and Battery Swapping StationsUS$ 665 - 780MOQ: 10 Pieces
-
30kw Power Module for EV Chargers EV Charging Stations and Battery Swapping StationsUS$ 460 - 550MOQ: 10 Pieces
-
110kw Power Module for Power Conversion System Sand Energy Storage SystemsUS$ 4700 - 5800MOQ: 10 Pieces
X40133S3 The smart AC/DC charging module is designed for high power EV charging equipment, applied the world’s latest power electronic control topology, with good performance and power density, achieves high efficiency, wide output voltage range to meet today and future EV charging requirement, wide operation temperature range makes it can be applied in hot weather, thorough gel filled technology ensures higher protection.
Key Features
ØGel filled ensures stronger environmental suitability
ØDynamic protection algorithm provides better protection strategy and higher reliability
Ø3 phase without neutral eliminates the risk of high neutral currents
ØBuilt-in voltage discharge circuit
ØZero standby power consumption (external control)
ITEMS |
PRODUCT MODEL |
X40133S3 |
AC Input |
Voltage Range |
260-485Vac |
Current Range |
0-80A |
|
Wiring |
Three Phase, 3W+PE |
|
Frequency |
50/60Hz +/- 5Hz |
|
THDi |
＜5%@50%~100% load, ＜3%@p.n. |
|
Power Factor |
＞0.99@50%~100% load |
|
Standby Power |
0W with external control |
|
DC Output |

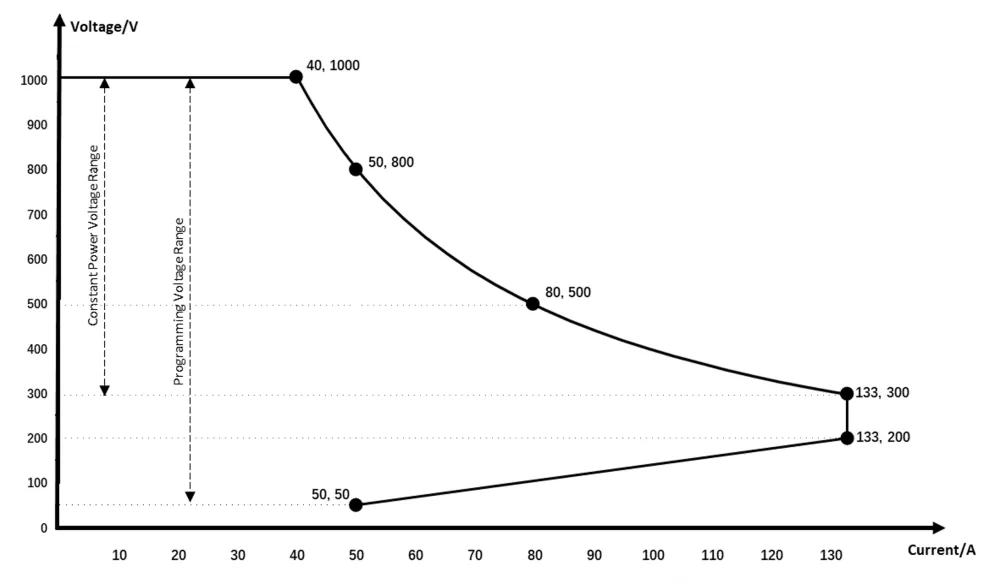

Voltage Range |
50-1000Vdc |
Nominal Power |
40kW at 300-1000Vdc |
|
Max Current |
133A |
|
Conversion Efficiency |
Highest ＞96.5%, Rated ＞95.5% |
|
Short Circuit Protection |
Current limit when in output short circuit, auto recovery |
|
Voltage Regulation |
Within +/- 0.5% |
|
Current Regulation |
Within +/- 1% |
|
Communication |
Communication |
CAN |
Protocols |
XY Power Protocol, other protocols in market optional |
|
Parallel Installation |
60 Modules max. |
|
Module Address |
Support software setting and hardware setting |
|
Operation Condition |
Operation Temp. |
-40℃~+75℃ (derating from 55℃ to 75℃) |
Storage Temp. |
-40℃~+85℃ |
|
Relative Humidity |
＜ 95% RH, non-condensing |
|
Altitude |
Under 2000m with nominal power |
|
General Specifications |
Dimension |
300*437*84(W*D*H, mm, w/o handle) |
Weight |
＜ 20kg |
|
IP Protection |
IP20 |
|
Cooling |
Force Air |
|
Noise |
Under 65dB at full load @ 25℃ |
|
Package |
1pcs/carton; 28pcs/pallet or customized |
Lead Time: 30 days for below 500 units, mass quantity to be negotiated
Supply Quantity: monthly 20000 units max.
