Product Description

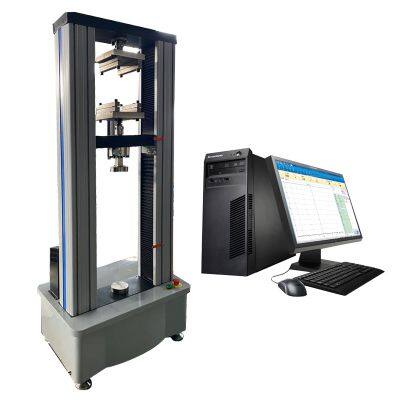

electronic universal tensile testing machine
1 Introduction
l Suitable for tension, compress, shear, peeling, tear, test
l Attractive appearance, easy operating, stable and reliable
l Dual test space, upper space for tension test, bottom space for compress test
l Crossbeam speed can reach up to 500mm/min, suitable for most test speed
l Low noise during test
l Suitable for industries of metal manufacturing, non-metal manufacturing, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments
2. Test method
GB/T 2611 testing machine General technical requirements
GB/T 16491 electronic universal testing machine
GB/T 16825.1 Inspection of static single-axis testing machines - Part 1 : Tests and s
ISO 7500-1 metallic materials-verification of static uniaxial testing machines- parts 1: tension/compression testing machines-verification and calibration of the force-measuring system
GB/T 228 metal materials tensile test method at room temperature
GB/T 232 metal material bending test method
GB/T 7314 metal materials room temperature compression test method
3. Technical parameters
No | Item | Specification | ||
1 | Force capacity | 10KN | ||
2 | Measuring range | 1%-100%FS | ||
3 | Accuracy of force value | Less than ±1% of set value | ||
4 | Precision of displacement | 0.01mm | ||
5 | Accuracy of displacement value | ±1% | ||
6 | Deformation measuring range | 0.4%-100%FS | ||
7 | Accuracy of deformation measuring | ±0.5% | ||
8 | Resolution of deformation | 0.01mm | ||
9 | Force speed range | 0.005-5%FS/S | ||
10 | Accuracy of force speed | Less than ±1% of set value | ||
11 | Deformation speed range | 0.02-5%FS/S | ||
12 | Accuracy of deformation speed control | When set value is less than 0.05%FS,error is less than ±2.0% of set value When set value is more than 0.05%FS,error is less than ±0.5% of set value | ||
13 | Displacement speed range | 0.001-500mm/min | ||
14 | Accuracy of displacement speed | When speed is less than 0.01mm/min,error is less than ±1.0% of set value When set value is more than 0.01mm/min,error is less than ±0.2% of set value | ||
15 | Range of constant force, constant deformation, constant displacement control | 0.5%~100%FS | ||
16 | Accuracy of constant force, constant deformation, constant displacement control | When set value is less than 10%FS,error is less than ±1.0% of set value When set value is more than 10%FS,error is less than ±0.1% of set value | ||
17 | Accuracy of deformation speed | When set value is less than 0.05%FS,error is less than ±2.0% of set value When set value is more than 0.05%FS,error is less than ±0.5% of set value | ||
18 | Tension space | 700mm | ||
20 | Voltage | Single phase,220V±10%,50Hz(110V) | ||
21 | Motor power | 0.75KW | ||
22 | Dimension | 750x480x1700mm | ||
23 | Weight | 280kg | ||
China 10kn 1 ton peak load analysis residual strenght after load deflection under load testing modular design UTM computerized electronic universal testing machine equipment tester apparatus systems bench price factory manufacturer supplier vendor
UTM for tensile and compressive forces, heavy-load UTM for industrial testing, dynamic load testing UTM, modular UTM with expandable capacity, strain-controlled tensile testing, UTM for bending modulus analysis, fracture elongation testing
Company Profile
Jinan Wangtebei Instrument and Equipment Co.,ltd, located in the beautiful spring city, specialized in the design, manufacture and selling of material testing machines for metal and nonmetal materials. Our company has always been adhering to the innovative and sustainable development as the service concept, with customer satisfaction as the standard, to provide users with a complete set of material testing solutions. Our company has a professional and experienced mechanical, electrical, electronic, and software R&D and design personnel. It is extremely professional in its industry standards/requirements and keeps up to date with the development trend of the testing machine industry, thus ensuring the company's continuous improvement in new technology research and development; advanced Machining equipment, professional machining equipment operators and standardized quality management processes ensure that the company's product quality is controllable and reliable, making the production products more stable and fine. The sales/after-sales service team is professional, energetic, detailed in division of labor, and considerate in service. At present, our company mainly produces including: tensile strength tester, hydraulic universal testing machine series, electronic universal testing machine series, manhole cover testing machine, impact testing machine series (including notched broach, cryogenic bath, projector supporting impact testing), cup protrusion testing machine, manhole cover testing machine, horizontal tensile testing machine, bending testing machine , Torsion testing machine, anchor testing machine, relaxation testing machine, hardness tester, metallographic sample preparation instruments and other products, which are widely used in iron and steel metallurgy, machinery manufacturing, shipbuilding, aerospace, ordnance, automotive, railway, pressure vessel, Steel pipes, rubber, plastics, colleges, scientific research units and quality inspection institutions and other industries.
