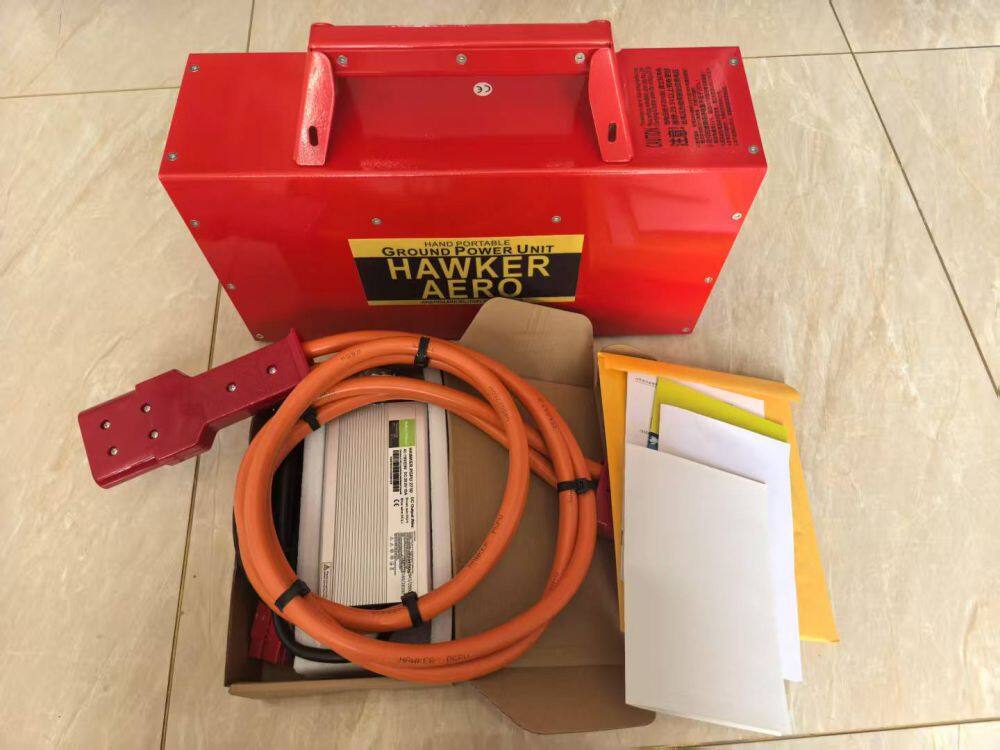

28V portable power supply | 40/80AH aircraft ground starting power supply device

1、 Overview

Portable DC starting power supply designed with high rate and high energy density lithium-ion batteries

It has a * * * structure, is easy to carry, and has * * * startup efficiency. The power supply is mainly used for small and medium-sized aircraft,

Helicopter ground start-up and power on testing; This series of products is designed specifically for navigation research and development, in * * * environment

It can still work normally. 40/80AH aircraft ground starting power supply device

2、 Technical indicators

Cell type: Lithium iron phosphate

Assembly method 9S1P

Battery weight 18Kg

Battery capacity 40Ah

Rated voltage 28.8V

Peak current 2700A

Charger input: 220~240V

Charging current 10A

Working temperature: 0~45 ℃

Output voltage 32.85V

3、 Structural composition

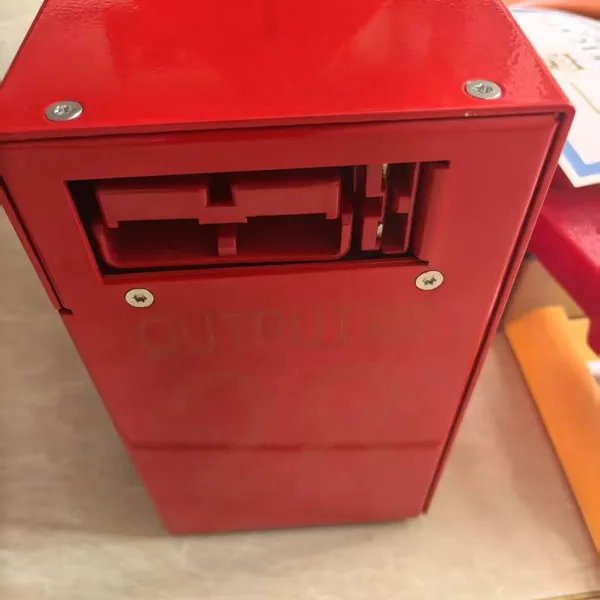

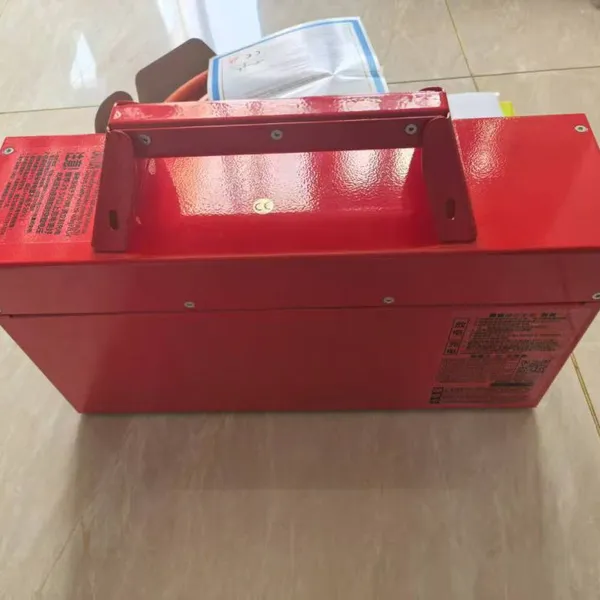

The portable DC starting power supply consists of a casing, a power display screen BMS、 Charging and discharging connectors, etc

To be composed of components.

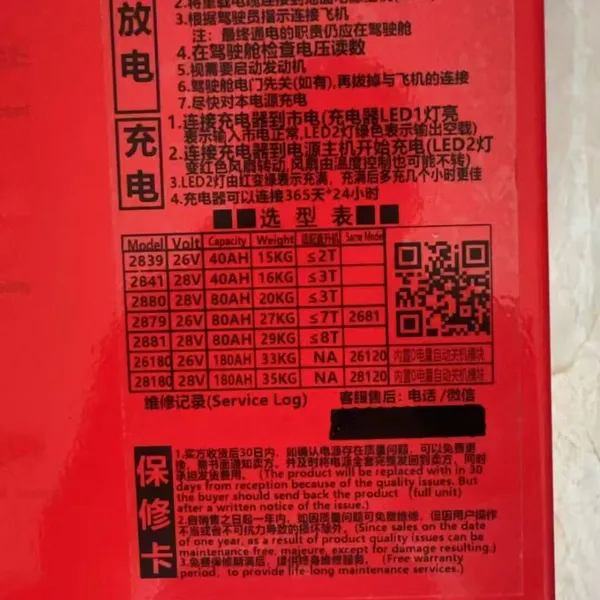

4、 Start operation

(1) Ensure that the charger has been removed

(2) Check the voltage meter of the ground power supply host

(3) Connect the cable to the power component

(4) Connect the cable to the aircraft or vehicle load plug-in end.

(5) Check the voltage reading in the cockpit.

(6) Start the aircraft or load equipment after all instrument voltage checks are correct.

(7) Unplug the connection cable to the aircraft or load after startup.

(8) Close the cab and return the portable DC starter power supply to its original position.

Special attention: When the power supply needs to be charged in extremely low ambient temperatures, please bring the power supply with you

Only when the battery temperature reaches 0 ℃ or above indoors can it be charged normally.

5、 Usage matters

Battery charging:

1. Connect the charger output plug to the battery pack charging interface,

2. Connect the charger power plug to the indoor 220V power supply.

3. After charging is complete, unplug the 220V power plug of the charger first, and then unplug the output plug of the charger

Head.

4. Be sure to unplug the input and output plugs of the charger when not charging or after charging is complete.

5. LED1 is the power indicator light, which displays red when the charger is powered on normally.

6. LED2 is the charging status indicator light. When the charger charges the battery, it displays in red,

After the battery is fully charged, it will display in green.

7. Do not cover the charger with anything while charging, and do not block the air inlet and outlet.

8. The charger should be placed in a place that is not easily accessible to children and is free from chemical corrosion.

9. When charging, the charger and battery should be used in an indoor environment with good ventilation and heat dissipation

Do not use in environments with high humidity, high temperature, flammable and explosive gases.

Precautions for battery use

1. Do not short-circuit the positive and negative terminals of the battery.

2. Non professionals are prohibited from disassembling batteries and chargers.

3. Do not use the startup power supply in a rainy environment.

4. Please read the instruction manual carefully before use.

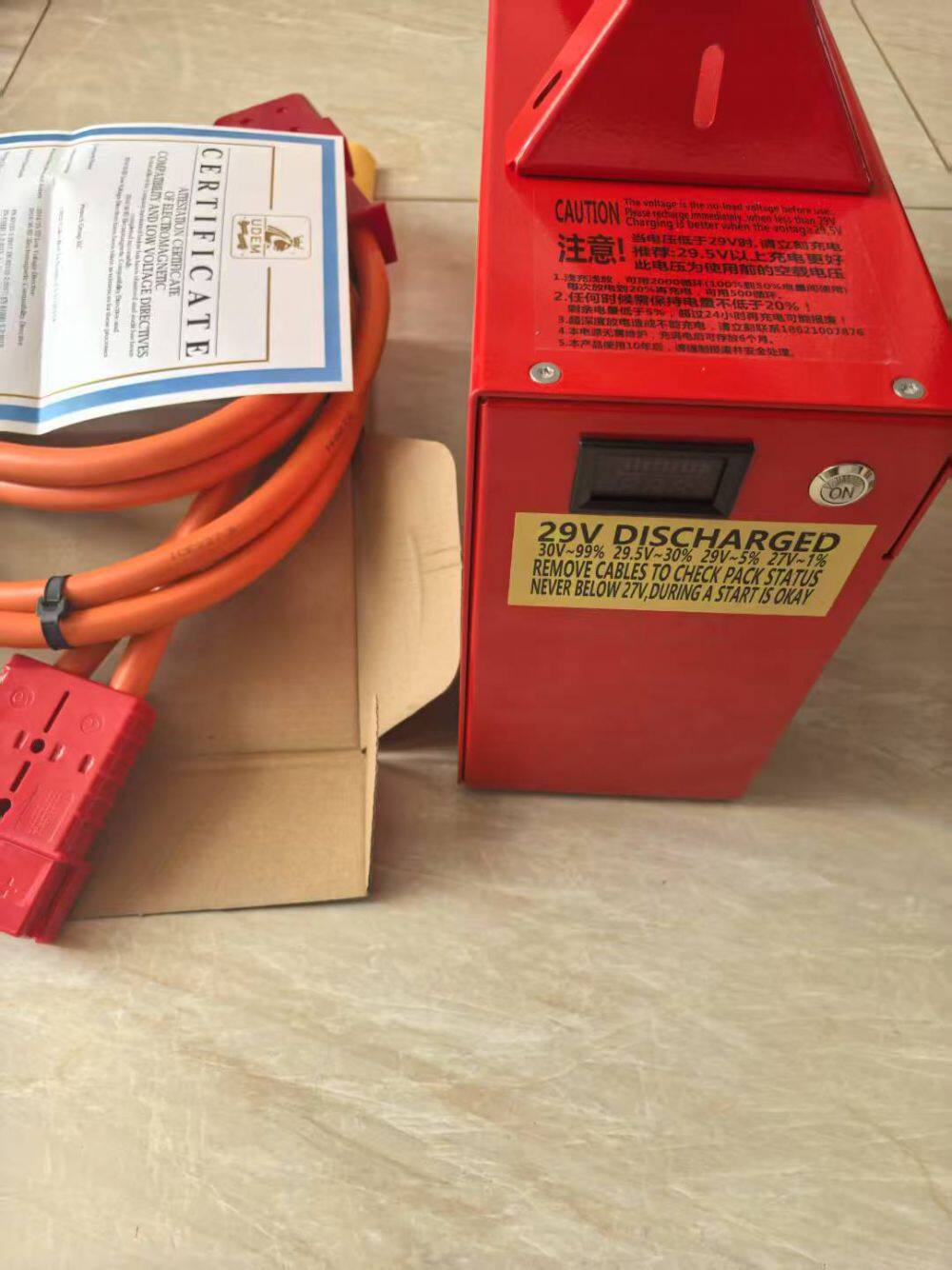

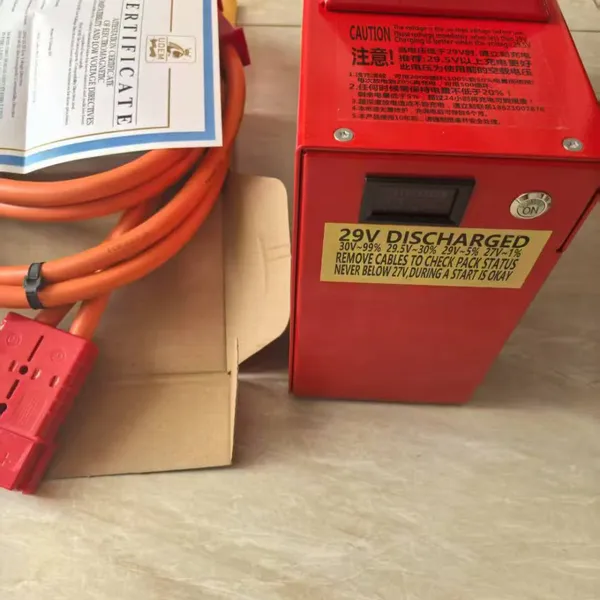

5. Before use, ensure that the battery voltage is checked through the display screen under no-load conditions, and in emergency situations

When discharging, the battery voltage should not be lower than 27.8V
