basic function
·A new type of graphical level meter with a 1/4VGA touch screen display control panel, capable of managing six oil tanks simultaneously. It supports all probes in the TLS series and is equipped with Mag1 or Mag2 for static leak detection. It also supports an external printer for serial communication and an external modem for remote Inform network communication;
· Low temperature type magnetostrictive probe rod, working temperature: -40~60℃;
· It can be connected with the information of the central management machine, and directly reflect the liquid level and oil quantity in the tank on the computer screen;
· Can be used for gasoline, diesel, liquefied gas and alcohol and other liquid level measurement.
◇ It can manage six oil tanks at the same time, support LPG tank measurement, and support fine state leak detection

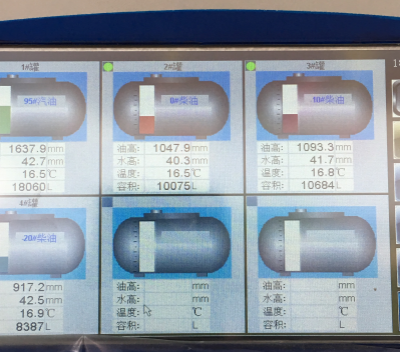

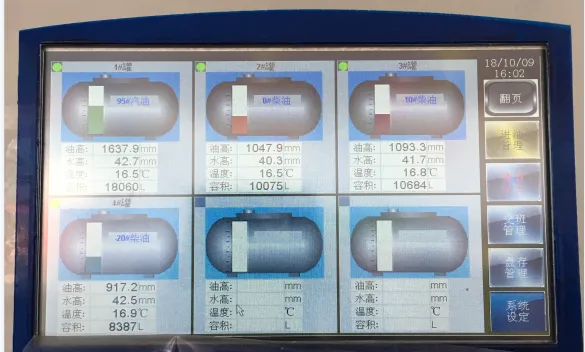

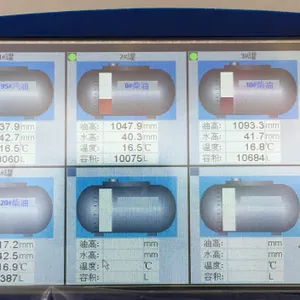

◇ 1/4 VGA graphics display, touch screen operation
◇ Dual color LED sound and light alarm on the front panel
◇ Two RS-232 /Modem serial communication ports (one of which supports RS-485)
◇ A parallel printer port
◇ An output relay
◇ Lightweight, universal graphical Chinese menu for easy query, setting, diagnostic operations
◇ Compatible with Inform software
◇ Display and print: real-time inventory report, shift handover inventory report, leak detection report, oil intake report, alarm report, diagnosis report
◇ It can manage six oil tanks at the same time, support LPG tank measurement, and support fine state leak detection
◇ 1/4 VGA graphics display, touch screen operation
◇ Dual-color LED sound and light alarm on the front panel
◇ Two RS-232 /Modem serial communication ports (one of which supports RS-485)
◇ A parallel printer port
◇ An output relay
◇ Lightweight, universal graphical Chinese menu for easy query, setting, and diagnostic operations
◇ Compatible with Inform software
◇ Display and print: real-time inventory report, shift handover inventory report, leak detection report, oil intake report, alarm report, diagnosis report
Console (secondary instrument) characteristics
Power supply voltage: AC 220V±10%
Voltage fluctuation range allowed: AC 85V-285V
Usage environment: non-explosion-proof area
Environmental temperature: -30℃ to +70℃
Humidity: 90% no condensation
Relay capacity: 5A,250V
Display: oil level height, water level height, temperature, oil volume
Certification: UL (American explosion-proof standard),
BASSEEFA (European explosion protection standard), E.P.A (U.S. Environmental Protection Agency), CIM (Chinese explosion protection standard) NIM (China National Institute of Metrology; verification/calibration)
Size and weight: 193mmX163mmX67mmm,1.2KG
Easy to install, beautiful appearance, small and moderate volume.
