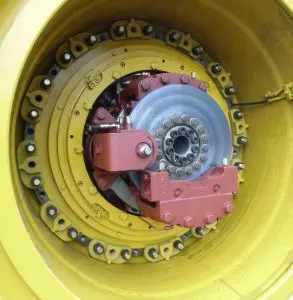

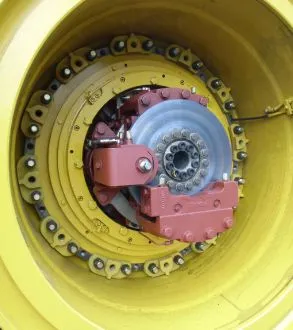

KCX Series Hydraulic Caliper Disc Brake for Mining Articulated Dump Truck

Hydraulic caliper disc brake

This brake can be equipped with an automatic compensation device for friction plate wear and a piston retraction spring. The automatic compensation device for friction plate wear can timely achieve automatic compensation for friction plate wear. The piston retraction spring can drive the piston to reset when not in the braking state, so as to maintain a certain distance between the friction plate and the brake disc, avoiding wear when not in the braking state.

MAIN FEATURE

model: KCX4075

1. Installation position: 3, 9, and 12 o'clock direction of the brake disc

2. Oil pipe interface: 0.4375 '' -20 UNF

3. Installation bolts (to be provided by the user): bolts 0.75 '' -10 UNC-2A × 65 (bolt length for reference only) 6 pieces

model: KCX4065

1. Installation position: 6 and 12 o'clock direction of the brake disc

2. Oil pipe interface: 0.4375 '' -20UNF

3. Install bolts and nuts (to be provided by the user):

Bolt 0.875 '' -9 UNC-2A × 320 (bolt length for reference only) 4 pieces

Nut 0.875 '' -9 UNC-2B, 4 pieces

BASIC PARAMETER

KCX4075 hydraulic caliper disc brake:

Brake disc diameter (mm): 406-635

Brake disc thickness (mm): 15.9

Maximum braking force (Nm): 91~116

KCX4075 hydraulic caliper disc brake:

Brake disc diameter (mm): 483-635

Brake disc thickness (mm): 25.4

Maximum braking force (Nm): 62
