Mobile Jaw Crusher for On-Site Crushing

Mobile Jaw Crusher for On-Site Crushing thumbnail-1
Mobile Jaw Crusher for On-Site Crushing thumbnail-2
Mobile Jaw Crusher for On-Site Crushing thumbnail-3
Mobile Jaw Crusher for On-Site Crushing thumbnail-4
Mobile Jaw Crusher for On-Site Crushing thumbnail-5
Mobile Jaw Crusher for On-Site Crushing photo-1
Mobile Jaw Crusher for On-Site Crushing photo-2
Mobile Jaw Crusher for On-Site Crushing photo-3
Mobile Jaw Crusher for On-Site Crushing photo-4
Mobile Jaw Crusher for On-Site Crushing photo-5
US$ 5000 - 6500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shisheng Machinery
Place of Origin:
China
Model Number:
PE-250*400
Contact Supplier Request Quote Chat Now
Zhengzhou Shisheng Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shisheng Machinery
Place of Origin China
Model Number PE-250*400
Type Jaw Crusher
Certification ISO, CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 years
Weight 2800kg
Dimension(L*W*H) 1300*1090*1270mm
Application It is suitable for hard and medium hard materials crushing process, normally as coarse and medium crushing equipment.
Condition New
Power(W) 15kw
Motor Type AC Motor
Capacity(t/h) 5-20t/h


Mobile Jaw Crusher for On-Site Crushing

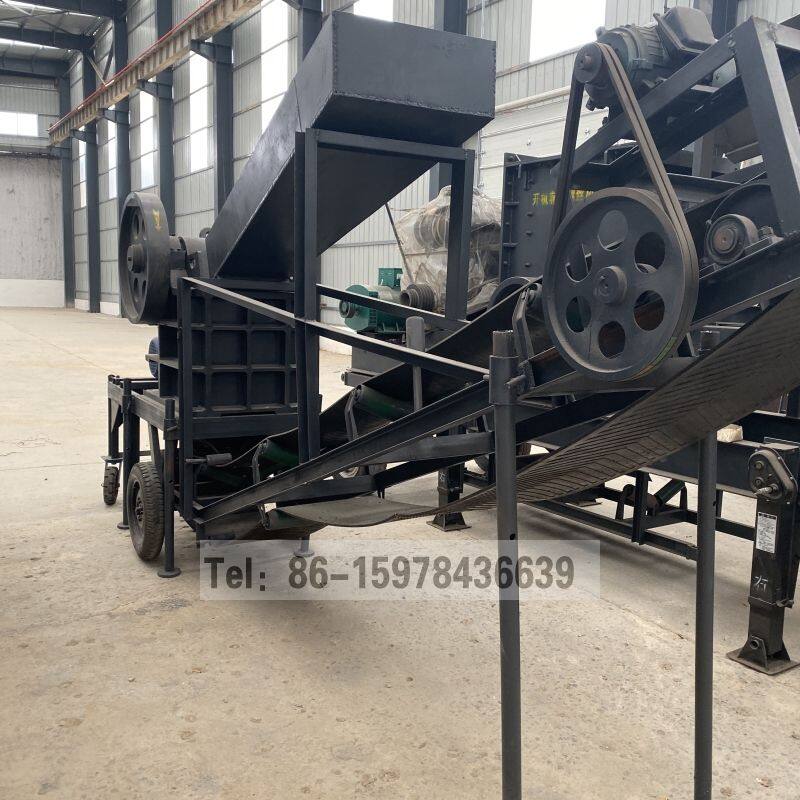

mobile jaw crusher13


Mobile Jaw Crusher for On-Site Crushing Introduction:

It's mainly used at the primary stage of material reduction in several applications, including rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, metallurgy, and chemical industries.


Mobile Jaw Crusher for On-Site Crushing are designed modular to save time and installation costs. They can be installed within a few days, minimizing on-site engineering and fabrication. We have small, medium and large pe jaw crusher for sale, used for primary secondary fine crushing, meeting different needs. The Hot sale jaw crusher models are Jaw Crusher 250*400, Jaw Crusher 400*600, Jaw Crusher 600*900, etc.

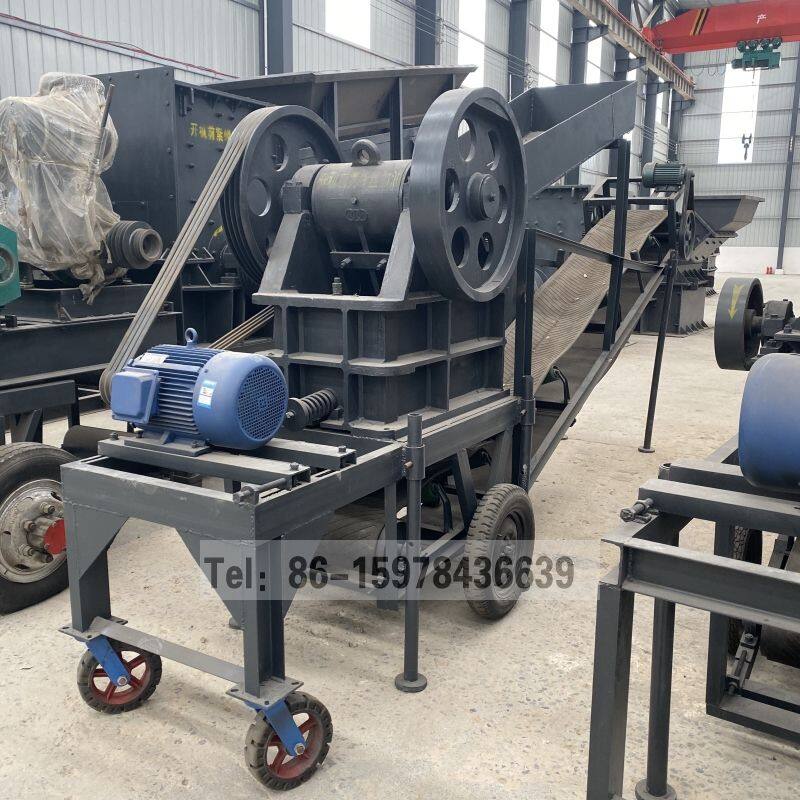

jaw crusher047


Mobile Jaw Crusher for On-Site Crushing Mobile Stone Crusher Line:

Mobile jaw crushes, or mobile jaw crushing plants as they are also called, are conventionally utilized as primary crushers in aggregates quarries, recycling applications and on  construction sites, but also in mining operations. Mobile jaw crushers can be moved around at a production site on their own, without supporting equipment – or simply transported between locations.

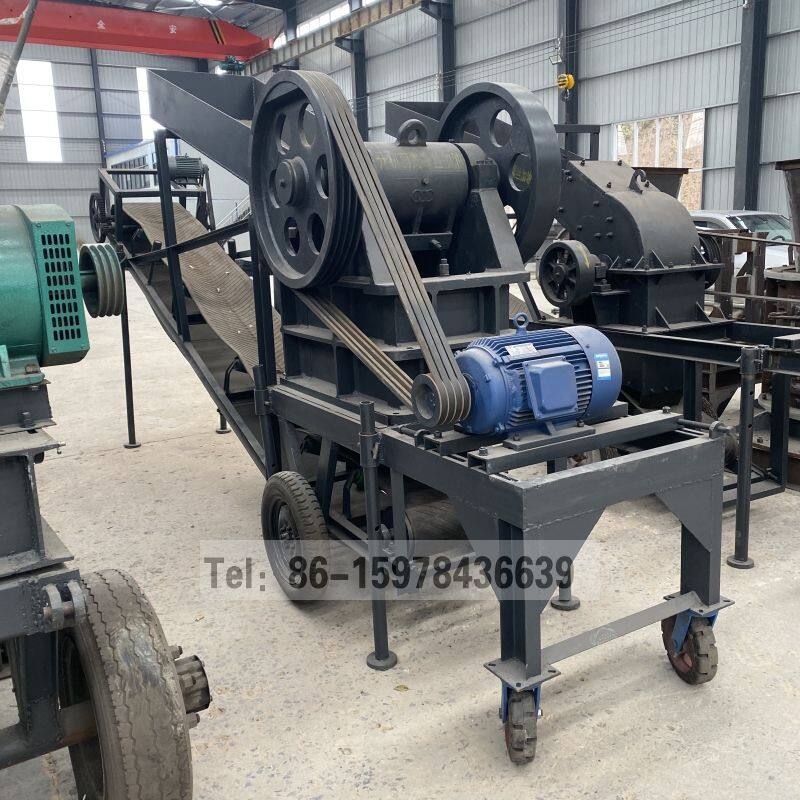

mobile jaw crusher12

01/ Installation and debugging service
We have a professional and experienced oversea installation team.

02/Training service
We do not only install and debug machine for our clients, but also train the worker, so they can operate the machineindependently.

03/Other more service
Clients have any needs or problems; our engineer can take plane and get the worksite to provide service in 48 hours.

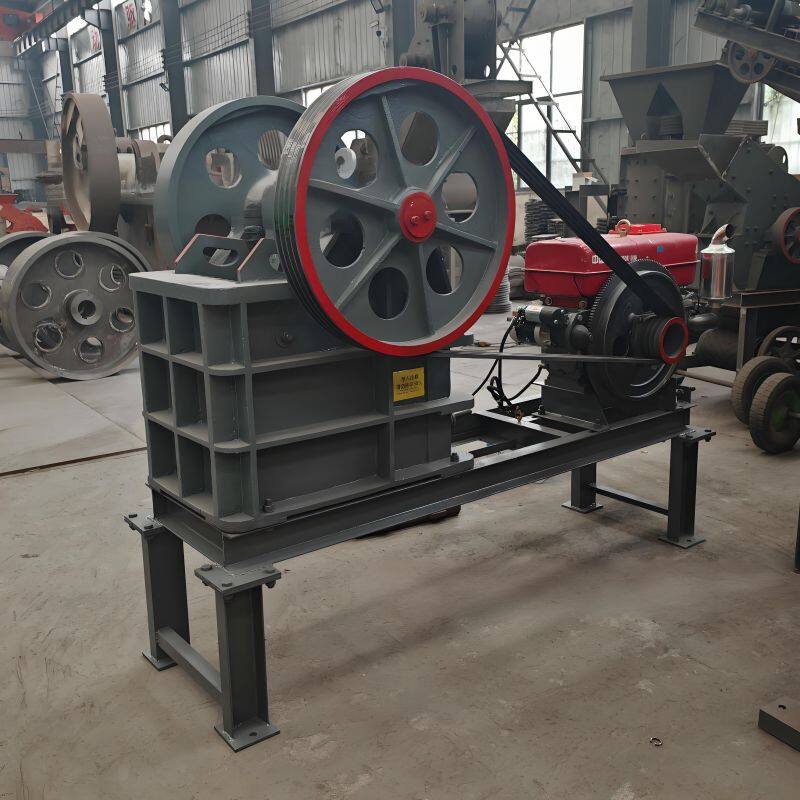

jaw crusher2


Mobile Jaw Crusher for On-Site Crushing Technical Parameter:

Model Inlet Size(mm) Max.Feed   Size(mm) Discharge Mouth   Controllable Range(mm) Capacity(t/h) Eccentric Shaft   Speed(r/min) Motor(kw) Weight(t) Overall   Size(mm)
PE-150*250 150*250 125 10-40 1-3 250 5.5 0.8 720*660*850
PE-200*300 200*300 180 15-50 2-6 260 7.5 1.2 910*750*990
PE-200*350 200*350 180 18-70 3-10 260 11 1.5 1000*870*990
PE-250*400 250*400 210 20-60 5-20 300 15 2.8 1300*1090*1270
PE-400*600 400*600 340 40-100 16-60 275 30 7 1730*1730*1630
PE-500*750 500*750 425 50-100 40-110 275 55 12 1980*2080*1870
PE-600*750 600*750 500 150-200 80-240 275 55 15.8 2070*2000*1920
PE-600*900 600*900 500 65-160 50-180 250 55 17 2190*2206*2300
PE-750*1060 750*1060 630 80-140 110-320 250 110 29 2660*2430*2800
PE-800*1060 800*1060 640 130-190 130-330 250 110 29.8 2710*2430*2800
PE-900*1200 900*1200 750 95-165 220-450 200 110 52 3380*2870*3330
PE-1000*1200 1000*1200 850 195-265 315-500 200 110 55 3480*2876*3330
PE-1200*1500 1200*1500 1020 150-350 400-800 180 160-220 100.9 4200*3300*3500
PE-1500*1800 1500*1800 1200 220-350 500-1000 180 280-355 122 5160*3660*4248
PE-1600*2100 1600*2100 1500 300-400 1300-2200 160 350-380 150.6 6210*4013*4716
PEX-150*750 150*750 120 18-48 8-25 320 15 3.8 1200*1530*1060
PEX-250*750 250*750 210 25-60 13-35 330 30 5.5 1380*1750*1540
PEX-250*1000 250*1000 210 25-60 16-52 330 30 7 1560*1950*1390
PEX-250*1200 250*1200 210 25-60 20-61 330 37 9.7 2140*1660*1500
PEX-300*1300 300*1300 250 20-90 16-105 300 55 15.6 2720*1950*1600

QQ截图20230721114715_副本
