Home > Products > Jaw Crusher > Easy Adjustment Mechanism Jaw Crusher

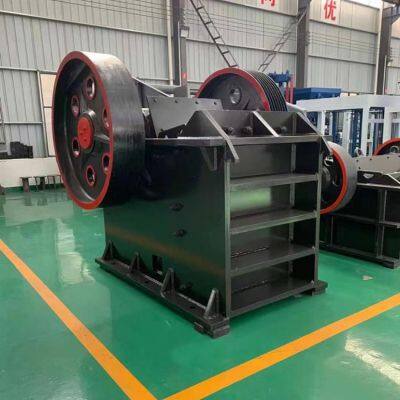

Easy Adjustment Mechanism Jaw Crusher
- Qingdao
- T/T L/C PayPal Other
- 15 days
You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | PE-600*900 | Type | Jaw Crusher | |
| Certification | ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 years | Weight | 17000kg | |
| Dimension(L*W*H) | 2190*2206*2300mm | Application | It is suitable for hard and medium hard materials crushing process, normally as coarse and medium crushing equipment. | |
| Condition | New | Power(W) | 55kw | |
| Motor Type | AC Motor | Capacity(t/h) | 50-180t/h |
Product Description
Easy Adjustment Mechanism Jaw Crusher
Easy Adjustment Mechanism Jaw Crusher Introduction:
It's mainly used at the primary stage of material reduction in several applications, including rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, metallurgy, and chemical industries.
Easy Adjustment Mechanism Jaw Crusher are designed modular to save time and installation costs. They can be installed within a few days, minimizing on-site engineering and fabrication. We have small, medium and large pe jaw crusher for sale, used for primary secondary fine crushing, meeting different needs. The Hot sale jaw crusher models are Jaw Crusher 250*400, Jaw Crusher 400*600, Jaw Crusher 600*900, etc.
Mobile jaw crushes, or mobile jaw crushing plants as they are also called, are conventionally utilized as primary crushers in aggregates quarries, recycling applications and on construction sites, but also in mining operations. Mobile jaw crushers can be moved around at a production site on their own, without supporting equipment – or simply transported between locations.
01/ Installation and debugging service
We have a professional and experienced oversea installation team.
02/Training service
We do not only install and debug machine for our clients, but also train the worker, so they can operate the machineindependently.
03/Other more service
Clients have any needs or problems; our engineer can take plane and get the worksite to provide service in 48 hours.
Easy Adjustment Mechanism Jaw Crusher Technical Parameter:
| Model | Inlet Size(mm) | Max.Feed Size(mm) | Discharge Mouth Controllable Range(mm) | Capacity(t/h) | Eccentric Shaft Speed(r/min) | Motor(kw) | Weight(t) | Overall Size(mm) |
| PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
| PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
| PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
| PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
| PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
| PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
| PE-600*750 | 600*750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070*2000*1920 |
| PE-600*900 | 600*900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190*2206*2300 |
| PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660*2430*2800 |
| PE-800*1060 | 800*1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
| PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
| PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*2876*3330 |
| PE-1200*1500 | 1200*1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200*3300*3500 |
| PE-1500*1800 | 1500*1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160*3660*4248 |
| PE-1600*2100 | 1600*2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210*4013*4716 |
| PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
| PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
| PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
| PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1660*1500 |
| PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |
