Portable Adjustable Aerial Platform for All Work Needs

Portable Adjustable Aerial Platform for All Work Needs photo-1
Portable Adjustable Aerial Platform for All Work Needs photo-2
Portable Adjustable Aerial Platform for All Work Needs photo-3
Portable Adjustable Aerial Platform for All Work Needs photo-4
Portable Adjustable Aerial Platform for All Work Needs photo-5
US$ 7000 - 8500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Baoda
Place of Origin:
China
Model Number:
CPT220
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
3 days
Brand Name Baoda
Place of Origin China
Model Number CPT220
After-sales Service Provided No overseas service provided

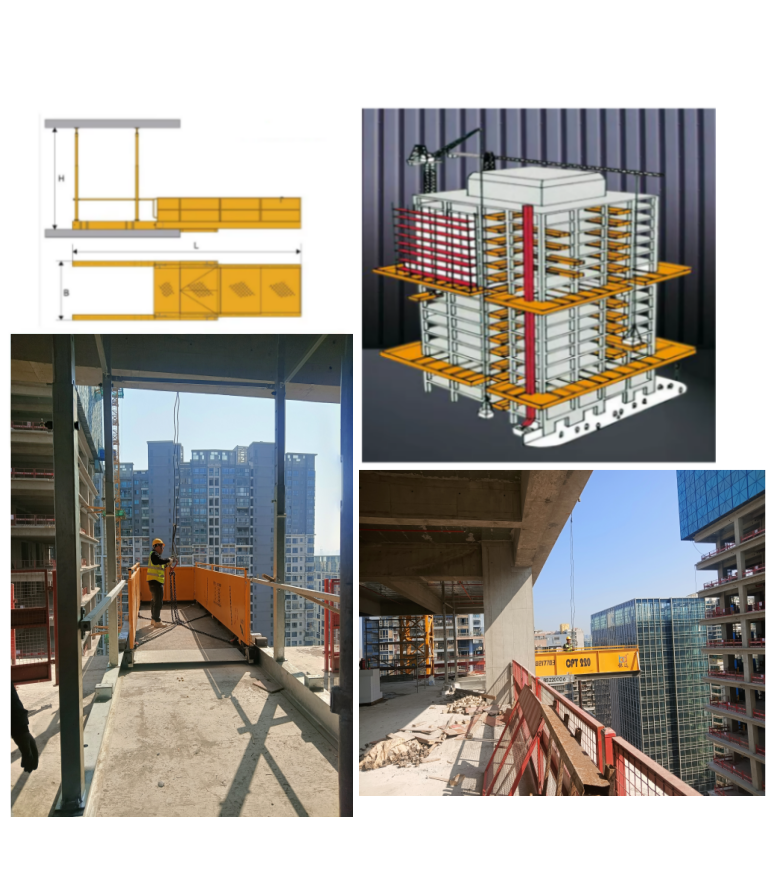

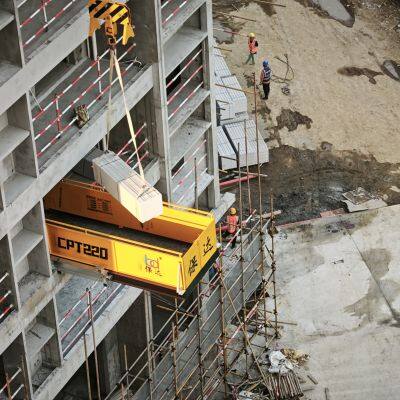

BAODA  Crane Loading and Unloading Platform Features:

1. No pre-buried, easy to install;
2. 2.2-3.6m unltra wide custom;
3. Manual / electric expansion for option;
4. Simple oblique hanging patented product;
5. Double installation, Much safer and more reliable;
6. Disassemble structure and reuse it;
7. National 24-hour on-site service!

Other attributes

Material
steel
Place of Origin
Guangdong, China
Type
Loading Platform
Warranty
1 Year
Surface Treatment
Painted, hot-dip Galvanized
Voltage
No
Lifting Height
No
safety lock
No
suspension mechanism
No
rated load(kg)
 5ton
Brand Name
BAODA
Model Number
CPT220/CPT260/ CPT320
Max Prop Height
6m
Min Prop Height
2.8m
Extend Length
8.5m
Size of Side Panel
1.2m
Retracted Length
5.5m
Safe Working Load
5ton
Working Type1
Push and Pull Type
Working Type2
Assembled Type
Working Type3
Overhanging Type
Driven Type
Push and Pull

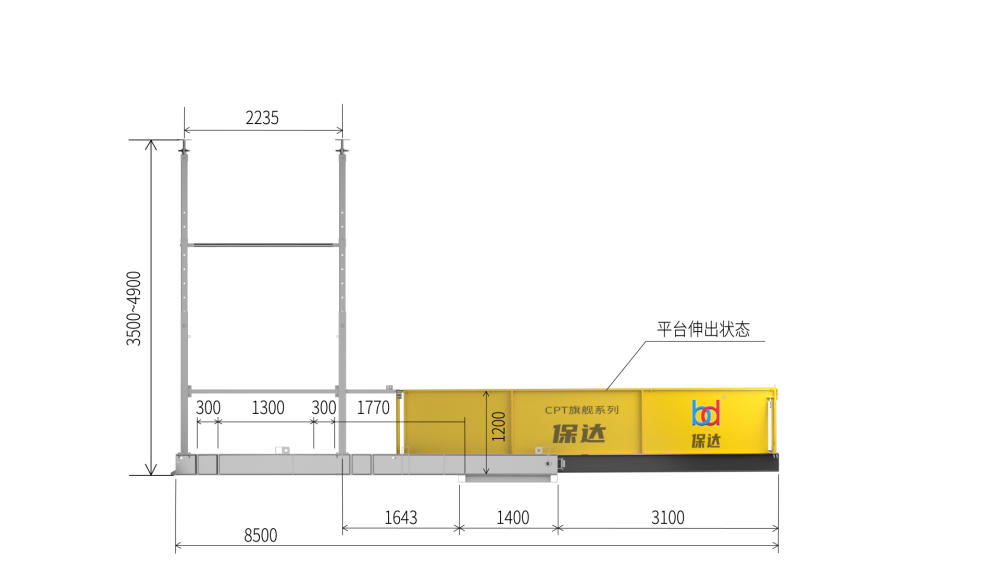

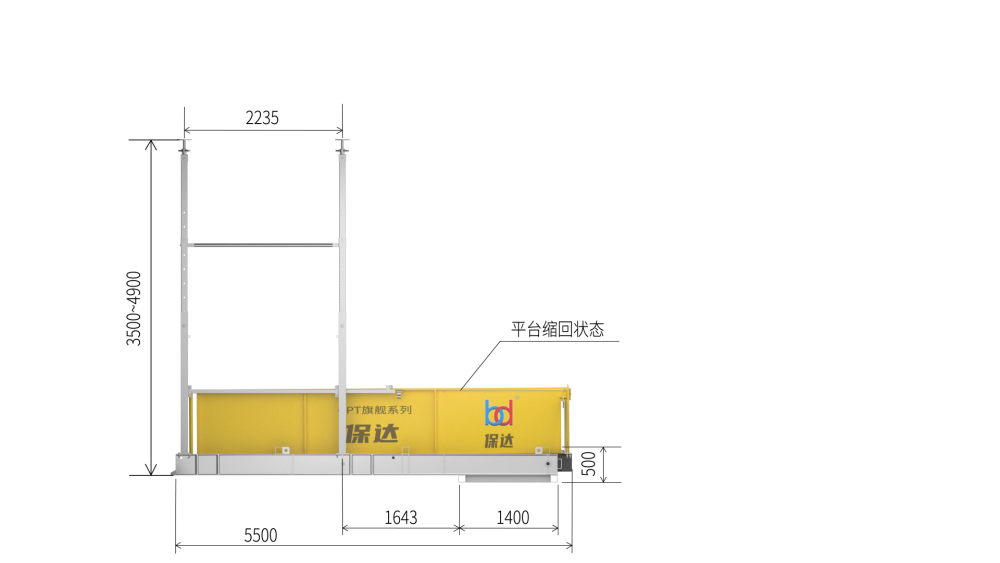

Model
CPT220
CPT260
CPT320
External width/mm
2165
2565
3165
Inner width/mm
1650
2050
2650
Folded height/mm
500
500
500
Height of side panel/mm
1200
1200
1200
p height/mm
2400
2400
2400
p height/mm
6000
6000
6000
Retracted length/mm
5500
5500
5500
Extended length/mm
1200
1200
1200
Overhang Length/mm
8500
8500
8500
Net weight/kg
2500
2600
3000
Rated Load/kg
5000
5000
5000

Product Tags: Loading Platform Deck , Raised Structure Platform , Tower Crane Work Platforms
