ARM Linux SBC BL410 4xCortex-A55 for Smart Grid Power Management

ARMxy BL410 is a Linux industrial computer. The embedded PC is based on the Rockchip RK3568J/RK3568B2 processor, featuring aquad-core ARM Cortex-A55 architecture with clock speed up to 1.8GHz/2.0GHz. The ARM based SBC device is equipped with 8/16/32GB eMMC storage and various combinations of 1/2/4GB LPDDR4X RAM. Additionally, it includes a built-in 1TOPS computing power Neural Processing Unit (NPU) for supporting deep learning tasks.

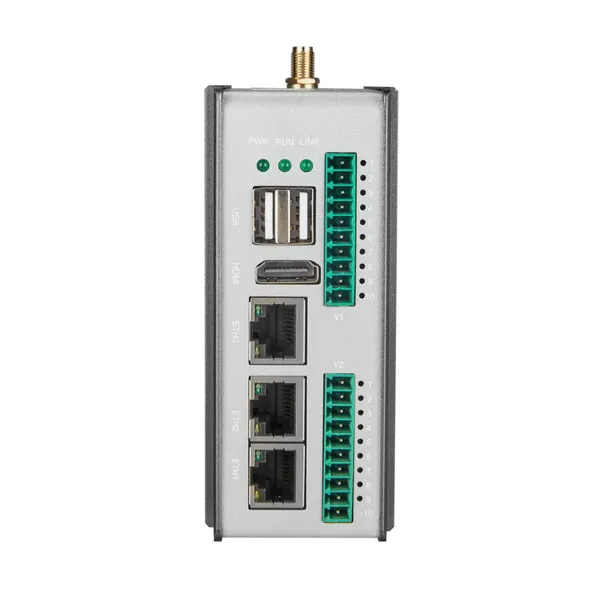

BL410 series Linux industrial computer offers a rich array of interfaces including 1-3 10/100M Ethernet ports, 2 x USB 2.0 ports, 1 x optional HDMI 2.0a port, 1 x optional X series I/O board, 2 x optional Y series IO boards. These interfaces support various functions such as communication, PWM output, pulse counting, and data acquisition and control. The BL410 also supports hardware decoding of 1080P@60fps videos.
Additionally, Embedded PC features a built-in Mini PCIe interface to support communication modules such as Bluetooth, WiFi, and 4G modules.
BL410 Linux industrial computer support Linux-4.19.232, Linux-RT-4.19.232 kernels, Ubuntu20.04, Docker containers, Node-RED, and Qt-5.15.2 for graphical interface development tools. In addition, BL410 Embedded PC is compatible with BLIoTLink industrial protocol conversion software for data collection and transformation, and can seamless integration with various mainstream IoT cloud platforms and industrial SCADA software. Users can leverage the BLRAT for remote access and maintenance of the BL410 ARM-based SBC. Additionally, with support for Node-Red, users can rapidly develop IoT applications on the BL410 ARM based SBC.
The BL410 series industrial computer has undergone rigorous electrical performance design and high-low temperature testing to ensure stability and reliability. It is designed for DIN35 rail mounting, making it suitable for various industrial application environments.
This industrial computer is widely used in industrial IoT, photovoltaic power generation and energy storage systems, automation control, and transportation and rail applications.


Product Selection Guide

The ARMxy series industrial computers adopt a flexible design concept, allowing users to customize ROM and RAM combinations by choosing different System-on-Module(SOM) boards as needed. Additionally, various X and Y boards can be selected to achieve diverse IO configurations, catering to the requirements of different application scenarios.
Product naming convention
Host Model Number - SOM Model Number - X Board Model Number - Y1 Board ModelNumber - Y2 Board Model Number
For example BL410-SOM410-X10, means 1 Ethernet port, 8GB eMMC storage, LPDDR4X is 1GByte, and 2 RS485
If you need to add WiFi, then you would append "W" to the host model number. For example: BL410W-SOM410-X10
If you need to add a 4G module, you would append "L" to the host model number. For example: BL410L-SOM410-X10


ARMxy BL410 SOM Model List
