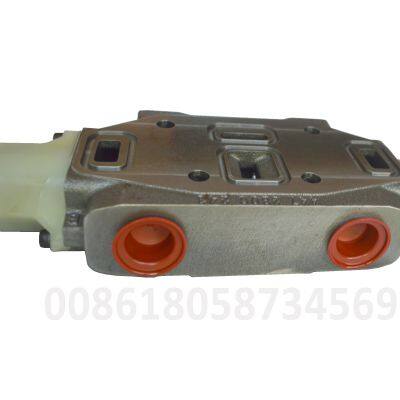

Parker Vg20 Vg35 Work Sections Valve Manual Spring Directional Control Valve photo-1

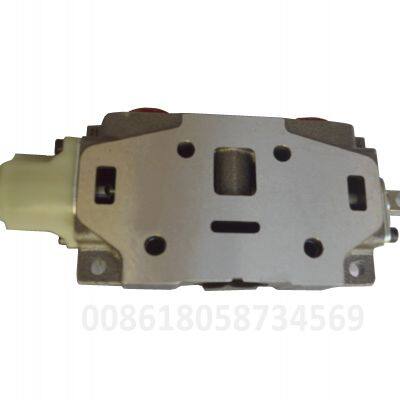

Parker Vg20 Vg35 Work Sections Valve Manual Spring Directional Control Valve photo-2

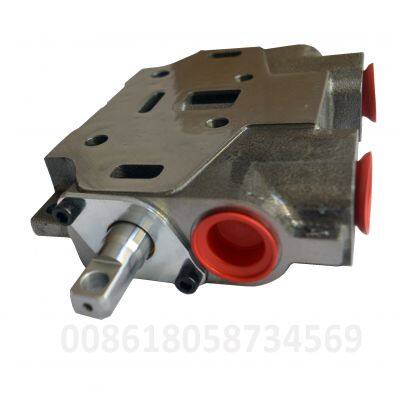

Parker Vg20 Vg35 Work Sections Valve Manual Spring Directional Control Valve photo-3
Parker Vg20 Vg35 Work Sections Valve Manual Spring Directional Control Valve photo-4
Parker Vg20 Vg35 Work Sections Valve Manual Spring Directional Control Valve photo-5
US$ 19 - 39 MOQ: 11 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Type:
Valves
Contact Supplier Request Quote Chat Now
Lu'an Ruito Metal Material Co.,Itd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Type Valves

VA20 and VG20 work section valve: VG20 series is a type of multi-way directional control valve, commonly used in hydraulic systems for controlling the flow of fluids. These valves are designed for flexibility and high performance in various industrial applications.

Product Parameters

Technical data:  Replaces Parker/Commercial VG20;      Circuit: Parallel/Open Center;
Capacity: 25gpm nominal                                  Max Operate Pressure: 3500psi SAE ports only
Max Tank Pressure: 150psi                                 Filtration: 25 micron        Spool Force: 50lbs
maximum Temperature: -20° to 200° F           Seal Type: Buna-N
Relief Valve: Differential type                             Material:  high strength iron alloy

No. Model Oil port size function gear description
1 VG20-DA3 2-3/4"-14NPT double-acting Manual spring reset
2 VG20-DA7 2-1 1/16"-12UNF double-acting Manual spring reset  port SAE12
3 VG20-DB3 2-3/4"-14NPT double-acting  three gear Manual reset
4 VG20-DB7 2-1 1/16"-12UNF double-acting  three gear Manual reset  port SAE12
5 VG20-SA3 3/4"-14NPT single-acting Manual spring reset one port
6 VG20-SA7 1 1/18"-12UNF single-acting Manual spring reset one port SAE12
7 VG20-MA3 2-3/4"-14NPT double-acting Manual spring reset No one-way valve
8 VG20-MA7 2-1 1/16"-12UNF double-acting Manual spring reset No one-way valve port SAE12
9 VG20-MB3 2-3/4"-14NPT double-acting three gear Manual reset No one-way valve
10 VG20-MB7 2-1 1/16"-12UNF double-acting  three gear Manual reset No one-way valve port SAE12
11 VG20-DV3 2-3/4"-14NPT double-acting pneumatic spring reset
12 VG20-DV7 2-1 1/16"-12UNF double-acting pneumatic spring reset  port SAE12
13 VG20-MV3 2-3/4"-14NPT double-acting pneumatic spring reset   No one-way valve
14 VG20-MV7 2-11/16"-12UNF double-acting pneumatic spring reset  No oneway valve port SAE12
15 VG20-SV7 1 1/16"-12UNF single-acting pneumatic spring reset  one port SAE12
16 VG20-DX3 2-3/4"-14NPT double-acting hydraulic  spring reset
17 VG20-MX3 2-11/16"-12UNF double-acting hydraulic  spring reset port SAE12
18 VG20-DX3 2-3/4"-14NPT double-acting hydraulic  spring reset No one-way valve
19 VG20-MX7 2-11/16"-12UNF double-acting hydraulic  spring reset  No one-way valve port SAE12

Spring Return
Low Boy Double-Acting Cylinder Spool  Low Boy Single-Acting Cylinder Spool
High Boy Double-Acting Cylinder Spool  High Boy Single-Acting Cylinder Spool
Parker valve part number:
PN:347-9172-003   Model:DVA20-DA7     PN:347-9172-006   Model:DVA20-MA7
PN:347-9171-003   Model:DVA20-SA7     PN:347-9172-009   Model:DVA20-HA755
PN:347-9172-012   Model:DVA20-LA755   PN:347-9171-006   Model:DVA20-JA705
PN:347-9172-052   Model:DVG20-DA7     PN:347-9172-053   Model:DVG20-MA7
PN:347-9172-056   Model:DVG20-HA755   PN:347-9172-057   Model:DVG20-LA755
PN:347-9171-007   Model:DVG20-JA705
Pneumatic
PN:347-9172-034   Model:DVA20-DV7 Low Boy Double-Acting Cylinder Spool SAE 12
PN:347-9171-018   Model:DVA20-SV7 Low Boy Single-Acting Cylinder Spool SAE 12
