High Quality Super 1800 Molybdenum Disilicide MoSi2 Elements With Customized Size for Dental Sintering Furnace

 What is u shape mosi2 heating element?

The u shape mosi2 heating element looks like the letter “U” in English, it is durable and reliable at high temperatures.

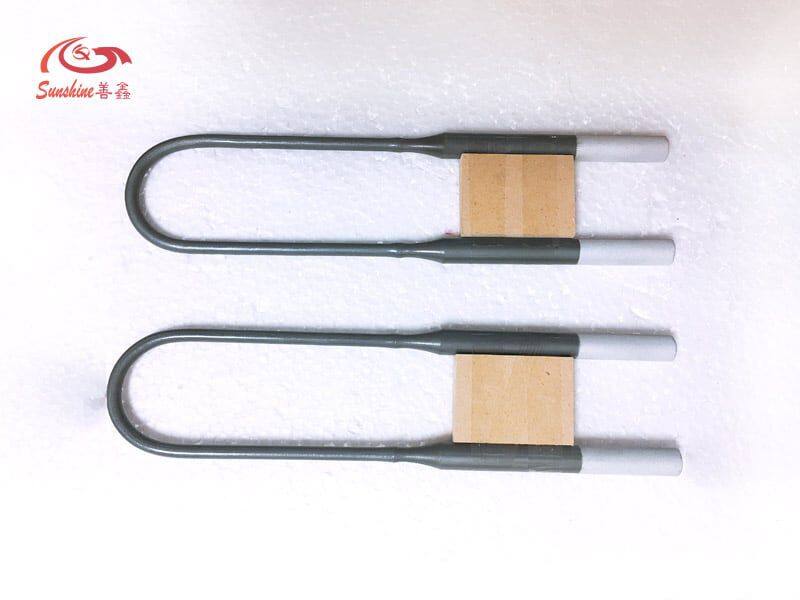

U Shape Mosi2 Heating Element

The U shaped mosi2 heating elements are most frequently used suspended with the bottom of the “U” down. The element consists of two cold ends (Lu) and a U-shaped hot section (Le).

The cold ends are twice the diameter of the hot section and are attached by a weld. The extremities of the cold ends are metallized with aluminum to provide a low-resistance contact surface to which the electrical connections are made with flat braided aluminum straps.

U Shape Mosi2 Heating Element

These mosi2 heating elements are available in two grades: 1700 for element temperatures up to 1700 ℃ and 1800 for element temperatures up to 1850 ℃.

Standard specification

Two-Shank Elements

Manufactured to industry established diameters and resistance values in the following diameters: 3/6, 4/9, 6/12, 9/18 and 12/24.

Mosi2 heating element length:Lu length from 150 to 1000mm, Le length from 150 to 1500mm, customized is available.

Mosi2 heating element operation temperature: From 500C to 1750 ℃. Max temperature can up to 1900 ℃

Mosi2 heating element rod shape: U type; W type; straight type; L type.

Reference data for U shape mosi2 heating element

The installation of U shape mosi2 heating element

Two-shank elements with straight terminals are defined by

• Element grade 1700 Grade, 1800 Grade,1850 Grade, 1900 Grade or Super pure Type

• Heating zone diameter “d”, mm

• Terminal diameter “c”, mm

• Terminal length “Lu”, mm

• Heating zone length “Le”, mm

• Center distance between shanks “a”, mm

U Shape Mosi2 Heating Element And Accessories

Example: 1800 Grade,9/18, Lu = 320 mm

Sizes Available

Le = 510 mm

A=50mm

As shown below：

U Shape Mosi2 Heating Element Drawing

Resistance coefficient of mosi2 heating element

The assembly of U shape mosi2 heating element

Transition section (g) should be inserted inside the furnace, to avoid the case that heat can not emit and resulting in damage of the transition section.

2. When installing, it is necessary to keep certain distance between the U shape mosi2 heating element and furnace bottom (h).

3. Make sure a reasonable distance between the U shape mosi2 heating element and furnace wall.

4. The suggest surface load of 1700 type U shape mosi2 heating element and furnace wall under 1300 C furnace temperature is below 13. 5w/cm3. The suggest surface load of 1800 type U shape mosi2 heating element under 1600℃ furnace temperature is below 11. 5w/cm2. And the suggest surface load of 1850 type products under 1720 C furnace temperature is below 12 w/cm2.
