Galvanized Steel Core Wire for ACSR Conductor

Galvanized Steel Core Wire for ACSR Conductor photo-1
Galvanized Steel Core Wire for ACSR Conductor photo-2

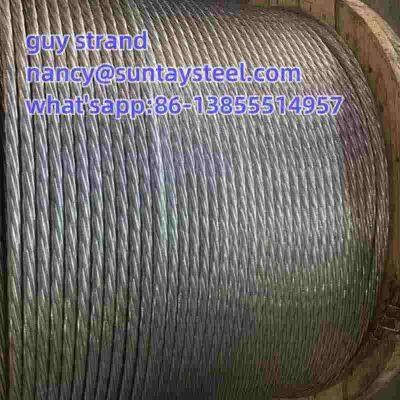

Galvanized Steel Core Wire for ACSR Conductor photo-3

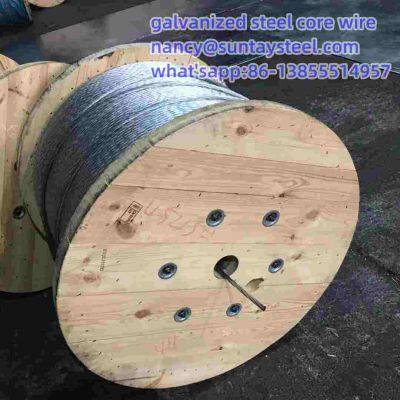

Galvanized Steel Core Wire for ACSR Conductor photo-4

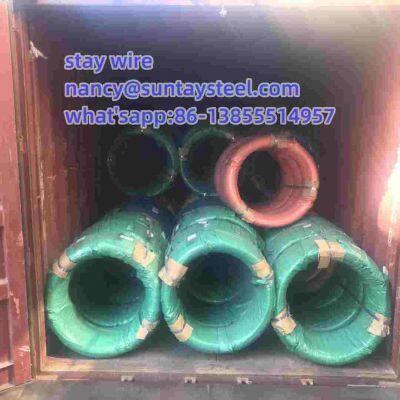

Galvanized Steel Core Wire for ACSR Conductor photo-5
US$ 1 - 1000 MOQ: 5 Tons
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
GS-02
Type:
Galvanized
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Model Number GS-02
Type Galvanized
Application Manufacturing
Standard AISI, ASTM, BS, DIN, GB, JIS
Alloy Or Not Non-alloy
Wire Gauge 0.2-4.8mm
Special Use Cold Heading Steel

Hot - Dipped Galvanized Steel Core Wire For ACSR , Steel Core Wire Rope

ACSR Wire

Application:Standard overhead conductors

Characteristic:High tensile,stict tolerance,bright surface,good corrosion resistance

Specifications

Extral-High-Strength

Diameter

Tensile Strength

Stress at 1% Elongation

Elongation

L=250mm

mm

Mpa

Mpa

%

1.27-2.28

≥1825

≥1550

≥3.0

2.29-3.04

≥1790

≥1515

≥3.0

3.05-3.55

≥1760

≥1480

≥3.5

3.56-4.82

≥1725

≥1450

≥3.0



Ultra-High Strength

Diameter

Tensile Strength

Stress at 1% Elongation

Elongation

L=250mm

mm

Mpa

Mpa

%

1.27-2.28

≥1965

≥1580

≥3.0

2.29-3.04

≥1900

≥1550

≥3.0

3.05-3.55

≥1860

≥1515

≥3.5

3.56-4.82

≥1825

≥1480

≥3.5

Zinc-coating

Diameter

Minimum mass of zinc-coating

mm

g/m2

1.27-1.52

183

1.53-1.90

198

1.91-2.28

214

2.29-2.64

229

2.65-3.04

244

3.05-3.55

259

3.56-4.57

274

4.58-4.82

305

As per GB,EN,IEC,JIS,ASTM Standard, as well as customer’srequest
