Rail Frog Vertical Wear Gauge

Name: Rail Frog Vertical Wear Gauge
Brand: Linkage
Availability: InStock

FOB Price

US$ 750 - 800 / Piece

1 Piece(Min. Order)

Port Shenzhen, Qingdao, Guangzhou
Payment TermsT/T PayPal
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Linkage		Place of Origin	China
Model Number	LJ-ZCM-A

Product Description

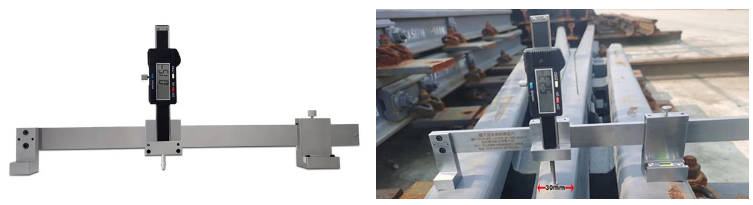

Digital Rail Frog Wear Gauge

Digital Rail Frog Wear Gauge is used to measure vertical wear value of frog point rail and wing rail at any sections.Also could be used for measuring decrease value of point rail relative to wing rail.

Features

Digital type with direct readings: LCD display screen, clear and readable; No calculations required,gives direct reading ; When reading, hold down the HOLD button to fix the measurement value and facilitate reading.
High measuring accuracy : The measurement accuracy is 0.01m
Easy to use, measure the vertical and lateral rail wear at the same time, Position the rail wear gauge on the outer side of the rail . Push the vertical and lateral rail wear gauge so that the measuring probe is in contact with the upper surface and inner side of the rail respectively.Then the vertical and lateral wear of the rail can be read.
Metric /imperial unit
Support customize: We could customize all kinds wear gauge according to different rail profiles and different measure points.
Fast calibrate: One-key zero clearing function, can be quickly calibrated before each use to reach the factory measurement accuracy.
Magnetic fixed part: Strong magnetic fixed part to attach to the rail.
Rail fillet as measuring base to ensure measure data more accuracy
Rail fillet is more clear than rail bottom,no dust. It could ensure the measure result reliability.
Portable Handle : This product is designed with a handle that is easy to hold, which greatly improves the portability of the product. It can avoid touching the ruler body directly, cause the ruler body to be stained and corroded, improve the product service life.

Specification

Model	LJ-ZCM-A
Type	Digital Rail Frog Wear Gauge
Material	Stainless Steel
Dimensions (L x W x H) (mm)	38016625mm
Measure range	0~40mm
Score value	0.01mm
Indication error	≤ ± 0. 15mm
Working tempareture	-10℃~+40℃
Main ruler measure range	0~380mm

Details Images

Package & Delivery

Aluminum box + pe bag+pe foam+paper carton, 1 units/carton , carton size:30*38*13mm  G.W: 4.5KG
