Product Features:
Flexible Power Supply: Standard power supply of AC380V, customizable to AC220V, adaptable to different power environments.
Intelligent Control: Equipped with 4 gear positions + stepless speed adjustment, supports control panel and remote control operation, with multi-unit linkage for improved work efficiency.
Efficient Power: Power of 1500W, stable operation with strong pulling force and high speed, suitable for various working conditions.
Precise Speed Control: Conveying speed of 4-22m/min, optimal working speed of 10-16m/min (2nd and 3rd gears), meeting different job requirements.
Strong Pulling Force: Maximum pulling force of 3800N, suitable for cable laying with diameters of 1-10cm.
Compact and Lightweight: Dimensions of 74x46.5x55.5cm, weight of only 86kg, easy to transport and operate.
Durable Design: External antenna and panel protective cover design, protecting core components and extending service life.
Linkage Function: Equipped with a linkage module, supports multi-unit teaming for large-scale operations.
Multi-functional Operation: Four gear positions + stepless speed adjustment, wide speed range, suitable for various scenarios.
Application Scenarios:
Suitable for cable laying in industries such as power, telecommunications, and construction.
Ideal for working conditions with limited space or frequent movement requirements.
Multi-unit linkage function is perfect for large-scale cable laying projects, improving overall work efficiency.

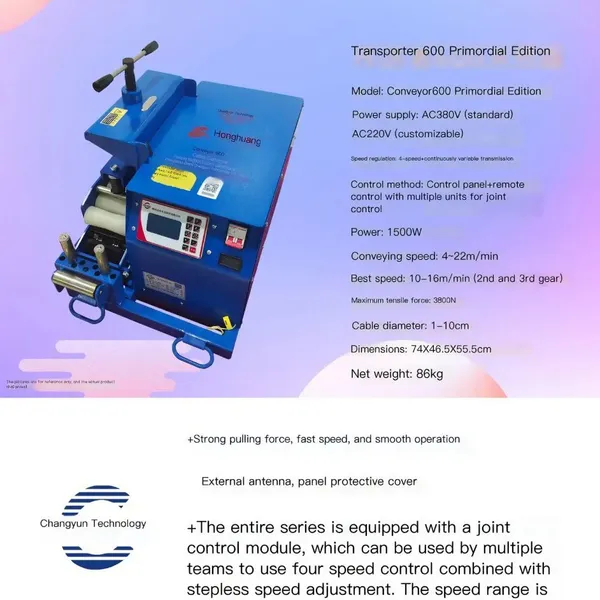

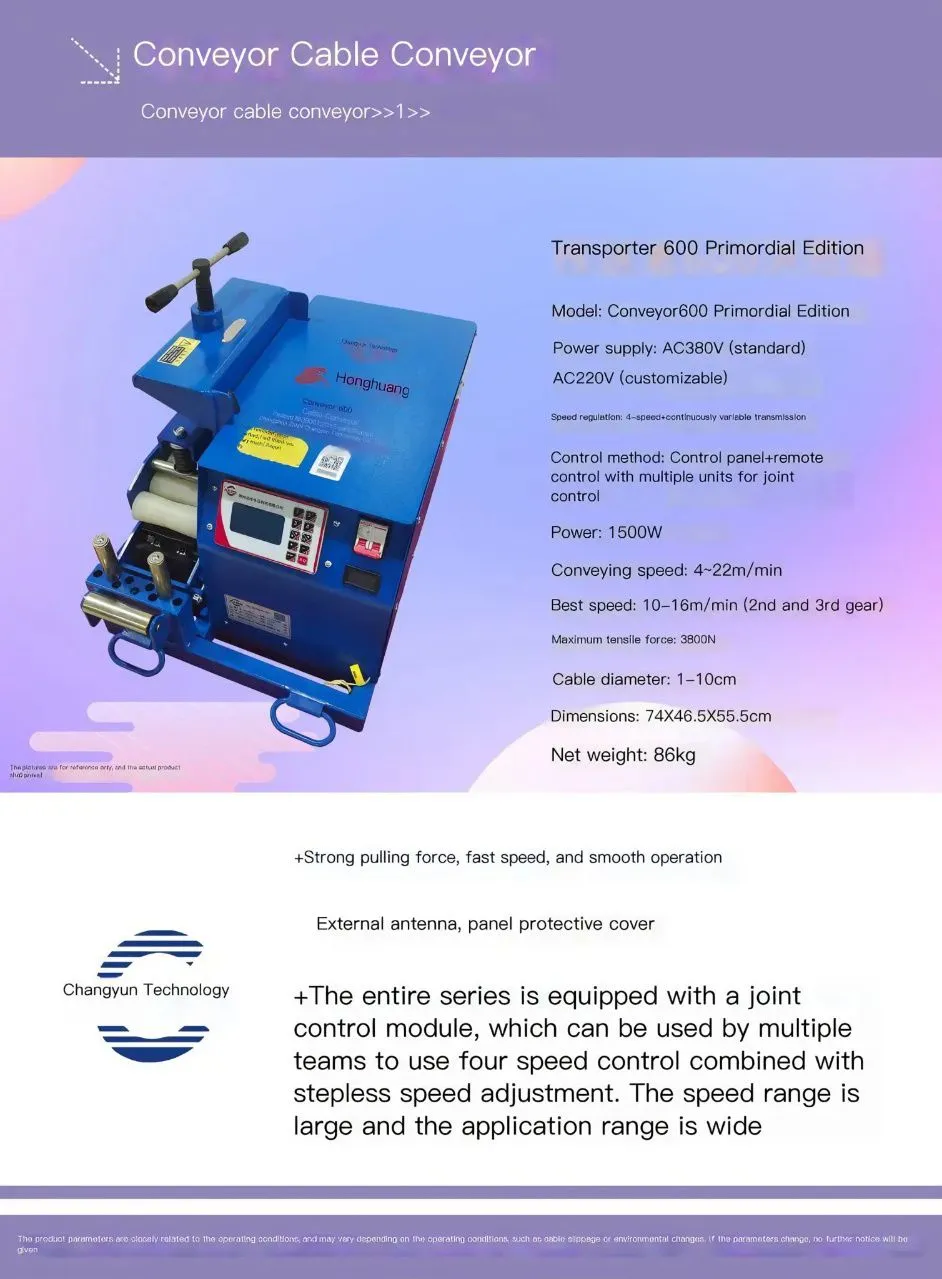

Technical Parameters:
Power Supply: AC380V (standard), AC220V (customizable)
Power: 1500W
Conveying Speed: 4-22m/min
Optimal Speed: 10-16m/min (2nd and 3rd gears)
Maximum Pulling Force: 3800N
Cable Diameter: 1-10cm
Dimensions: 74x46.5x55.5cm
Weight: 86kg
Product Advantages:
Strong pulling force, high speed, and stable operation, adaptable to various working conditions.
External antenna and panel protective cover design, protecting core components and extending service life.
Equipped with a linkage module, supports multi-unit teaming for large-scale operations.
Four gear positions + stepless speed adjustment, wide speed range, suitable for various scenarios.
Compact and lightweight, easy to transport and operate.
