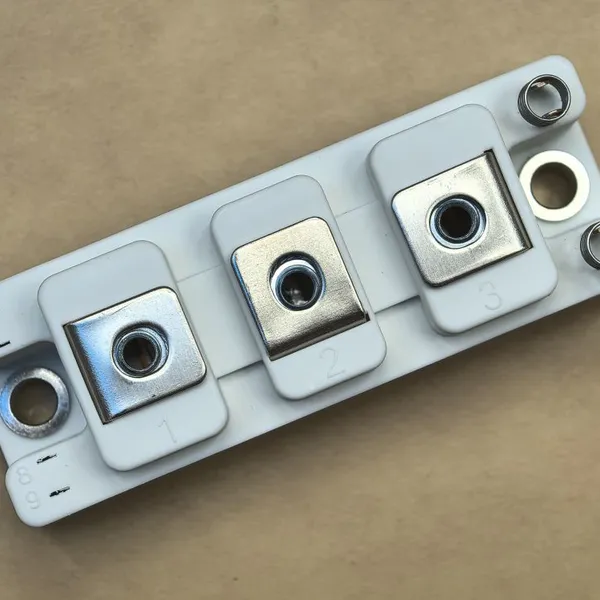

Copper Plate IGBT Module Heat Dissipation Durability In Industrial Standard Package
Negotiable
MOQ: 4 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Krunter
Place of Origin:
China
Model Number:
KUG75H12W4L1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SIC Module KHS03RS12B7P1NegotiableMOQ: 4 Units -
Low VCE Sat and Short Circuit Current IGBT Module for and Low Switching LossesNegotiableMOQ: 4 Units
-
ABB 3BHL000986P0006 IGBT ModuleNegotiableMOQ: 1 Unit
-
In Stock Brand New E2 IGBT Modules DP25D1200TNegotiableMOQ: 1
-
5SHX0660F0002 Thyristor IGBT Module 5SHY35L4520 5SXE10-0181 AC10272001R0101US$ 5680.00MOQ: 1 Pallet
Brand Name
Krunter
Place of Origin
China
Model Number
KUG75H12W4L1
Type
Voltage Regulator
Low VCE(sat)
10μs Short Circuit current
Low switching losses
Positive VCE(sat) temperature coefficient
Free wheeling diodes with very low forward voltage drop and soft recovery

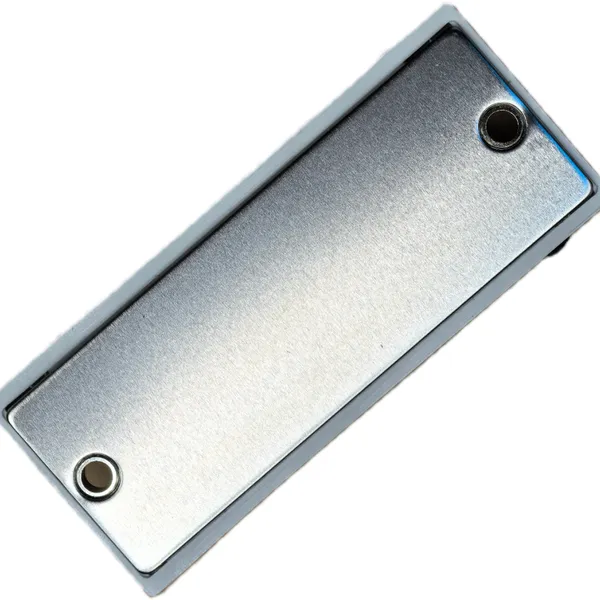

Industrial standard package with copper base plate
Specification Parameters
| TYPE | VCES | VGES | IC | VCE(SAT) | (EON+EOFF) | TJ | Ptot | Circuit | Package | Technology |
| Volts | Volts | Amps | Volts | mJ | Watts | |||||
| KUG40H12S4L | 1200V | ± 20 | 40A | 2.80V | 7.2mJ | 150℃ | 250W | 2 Pack | 34mm | NPT |
| KUG50H12S4L | 1200V | ± 20 | 50A | 2.80V | 7.2mJ | 150℃ | 285W | 2 Pack | ||
| KUG75H12S4L | 1200V | ± 20 | 75A | 2.80V | 10.6mJ | 150℃ | 395W | 2 Pack | ||
| KUG100H12S4L | 1200V | ± 20 | 100A | 3.10V | 13.4mJ | 150℃ | 555W | 2 Pack | ||
| KUG150H12S4L | 1200V | ± 20 | 150A | 2.80V | 17.0mJ | 150℃ | 790W | 2 Pack | ||
| KUG40H12E4L | 1200V | ± 20 | 40A | 2.10V | 8.8mJ | 175℃ | 250W | 2 Pack | Trench FS | |
| KUG50H12E4L | 1200V | ± 30 | 50A | 1.65V | 10.1mJ | 175℃ | 285W | 2 Pack | ||
| KUG75H12E4L | 1200V | ± 30 | 75A | 1.65V | 18.0mJ | 175℃ | 395W | 2 Pack | ||
| KUG100H12E4L | 1200V | ± 30 | 100A | 1.65V | 24.8mJ | 175℃ | 555W | 2 Pack | ||
| KUG40H12W4L | 1200V | ± 20 | 40A | 2.10V | 8.4mJ | 175℃ | 250W | 2 Pack | Trench fast |
|
| KUG50H12W4L | 1200V | ± 20 | 50A | 2.25V | 9.4mJ | 175℃ | 285W | 2 Pack | ||
| KUG75H12W4L | 1200V | ± 20 | 75A | 2.00V | 14.0mJ | 175℃ | 395W | 2 Pack | ||
| KUG100H12W4L | 1200V | ± 20 | 100A | 1.90V | 19.5mJ | 175℃ | 555W | 2 Pack | ||
| KUG150H12W4L | 1200V | ± 20 | 150A | 1.90V | 27.8mJ | 175℃ | 790W | 2 Pack |
