Earthing Cord Reels Static Discharge Reel Static Grounding Reel

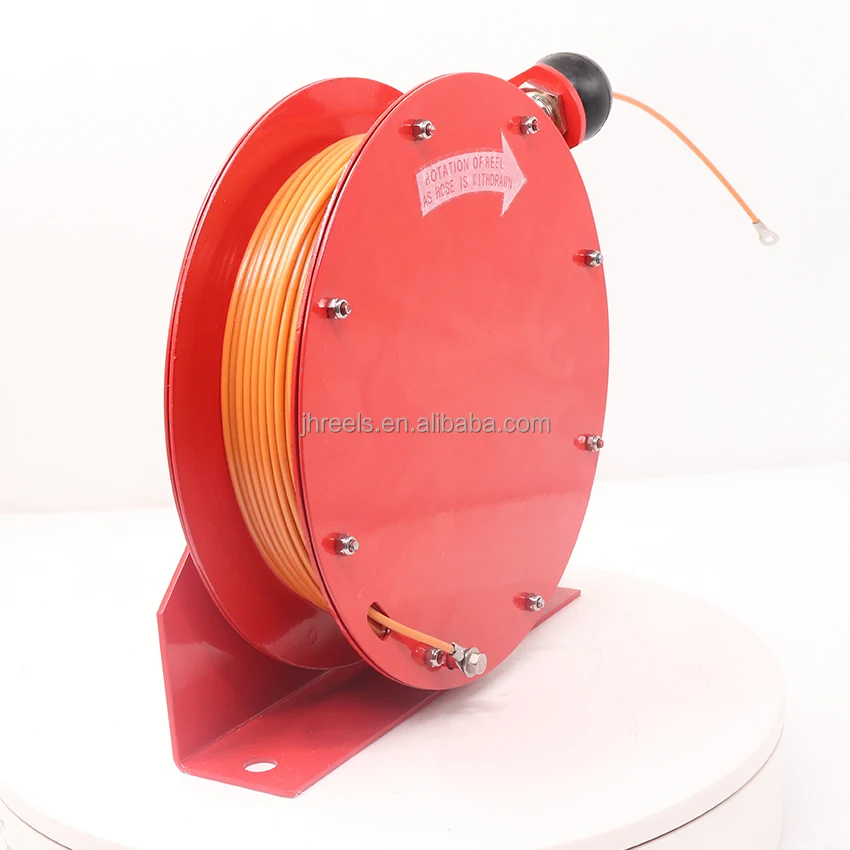

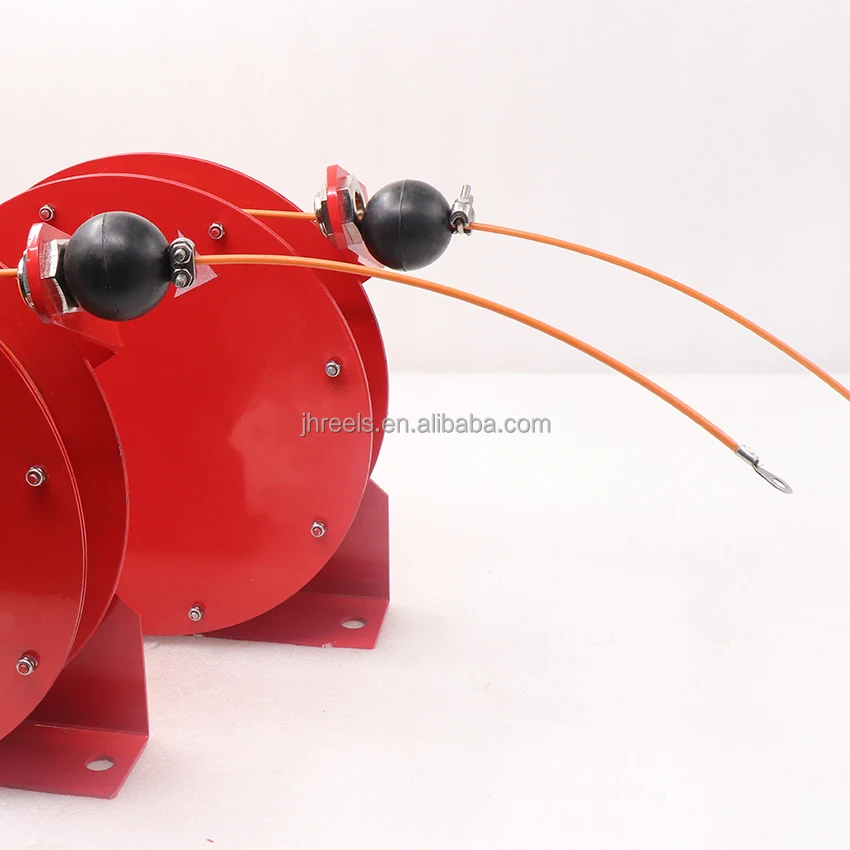

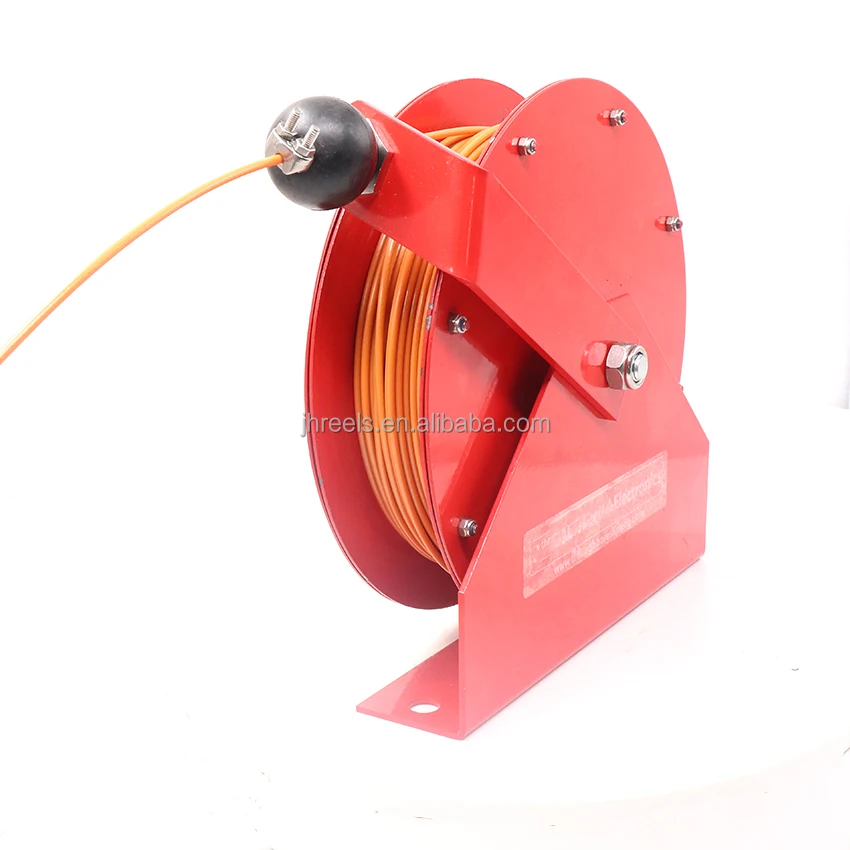

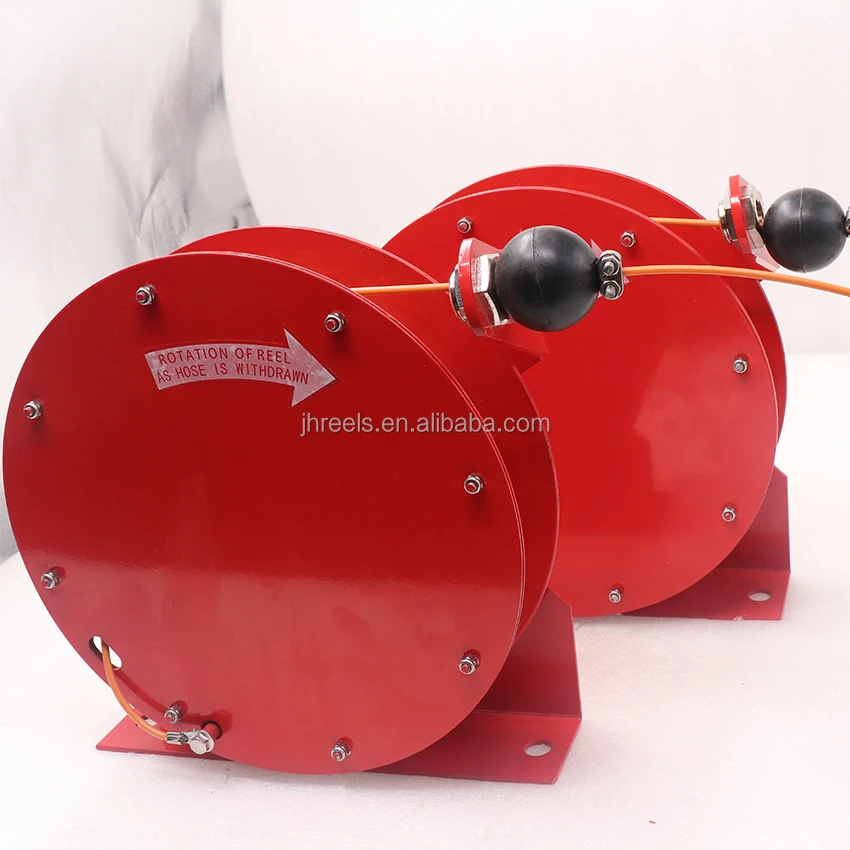

Spring Retractable Grounding Reels



JH's static discharge reels are used to ground equipment operating in hazardous atmospheres. When properly clamped to the ground, the static discharge reel dissipates static electrical buildup, reducing the chances of sparking and the potential for explosion. *Nylon covered cable (1/8" O.D.).

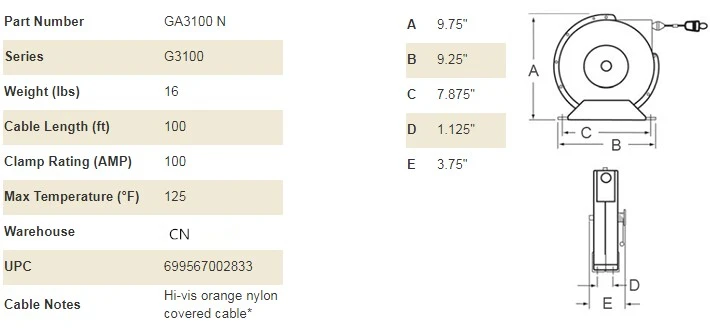

Reel Specifications and Dimensions

100ft spring retractable grounding static cable reel for truck fuel

We powder coat parts individually before installation for superior coverage and better protection against corrosion.	You won't have to worry about your spring losing its strength or breaking from normal usage.

Benefits

***Strength - Made from industrial grade carbon steel.

***Compact design - Reels require little mounting space for applications where space is a critical requirement

***Corrosion resistance - Steel components are powder coated for superior corrosion resistance. Steel cable available with nylon coating for longer service life.

***Versatility - Guide arm adjusts to one of several payout positions requiring only standard tools.

50ft/100ft. Static Discharge Reel Grounding Reels Spring Retractable Nylon Coated Earthing Cord Reels

Installation

CAUTION

Be sure reel base is securely grounded to mounting surface. Check for continuity following installation. On painted surfaces, remove paint at bolt location, use external tooth lockwashers or run ground wire from reel base to grounded object. Failure to ground will prevent reel from performing its intended function and could result in personal injury.

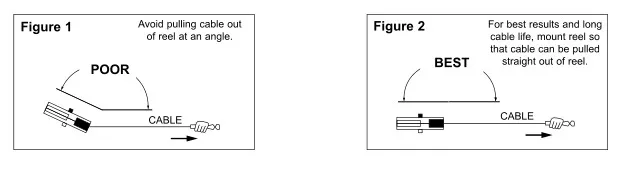

Mount reel to grounded, metal surface using four holes in mounting base. To minimize wear on cable and cable guide, reel should be
mounted in direct line with work so that cable is pulled out as straight as possible during use. See figures 1 & 2.
