Batch/continuous Waste Rubber Tire/car Tyres to Fuel Oil Pyrolysis Plant

Name: Batch/continuous Waste Rubber Tire/car Tyres to Fuel Oil Pyrolysis Plant
Brand: DOING
Availability: InStock

FOB Price

US$ 30000 - 500000 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T L/C PayPal Other
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	DOING	Place of Origin	China
Model Number	DY-1/6/10/12/15/20/50	Grade	Other
Type	Heavy Crude Oil	Application	Oil Product
Chemical Composition	DY-1/6/10/12

Product Description

Fully-continuous plant workflow

Product Paramenters

Scheme 1: Free installation small scale  pyrolysis plant unit

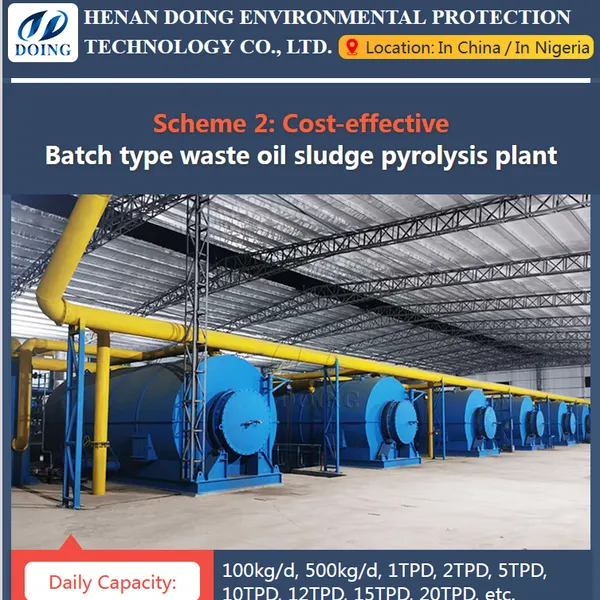

Scheme 2: Favorable Cost batch type pyrolysis plant

Items	Batch Pyrolysis Plant
Equipment type	DY-1-6	DY-1-10	DY-1-12
Raw material	Waste plastics, tyres	Waste plastics, tyres	Waste plastics, tyres
Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
24-hour Capacity	6 ton	10 ton	12 ton
Oil yield	2.7-3.3ton	4.5 -5.5ton	4.8 -6.6ton
Operating pressure	Normal	Normal	Normal
Material of pyrolysis Reactor	Q245R	Q245R	Q245R
Thickness of pyrolysis Reactor	16mm	16mm	16mm
Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
Total power	15KW	15KW	15KW
Mode of cooling	Water cooling	Water cooling	Water cooling
Cooling area of condenser	100sqm	100sqm	100sqm
Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
Noise dB(A)	≤85	≤85	≤85
Size of Reactor(D×L)	2200×6000	2600×6600	2800×6600
Working form	Intermittent operation	Intermittent operation	Intermittent operation
Delivery time	20days	20days	20days
Weight	27T	32T	35T

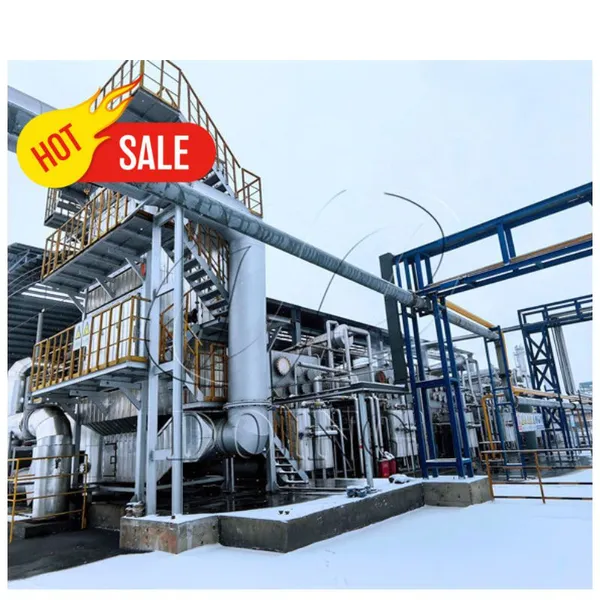

Scheme 3: New design continuous type pyrolysis plant

Item	Continuous Pyrolysis Plant
Model	DY-C-30	DY-C-50	DY-C-100
Cpacity	30T/D	50T/D	100T/D
Power	65Kw	80Kw	120Kw
Working type	Continuous
Reactor deisgn	Mutiple reactors (The quantity and size depends on the raw material condition)
Rotating	Internal rotating
Cooling system	Recycled waster cooling
Reactor material	Q245R/Q345R boiler plate
Heating method	Indireact hot air heating
Heating fuel	Fuel oil/gas
Feedstock	Waste tire/plastic/rubber
Output	Fuel oil, carbon black

Waste Tire Pyrolysis Plant Profit Analysis

Note: The data is based on the Internet&Feedback of our customers. You can contact us to make the detailed latest analysis and customize waste tire pyrolysis plant.

Project Case

Customer Feedback

Our services

Company Profile

DOING HOLDINGS CO., Ltd

Henan Doing Environmental Protection Technology Co., Ltd, the subsidiary company of Doing Holdings Co., LTD, is a comprehensive environmental equipment manufacturer integrating technological design, research and development, machine production, sales and after-sales service in one.
Our main business: solid waste and hazardous waste treatment equipment, waste tire/plastic/rubber/oil sludge/ aluminum plastic pyrolysis plant, pyrolysis oil /used oil to diesel distillation plant, and related environmental protection devices. Now, our products sells well in 90+ countries and regions around the world.

FAQ

Q: How much a waste pyrolysis plant?
A: Different capacity of tyre pyrolysis plants have different cost. And also different desgins of tyre pyrolysis plants have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.

Q: How can I sell the tyre pyrolysis oil and plastic oil?
A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.

Q: How many countries your machine have been exported and installed?
A: Our machinery have been sold to more than 100 countries and regions around the world, winning great praise and trust of our customers all over the world! For example, Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.

Q: Can we visit your factory of pyrolysis plant ? And where is your factory?
A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!
