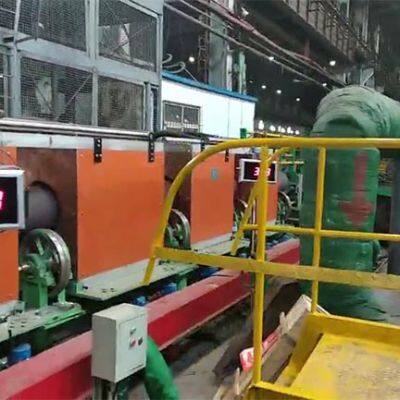

Steel Pipe Induction Hardening Machine

Main technical parameters of steel pipe heating equipment

·Applicable workpieces: medium frequency induction heating for metal exhibition pipes such as steel pipes, stainless steel pipes, thick walled steel pipes, and square pipes.

Power supply system: Dual rectifier 12 pulse or 24 pulse 1000-10000KW/200-2500HZ, single power supply can be used independently or multiple power supplies can be used in parallel.

·Feeding system: Each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.

·Guidance system: using 304 non-magnetic stainless steel guide wheels, high-precision digital encoder automatically locates different workpiece heights.

Temperature closed-loop system: Yuanzhe's unique feedforward+feedback joint control method automatically matches the power supply range based on the inlet temperature and position, and further corrects the power value based on the outlet temperature feedback system.

Formula management function: A powerful formula management system that automatically calls relevant parameters after inputting the steel grade, outer diameter, and wall thickness parameters to be produced, eliminating the need to manually record, view, and input the required parameter values for various workpieces.

Advantages and characteristics of steel pipe heating equipment:

Strong linearity, good working environment, and easy implementation of mechanized and automated production lines

·Fast heating speed, minimal oxidation and decarburization, high efficiency, and good process repeatability:

Compliant with environmental requirements, with minimal pollution and reduced labor intensity for workers, it can replace some old resistance furnaces and coal heating· Uniform heating, high temperature control accuracy, ensuring small temperature difference between the heating core and the surface;

The induction coil can be freely disassembled and replaced conveniently. Faster heating speed greatly reduces workpiece oxidation deformation:

·Equipped with constant power and constant current control functions, it efficiently and quickly heats up metal workpieces to optimize the heating process.

Overseas manager: Tom Wang

Email:tom@foreverfurnace.com

Phone: 0086-13303078975(whatsapp, wechat,line)

Specialist of  induction heat treatment furnace in China; Glad to be your business partner in induction heating field.
