Automatic Chilli Powder Grinding Machine Vegetable Powder Pulverizer Turmeric Powder Mill Grinder Powder Making Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ANJIN
Place of Origin:
China
Model Number:
AJ-PG20C
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Automatic Sugar Powder Grinding Machine Vegetable Powder Pulverizer Turmeric Powder Mill Grinder Powder Making MachineNegotiableMOQ: 1 Set -
Fully Automatic Garlic Crushing Machine Fruit and Vegetable CrusherNegotiableMOQ: 1 Set
-
Automatic Fresh Sweet Corn Threshing Machine Corn Kernel Separating MachineNegotiableMOQ: 1 Set
-
Automatic Fresh Corn Processing Line Sweet Corn Kernel Seperating Threshing MachineNegotiableMOQ: 1 Set
-
Commercial Vegetable Cutting Machine, French Fries Cutter for Kitchen AJ-VS65NegotiableMOQ: 1 Set
Brand Name
ANJIN
Place of Origin
China
Model Number
AJ-PG20C
Type
Other, Chilli Powder Grinding Machine
After-sales Service Provided
Engineers available to service machinery overseas
Automatic Chilli Powder Grinding Machine Vegetable Powder Pulverizer Turmeric Powder Mill Grinder Powder Making Machine
Application of powder grinding machine:
Cocoa powder grinding machines have wide applications and are widely used in the pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry, and so on. Using the relative motion between movable and fixed teeth disc, the raw materials can be crushed by undertaking comprehensive actions such as impacted by teeth,friction, impacted between raw materials, and finally, the raw materials are crushed.
The comminuted material can be discharged directly from the grinding chamber, and the particle size is
determined by changing the screen mesh with different mesh numbers. (The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
Features of Powder milling machine:
1. Hopper: The input hopper has a square shape and round shape, and can be customized based on the client’s request.
2. Locking: Effectively locking the cover to prevent powder leaking while the machine grinds the materials inside.

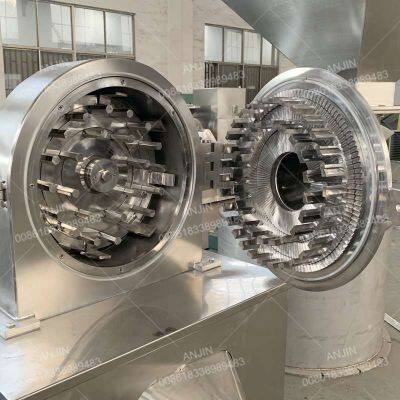

3. Rotary Disk: The relative movement of the rotating toothed disc and the fixed toothed disc, crushing the material.
4 . Final product: The fineness of the product can be changed by replacing different fineness screens.
1. Hopper: The input hopper has a square shape and round shape, and can be customized based on the client’s request.
2. Locking: Effectively locking the cover to prevent powder leaking while the machine grinds the materials inside.
3. Rotary Disk: The relative movement of the rotating toothed disc and the fixed toothed disc, crushing the material.
4 . Final product: The fineness of the product can be changed by replacing different fineness screens.
Parameter Data:
| Model | AJ-PG20C | AJ-PG30C | AJ-PG40C | AJ-PG50C | AJ-PG60C |
| Capacity(kg/h) | 50-100 | 50-200 | 100-400 | 200-500 | 200-800 |
| Crushed powder fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Cutter diameter(mm) | 200 | 300 | 350 | 500 | 550 |
| Host power(kw) | 4 | 5.5 | 11 | 15 | 18.5 |
| Cleaning motor power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 |
| Dimension(mm) | 1000*500*1200 | 1200*700*1650 | 1350*900*1800 | 1400*900*1950 | 1600*1100*2100 |
| Weight(kg) | 220 | 300 | 550 | 670 | 750 |
Notice:
1, The technical parameters are for reference only.
2, The product quotation is for reference only, based on the actual purchased model and configuration.
3, For more information, please call or consult our sales manager.
1, The technical parameters are for reference only.
2, The product quotation is for reference only, based on the actual purchased model and configuration.
3, For more information, please call or consult our sales manager.
