Product Details
| Brand Name | ANJIN | Place of Origin | China | |
| Model Number | AJ-P1 | Type | Other, Cocoa powder grinding machine | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

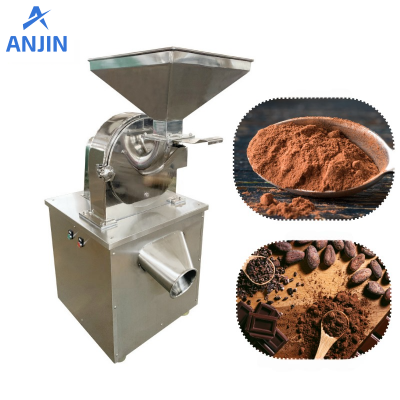

Automatic Cocoa Powder Grinding Machine Cocoa Pulverizer Cocoa Mill Grinder Powder Making Machine
Application of Cocoa powder grinding machine:
Cocoa powder grinding machines have wide applications and are widely used in the pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry, and so on. Using the relative motion between movable and fixed teeth disc, the raw materials can be crushed by undertaking comprehensive actions such as impacted by teeth,f riction, impacted between raw materials, and finally, the raw materials are crushed.
The comminuted material can be discharged directly from the grinding chamber, and the particle size is
determined by changing the screen mesh with different mesh numbers. (The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
Features of Cocoa powder milling machine:
1. Hopper: The input hopper has a square shape and round shape, and can be customized based on the client’s request.
2. Locking: Effectively locking the cover to prevent powder leaking while the machine grinds the materials inside.
3. Rotary Disk: The relative movement of the rotating toothed disc and the fixed toothed disc, crushing the material.
4 . Final product: The fineness of the product can be changed by replacing different fineness screens.
1. Hopper: The input hopper has a square shape and round shape, and can be customized based on the client’s request.
2. Locking: Effectively locking the cover to prevent powder leaking while the machine grinds the materials inside.
3. Rotary Disk: The relative movement of the rotating toothed disc and the fixed toothed disc, crushing the material.
4 . Final product: The fineness of the product can be changed by replacing different fineness screens.
Parameter Data:
| Model | AJ-PG20C | AJ-PG30C | AJ-PG40C | AJ-PG50C | AJ-PG60C |
| Capacity(kg/h) | 50-100 | 50-200 | 100-400 | 200-500 | 200-800 |
| Crushed powder fineness(mesh) | 20-120 | 20-120 | 20-120 | 20-120 | 20-120 |
| Cutter diameter(mm) | 200 | 300 | 350 | 500 | 550 |
| Host power(kw) | 4 | 5.5 | 11 | 15 | 18.5 |
| Cleaning motor power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 |
| Dimension(mm) | 1000*500*1200 | 1200*700*1650 | 1350*900*1800 | 1400*900*1950 | 1600*1100*2100 |
| Weight(kg) | 220 | 300 | 550 | 670 | 750 |
Notice:
1, The technical parameters are for reference only.
2, The product quotation is for reference only, based on the actual purchased model and configuration.
3, For more information, please call or consult our sales manager.
1, The technical parameters are for reference only.
2, The product quotation is for reference only, based on the actual purchased model and configuration.
3, For more information, please call or consult our sales manager.
