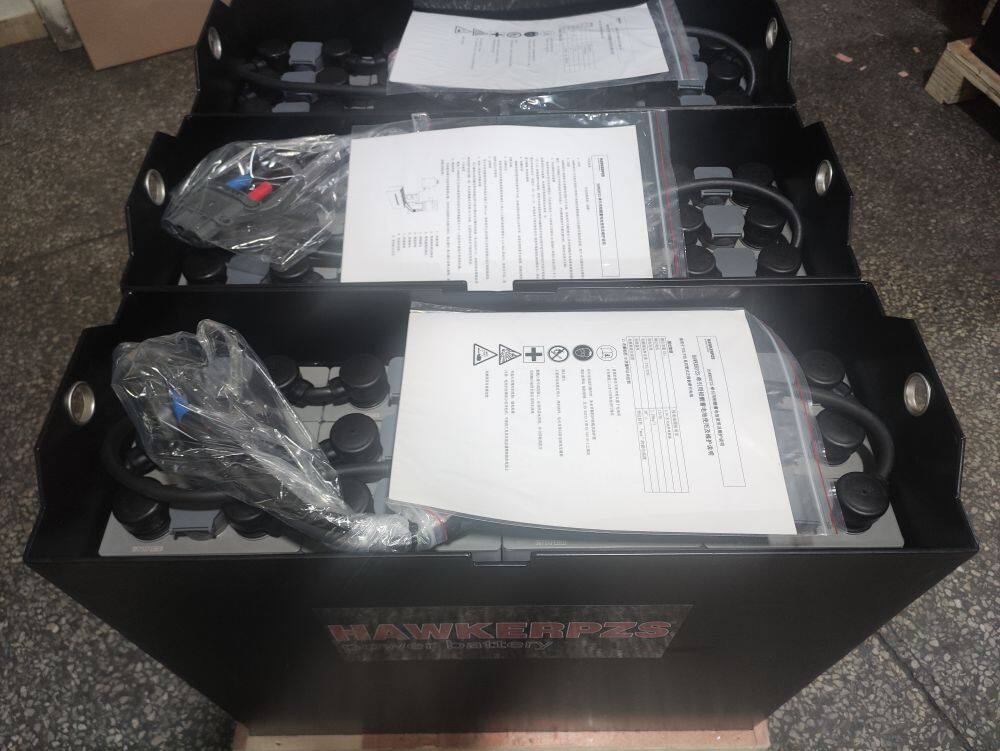

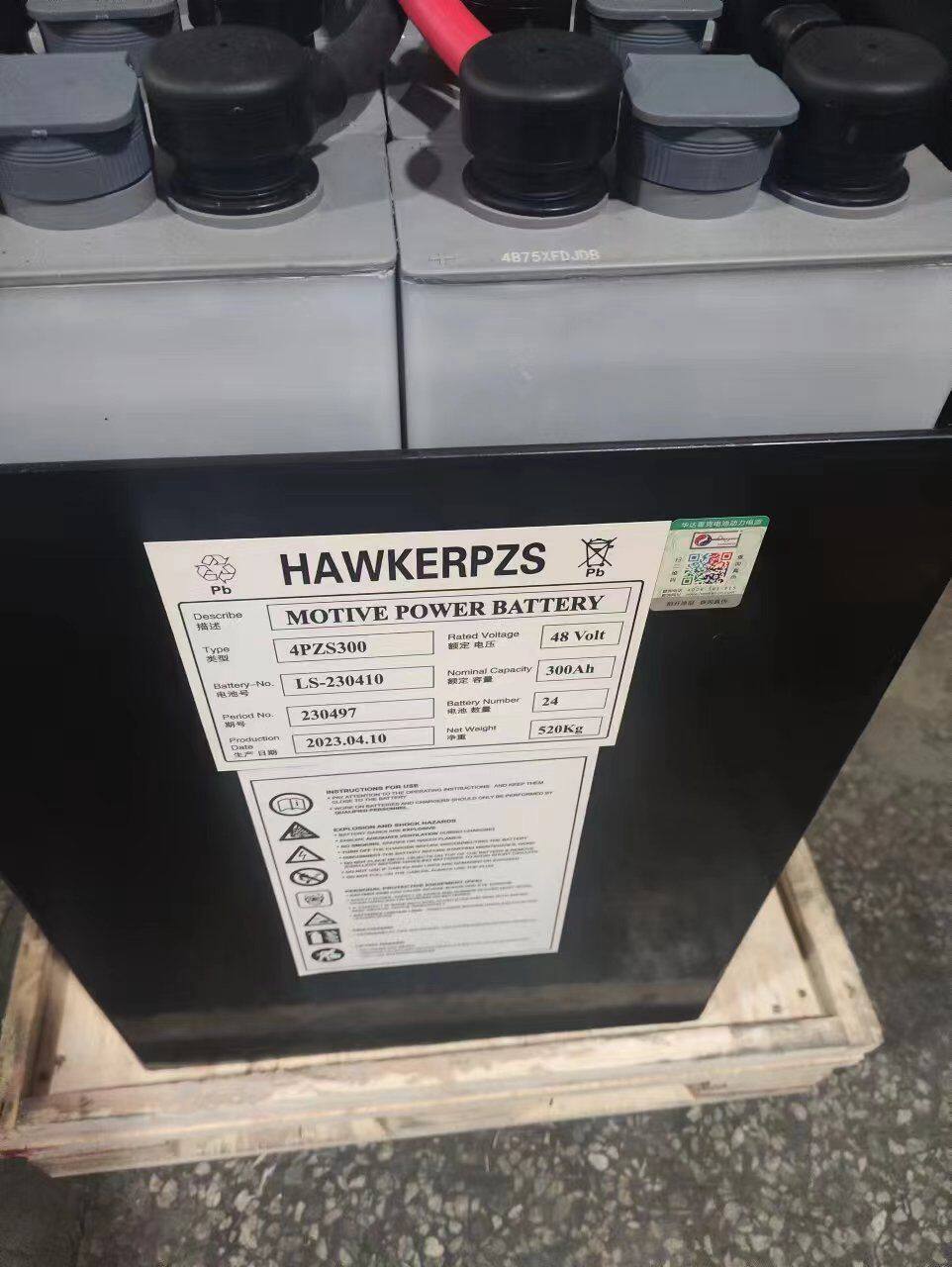

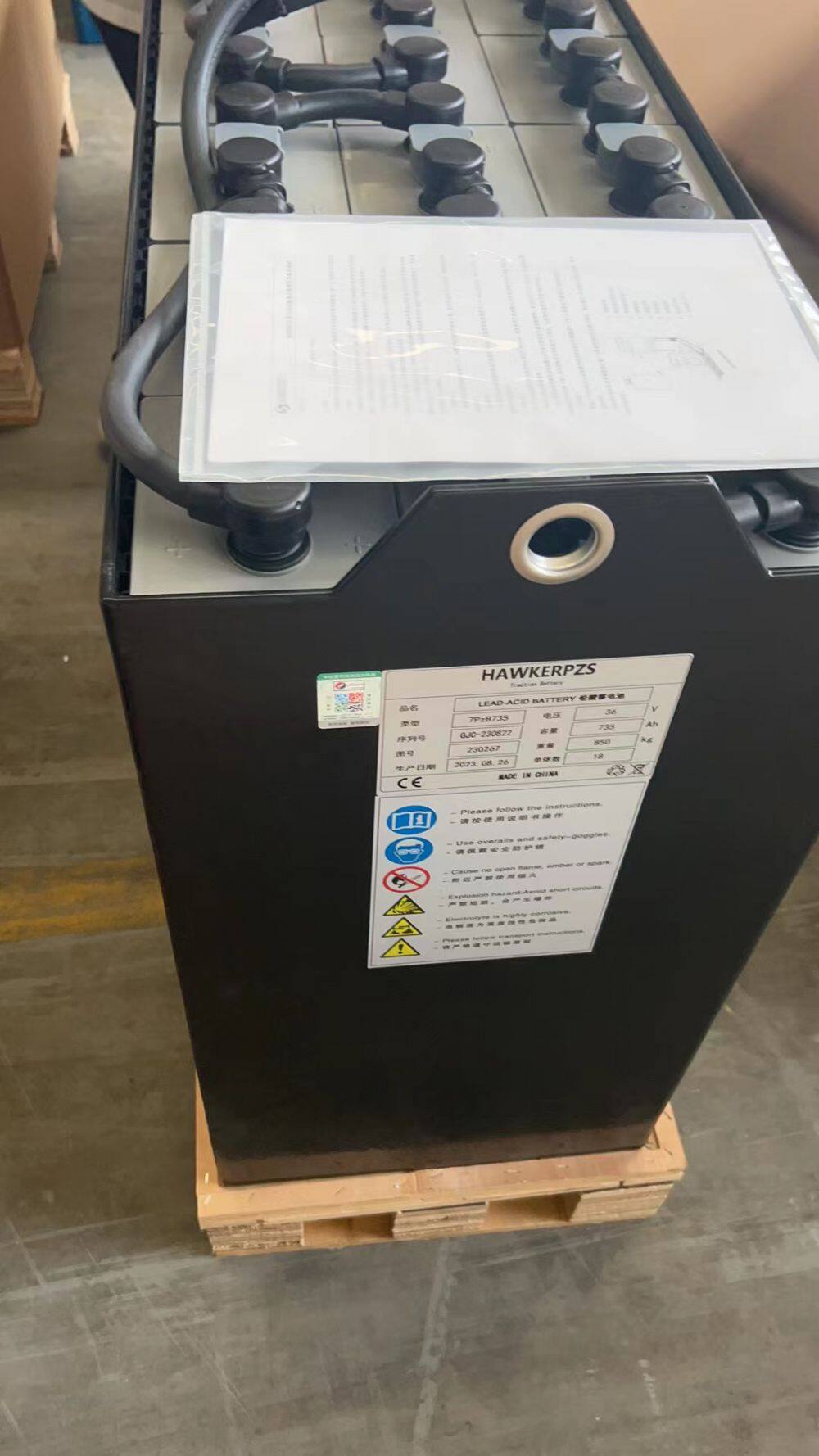

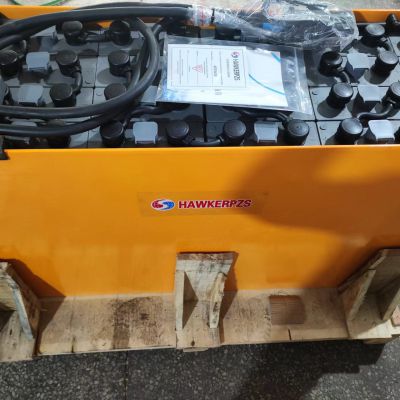

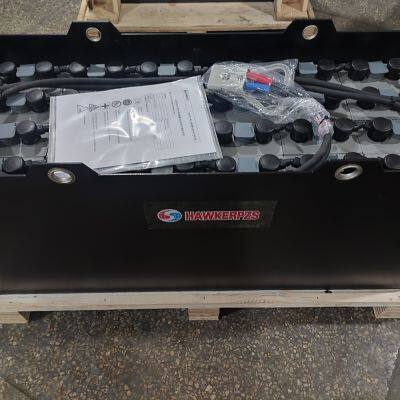

HAWKER Battery 5PZS575 48V575Ah Linde E16C Warranty for Two Years

HAWKER Lithium Battery Technology Agreement:

Charge protection: The maximum cell voltage is higher than 3.7V, automatically cut off the charge.

Discharge protection: The lowest single string voltage is lower than 2.7V, and the discharge is automatically cut off.

Overtemperature protection: When the internal temperature of the battery is higher than 65 ° C, the charge/discharge is automatically cut off.

Low temperature protection: When the internal temperature of the battery is lower than -5 ° C, the charge/discharge is automatically cut off.

Short circuit protection: based on the battery capacity.

Overcurrent protection: Based on the battery capacity.

SOC (Power calculation) : There is a real-time calculation of battery power, measurement error <5%.

Power indicator: There is a 5-stage power display.

Alarm LED light: normal or not, flashing indicates an alarm.

Communication: Standard MODbus protocol 485 interface, CAN interface.

Digital signal output: two dry contact signal output, the upper computer can be set output logic.

Analog signal output: analog output 0V ~ 5V, corresponding to SOC0 % ~ 100%.
