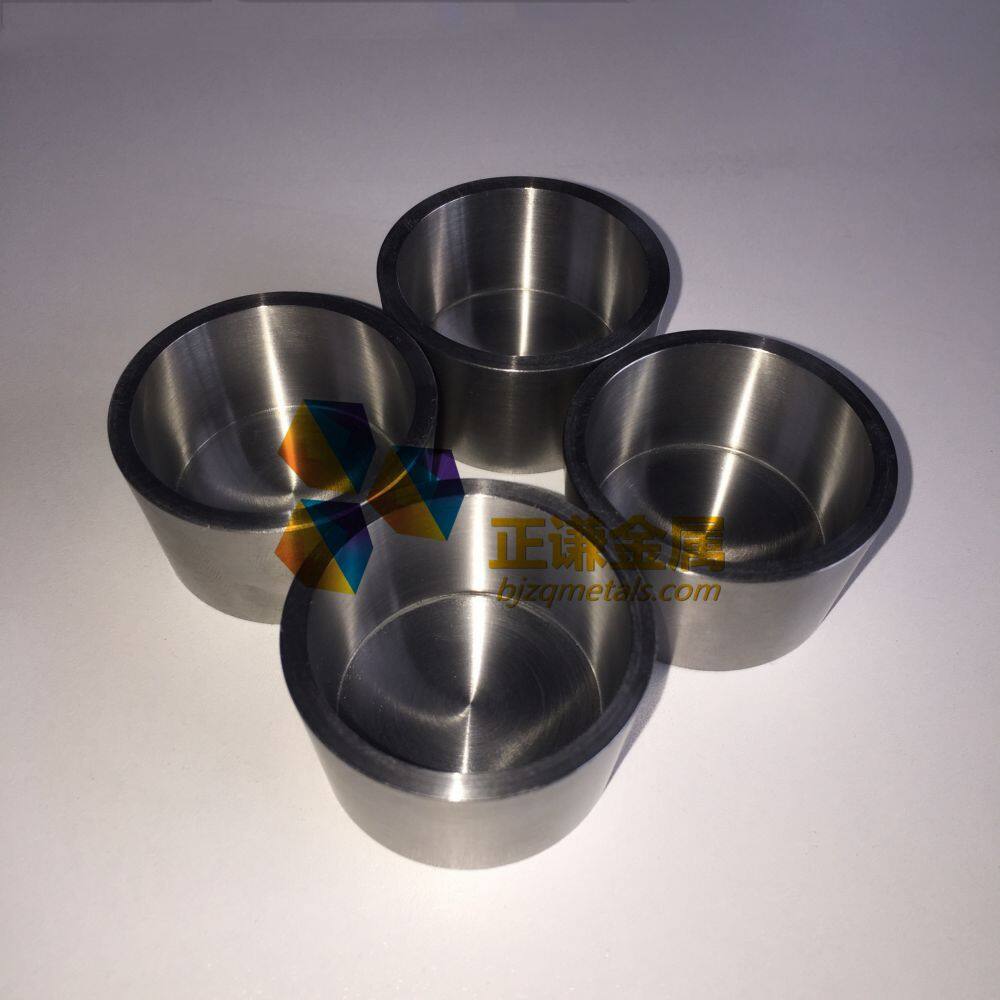

Molybdenum Crucible With High Quality and High Purity Is Customized for Heating and Melting in Vacuum Furnace.

FOB Price

US$ 65 - 105 / Kilogram

1 Kilogram(Min. Order)

Port Shanghai
Payment TermsT/T L/C Money Gram PayPal D/P Western Union Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Zhengqian metals		Place of Origin	China
Model Number	ZQ-015		Dimensions	Customized

Product Description

Specification of Molybdenum Crucible

	Density	Working temperature	Diameter	Cubage
Sintering molybdenum crucible	18.0-18.5g/cm3	1800-2600DC	100-500mm	0.4-100 litres
Forging molybdenum crucible	18.5-19.0g/cm3	1800-2600DC	18-150mm	2-500ML

Delivery condition	Specification		Tolerance		Thickness	Roughness
Delivery condition	Diameter	Height	Diameter	Height	mm	(um)
Sintering	10-500	10-750	+/-5.0	+/-5.0	8-20	<3.5
Sintering finishing	10-450	10-550	+/-5.0	+/-5.0	7-18	<2.5
Special sizes can be manufactured according to customers' requirements.

products description

Production

1. Raw material selection: High-purity molybdenum powder is selected as the raw material for cylinder production.

2. Powder compaction: Use a hydraulic press or other compaction methods to compact the molybdenum powder to form a cylindrical green body.

3. Sintering: The green body is then sintered in a high-temperature furnace under a controlled atmosphere to bond the molybdenum particles together and achieve the required density and strength.

4. Mechanical processing: After sintering, the molybdenum cylinder can be mechanically processed such as turning, milling or grinding to obtain the final size and surface finish.

5. Quality Control: Finished molybdenum cylinders undergo quality control measures to ensure they meet specifications for purity, density, size and mechanical properties.

6. Surface treatment (optional): Depending on the application, molybdenum cylinders can receive surface treatments such as polishing, coating, or heat treatment to enhance their performance and durability.

Application

1. High Temperature Furnace Components: Molybdenum cylinders are used in the construction of high temperature furnaces, they can withstand extremely high temperatures and provide structural support for heating elements and insulation materials.

2. Aerospace and Defense: Molybdenum cylinders are used in aerospace and defense applications, such as the construction of rocket engines, aircraft components, and missile systems, where high strength and heat resistance are critical.

3. Glass melting industry: Molybdenum cylinders are used in the glass industry to produce glass melting electrodes and other components used in the glass manufacturing process.

4. Semiconductor Manufacturing: Molybdenum cylinders are used in the semiconductor industry for applications such as ion implantation, sputtering targets, and other high-temperature processes.

5. Medical equipment: Molybdenum cylinders are used in the manufacturing of medical equipment, especially X-ray tube components and other medical equipment that require high temperature resistance and radiation resistance.

6. High-performance motorsports: Molybdenum cylinders are used in high-performance racing applications such as the construction of engine components and exhaust systems due to their high temperature resistance and lightweight properties.

Our factory

Baoji Zhengqian Nonferrous Metals Co. Ltd is located in the nonferrous metal processing base—Baoji City, Shaanxi Province, China. Our company is a comprehensive enterprise, and we have integrated the processing production and developing sales of the refractory metal and non-ferrous metal materials.

Advanced production technology and modern production equipment have been applied to professionally manufacture tungsten, molybdenum, tantalum, titanium, nickel and their alloyed materials and exquisite-manufactured parts , such as sheet, bar, pipe, foil, wire, target and crucible in various specifications. Our productions are widely used in many fields, for instance, aircraft industry, petrochemical industry, metallurgy, rare earth, coating, instrumentation, LED, electronic equipment, solar PV and medical equipment.

We have been insisted on “quality first, reputation first and faith first” for our business philosophy. And we have been providing better and better productions and service for our customers with all our hearts to get win-win cooperation and seek bilateral development.
