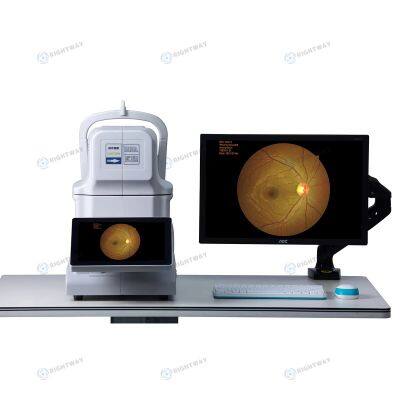

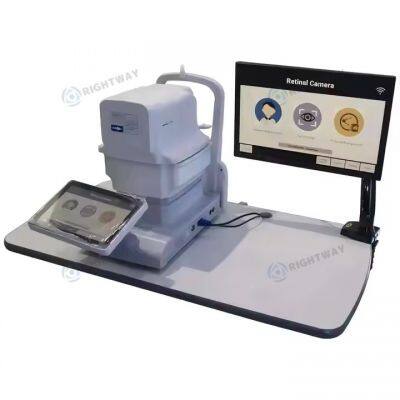

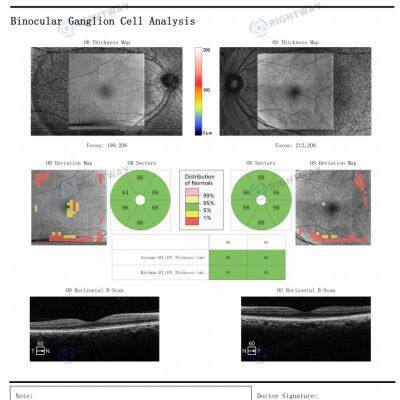

Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography

Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography photo-1
Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography photo-2
Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography photo-3
Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography photo-4
Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography photo-5
US$ 21000 - 25000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2011
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA
Delivery Detail:
Delivery time depends on order quantity.
Features:
1.Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
2.PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3.Easy Installation:No complex connection or setup. Compact body can fit in even small space.
Specifications
Methodology
Spectral domain OCT
Axial resolution
≤ 6 µm (in tissue)
Transverse resolution
≤ 20 µm (in tissue)
Scan depth
≥ 2.5 mm (in air)
Scan range
≥ 6 mm
Scan speed
≥ 24,000 A-scans/sec, up to 36,000 A-scans/sec
Scan modes
30, Raster, Circle
Fundus image
OCT en face
Focus adjustment
-150 to +150
Pupil diameter
≥ 3 mm
OCT light source
840 nm SLD
Optical power
750 µW (at cornea)
Operation
13.3’’touch screen, optional external mouse or keyboard
Power supply
100-240 V, 50/60 Hz
Dimensions
497 mm × 395 mm × 490 mm (L× W × H)
Weight
LED dot matrix
External fixtion
34 kg (75 lbs)
