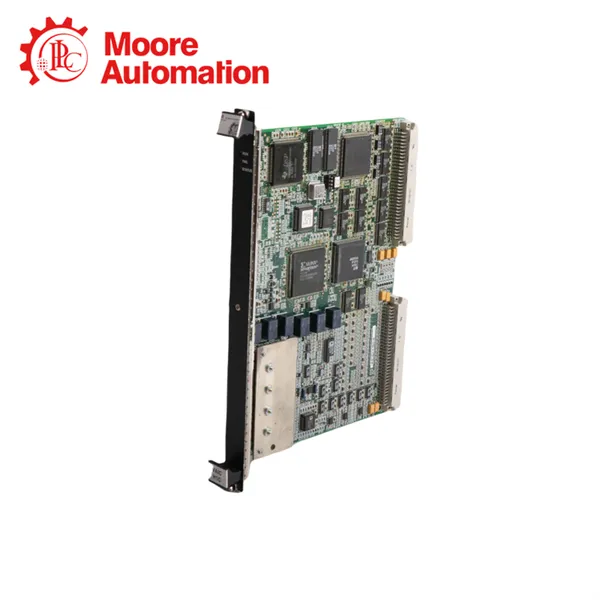

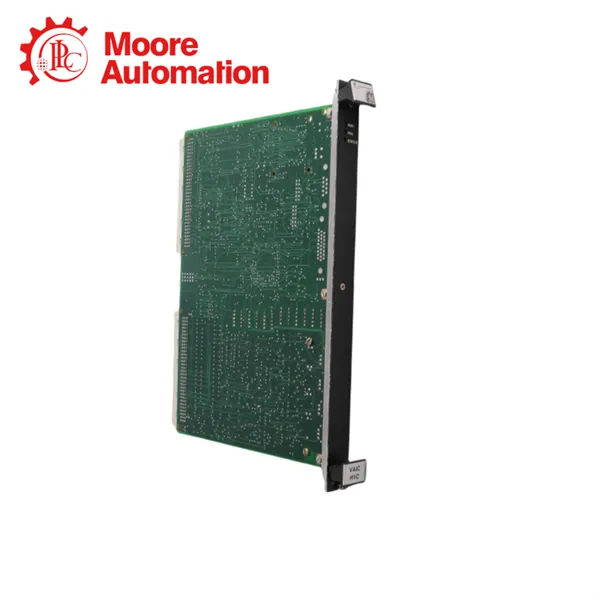

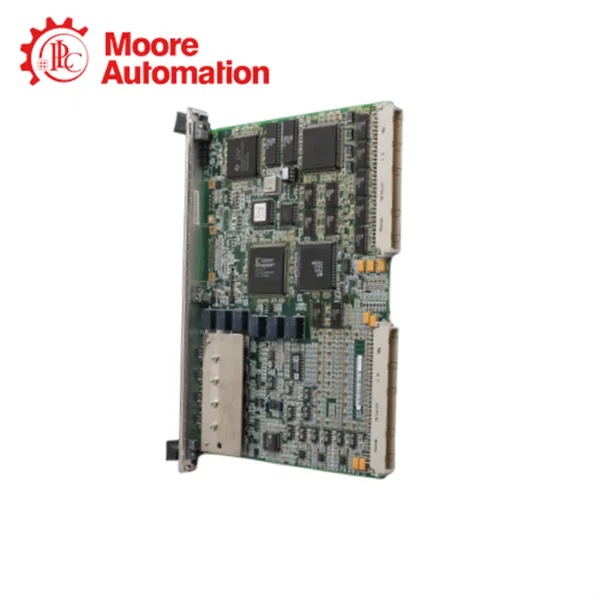

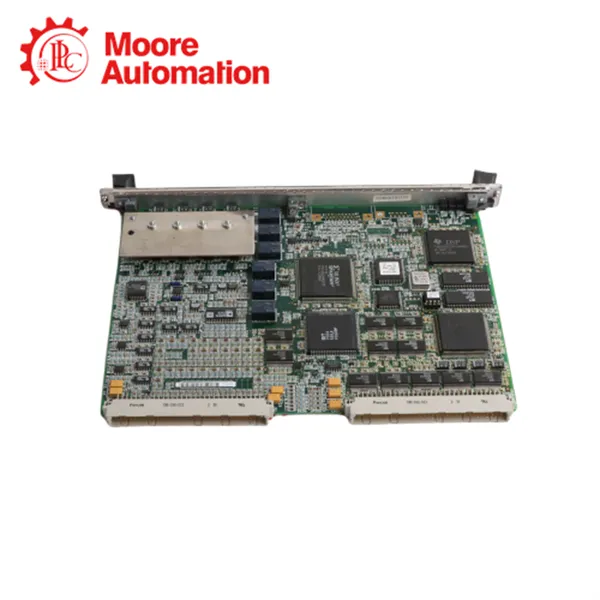

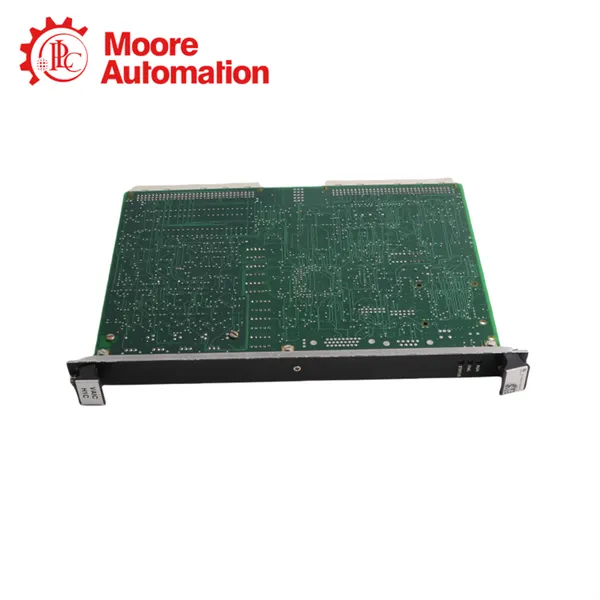

Help CenterGE IS200VAICH1CBA Analog Input/Output (VAIC) Board NEW
Related Products
-
GE UR6CH Reliable Industrial Control Module New and Original BoxNegotiableMOQ: 1 Piece -
GE UR6DH Digital I/O Module New and Original BoxNegotiableMOQ: 1 Piece
-
GE UR6UH Controller Module New and Original BoxNegotiableMOQ: 1 Piece
-
GE UR8CH CT/VT Module New and Original BoxNegotiableMOQ: 1 Piece
-
GE DS200RTBAG3AHC Relay Terminal Card New and Original BoxNegotiableMOQ: 1 Piece
|
IS200VAICH1CBA is an Analog Input/Output (VAIC) Board Manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic Gas Turbine Control Systems. The Analog Input/Output (VAIC) board accepts 20 analog inputs and controls 4 analog outputs. Each terminal board accepts 10 inputs and 2 outputs. Cables connect the terminal board to the VME rack where the VAIC processor board is located. VAIC converts the inputs to digital values and transfers them over the VME backplane to the VCMI board, and then to the controller. For outputs, the VAIC converts digital values to analog currents and drives these through the terminal board into the customer circuit. VAIC supports both simplex and triple modular redundant (TMR) applications. When used in a TMR configuration, input signals on the terminal board are fanned out to three VME board racks R, S, and T, each containing a VAIC. Output signals are driven with a proprietary circuit that creates the desired current using all three VAICs. In the event of a hardware failure, the bad VAIC is removed from the output and the remaining two boards continue to produce the correct current. When used in a simplex configuration, the terminal board provides input signals to a single VAIC, which provides all of the current for outputs. | |
Manufacturers: |
GE FANUC |
Part number: |
IS200VAICH1CBA |
Description: |
Analog Input/Output (VAIC) Board |
Original from: |
USA |
Part Type: |
New |
Customs Tariff: |
8537101190 |
Shipping from: |
Xiamen, Fujian |
MAQ: |
1 PC |
|
Series: Mark VI Number of Channels: 24 Input Span: 4-20 mA Input Impedance: 4-20 mA Input Converter Resolution: 16-bit A/D Converter Scan Time: 10 ms Output Converter: 12-bit Temperature Operating: 0 to 60°C Memory: 128 MB of flash memory Ethernet: 10BaseT/100BaseTX (RJ-45) Microprocessor: Intel Celeron 300 MHz Size: 26.04 cm high x 1.99 cm wide |
