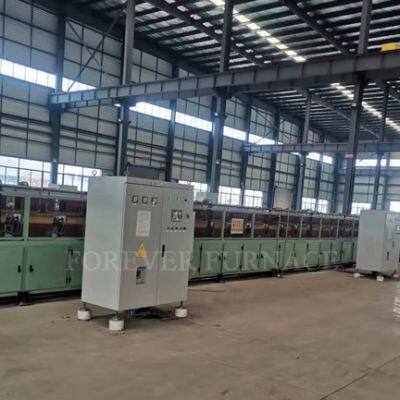

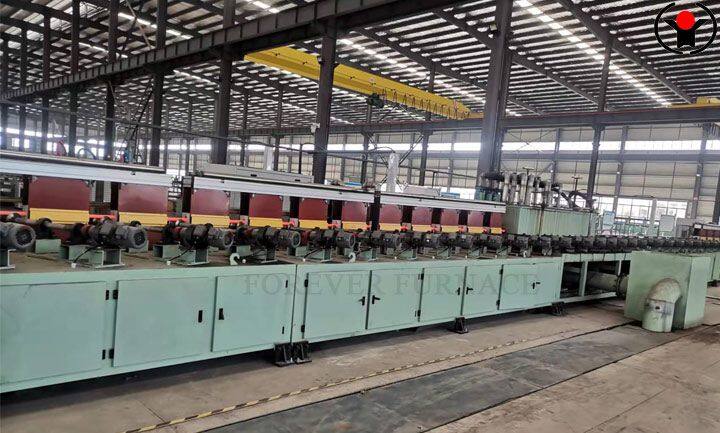

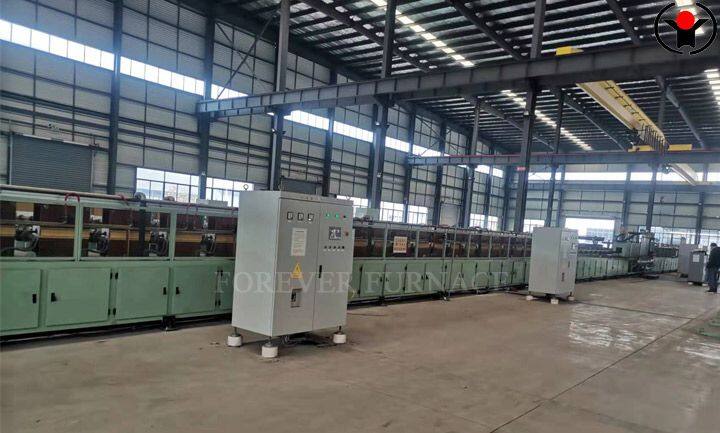

Long Bar Induction Hardening and Tempering Machine

It is suitable for heat treatment of metal workpieces such as steel rod and wind power anchor bolts.

【 Quenching power/frequency 】 【 Tempering power/frequency 】 160-1000KW/0.5-4KHz 100-600KW/0.5-2.5KHz

Production capacity: 0.5-3.5t/h

Scope of application: 20mm to 120mm

【 Main Application 】 Suitable for quenching and tempering heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.

The most effective conversion method is to use a high-temperature tempering method after heat transfer quenching, with a power consumption of 420-480 kWh per ton.

Composition of quenching and tempering furnace:

1. Loading mechanism, discharging mechanism

2. Input/output roller conveyor (the workpiece rotates while feeding at a uniform speed, and runs smoothly, with adjustable speed and more uniform heating)

3. Quenching Induction Heating System

4. Quenching spray system

5. Tempering induction heating system

6. PLC control panel (including variable frequency speed regulation and temperature control, Huayan industrial computer, remote start, etc.) 7. Quenching air-cooled induction heating power supply range: KGPS/GBT 250KW-1500KW8、 Tempering air-cooled induction heating power supply range: KGPS/IGBT 250KW0-850KW
