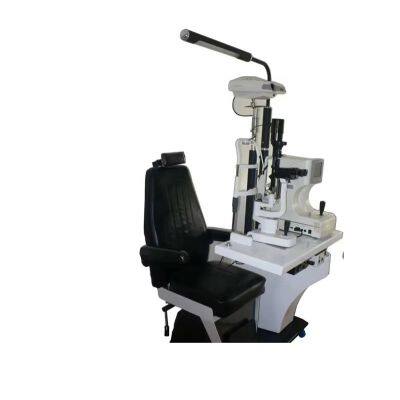

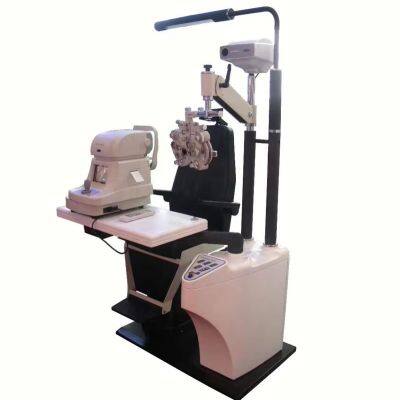

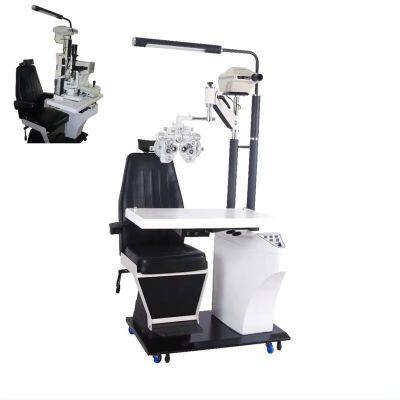

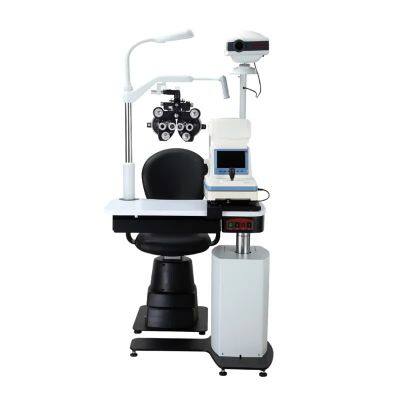

PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment

Rightway Optical Co.,Ltd

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment thumbnail-1$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment thumbnail-2$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment thumbnail-3$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment thumbnail-4$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment thumbnail-5$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment photo-1$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment photo-2$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment photo-3$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment photo-4$

$PK-199A Ophthalmic Refraction Chair Unit Optometry Table Combined Set for New Optical Shops Complete Equipment photo-5$

US$ 4900 - 5100 MOQ: 1 Piece

Key Specifications

Business Type:

Manufacturer

Year Established:

2002

Annual Export Value:

US$1 Million - US$1.5 Million

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Vertexdistance	0mm,12mm,13.75mm
Spherical	-20 to +20D(VD=12) 0.12/0.25D step
Cylinder	-8 to +8D 0.125D step
Axis	0° to 180° (1°step)
Cylinder form	-,+,±
Pupil distance	45 to 88mm,1mm step
Min Pupil Size	ø2.0mm
Radius of curvature	5.0 to 10mm (increment: 0.01mm)
Corneal power	33.75 to 67.50D (when corner equivalent refractive index is 1.337)(increment selectable from 0.12, 0.25D)
Corneal astigmatism	0.0 to 8.00D (increment selectable from 0.12,0.25D)
Axis	1 to 180° (increment:1°)
Corneal diameter	2.0 to 14.0mm (increment: 0.1mm)
Memory of data	10 measure value for each right and left eye
Chart	Auto fog
Print	Thermal printer
Power supply	220V -110V (50/60Hz)
Dimensions	469mm308mm522mm
Weight	15.5kg

Spherical power (spectacle lens)	-25 m-1~+25 m-1
Cylindrical power	-9.99 m-1~+9.99 m-1
Progressive ADD power	-9.99 m-1~+9.99 m-1
Spherical power (contact lens)	-20 m-1~+20 m-1
Vertex power step measurement	0.01 m-1, 0.06 m-1, 0.12 m-1, 0.25 m-1
Cylindrical lens astigmatism axis angle measurement scope	0°~180° , step 1°
Prism base angle measurement scope	0°~360° step 1°
Prism degree measurement scope	horizontal 0~20, step 0.01, Vertical 0~20, step 0.01
Measurable lens diameter	φ10mm~φ100mm
Measurable lens center thickness	≤20mm
Lens PD measurement scope	40mm~82mm step 0.25mm
Lens PH differencPH measurement scope	0mm~50mm , step 0.25mm
Measurable lens frame leg length	0mm~160mm
Measurable anti-uv transmittance rate	0~100% step 1%
Main Engine Power Supply	direct current12V,45W
Screen	800x480 color screen, full screen touchable
Printer	thermal printing, printing paper width 57mm

Sphere Power	Range	+16.75 to -19.00 diopters
	Step	0.25 diopters
	Range	0.00 to -6.00 diopters(0.00 to -8.00 diopters with additional lens of -2.00 diopters)
Cylinder Power	Step	0.25 diopters
Cylinder Axis	0 to 180°, 5°step
Cross Cylinder	±0.25 diopters
Rotary Prisms	0 to 20, 1 step
	(O)-Open aperture (two positions)
	(R)-Retinoscopic lens, +1.50D
	(P)-Polarizing lens 45-left eye, 135-right eye
	(WMV) or (RMV)-Maddox rod, vertical white-left eye red-right
	(WMV) or (RMV)-Maddox rod, horizontal white-left eye red-right
Auxiliary Lens Dial	(RL)-Red lens
	(+.12)-+0.12D sphere
	(PH)-Pin hole
	(10 L) or (6 U)-10 base-in-left eye
	6 base-up-right eye
	(Dissociating prisms)(±.50)-±0.50 fixed cross cylinder
	(OC)-Occluder
PD Adjustment	48~75MM, 1MM steps
Standard Accessory Lenses	wo-.12D and -2.00 cylinder lenses, two plano lenses for sealing front opening
Standard Accessories	1 near point card with holder and reading rod, dust cover, face shield, accessory case for lenses
Dimensions	400350160MM
Net Weight	4.38 KGS

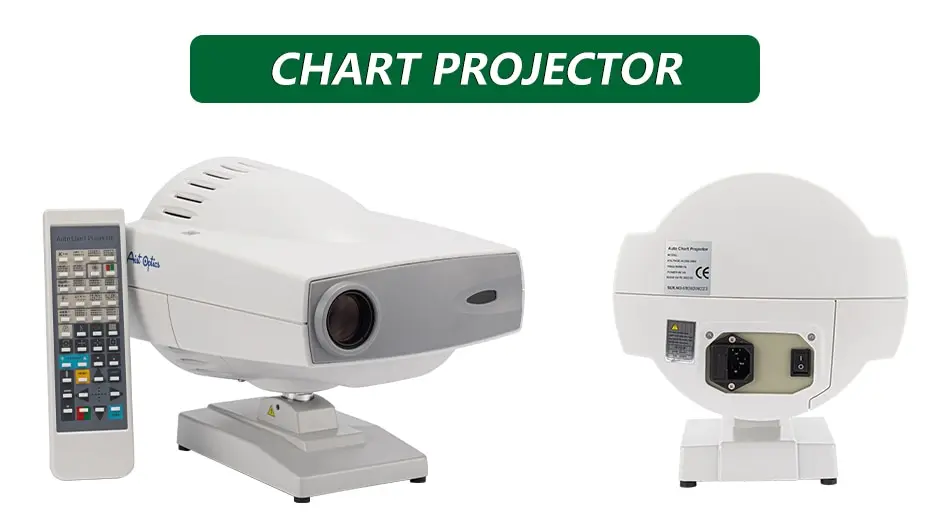

Model	ACP-1800A/B/C	ACP-1800LA/LB/LC
Projection Distance	1.5m~6m
Projection Magnification	30x (at 5m)
Projection Size	330mm (w) x 270mm (H) (at 5m)
Chart	30 different pattern
Speed of chart conversion	One chart per 0.03s
Mask	1 open, 5 horizontal different lines, 8 vertical lines, 21 single letters, 1 red/green
Speed of mask conversion	One mask per 0.03s
Program	2 sets programs, each program contains up to 30 steps
Light source	12V, 50W Halogen Lamp	LED lamp
Auto-off function	After 10 minutes idle time
Power source	AC 220V, 50HZ 0r 110V, 60Hz
Power consumption	80W	40W
Accessories	Remote control, polarized metal screen, halogen lamp, polarized glasses, fuses (2), batteries (2)	Roommate control, Polarized metal screen, polarized glasses, fuses (2), batteries
